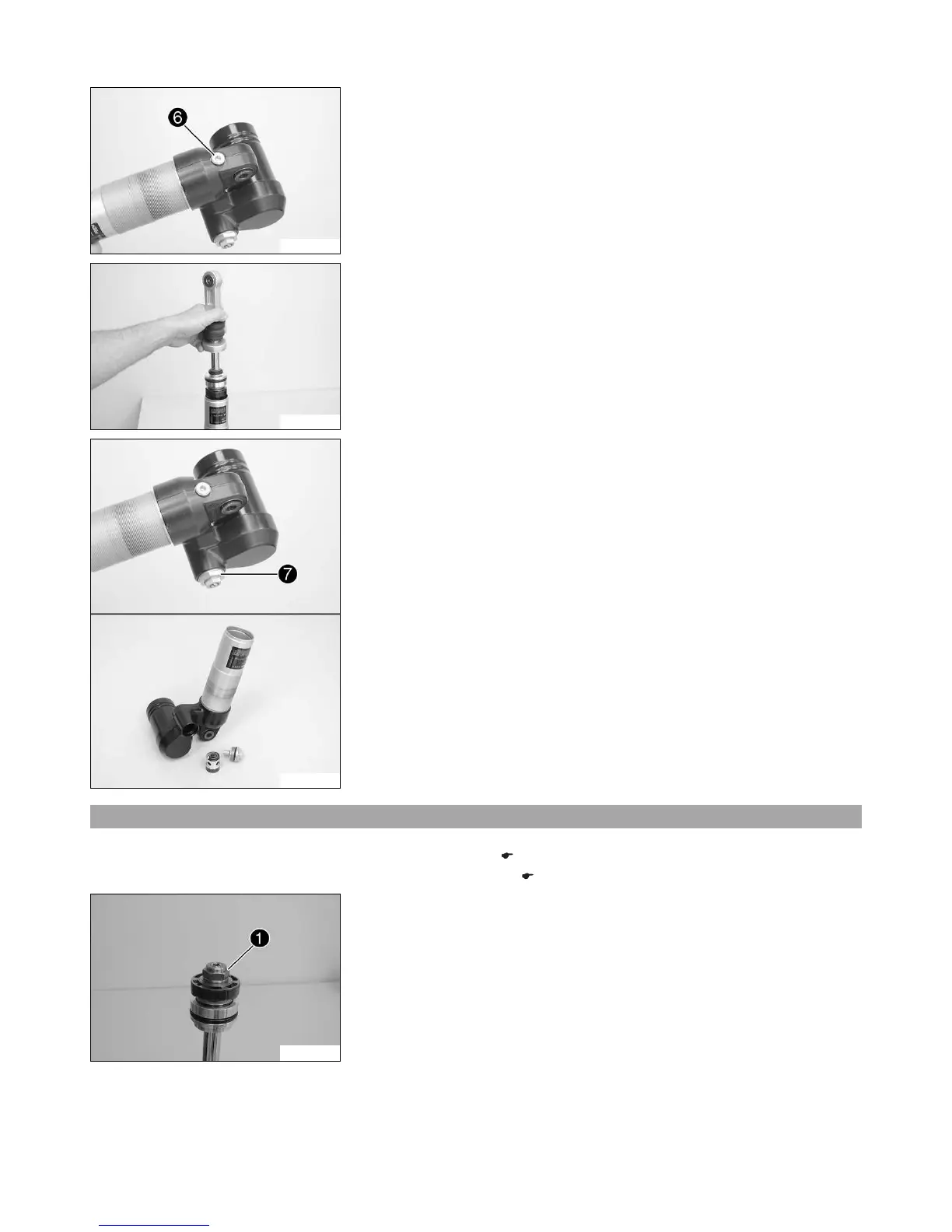

9 SHOCK ABSORBER, SWINGARM 44

201277-10

– Remove screw 6. Drain the oil.

201278-10

– Remove the piston rod. Drain the remaining oil.

201279-10

– Remove compression adjuster 7. Remove the spring, sleeve, and piston.

9.14 Disassembling the piston rod

Preparatory work

– Remove the spring. ( p. 43)

– Dismantle the damper. ( p. 43)

300540-10

Main work

– Clamp the piston rod with the heim joint in a vise.

– Remove nut 1.
