17 ENGINE 121

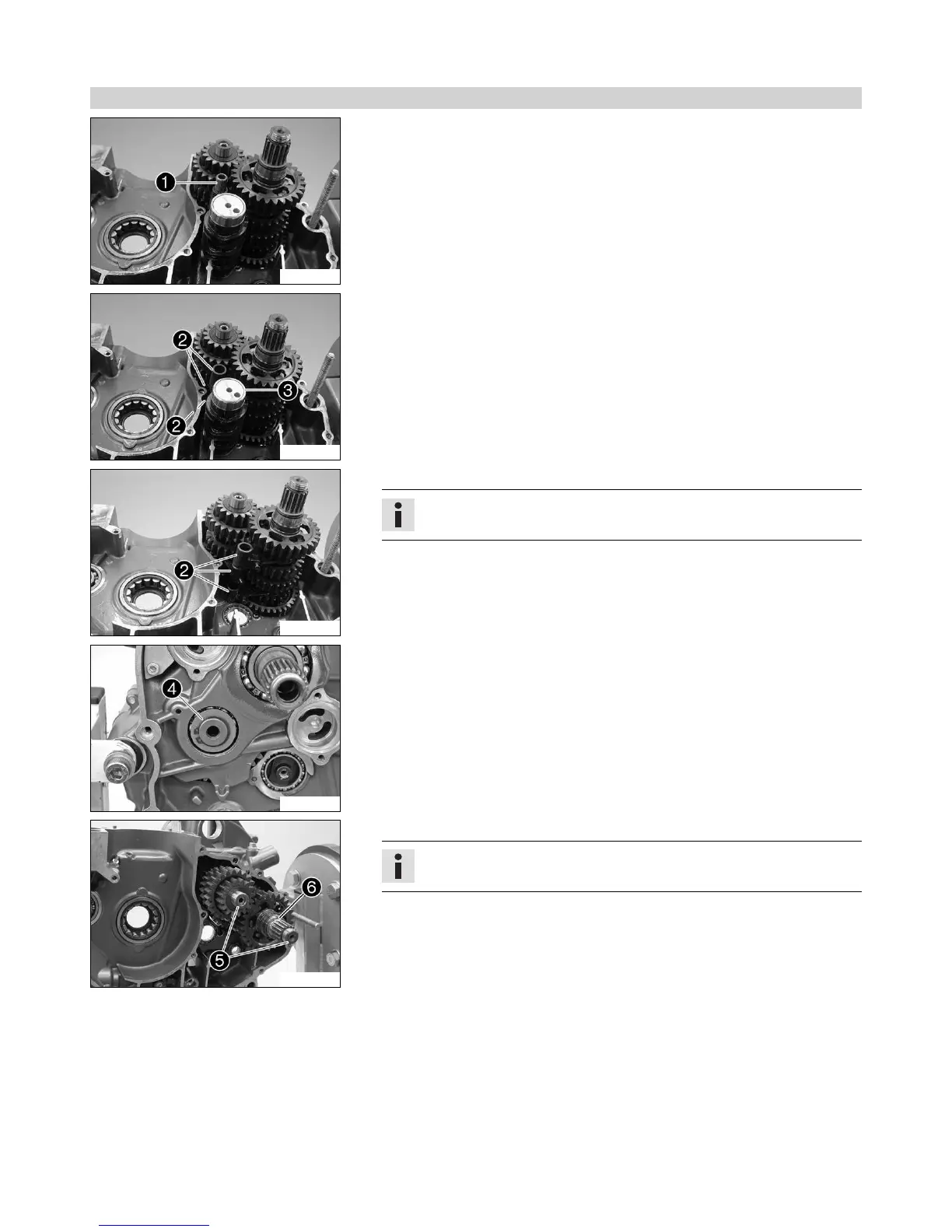

17.3.32 Removing transmission shafts
300079-10
– Remove the shift rail 1.
300080-10
– Swing shift forks 2 to one side.
– Remove shift drum 3.
300081-10
– Remove shift forks 2.
Info
Ensure that the pins remain in place.
300082-10
– Remove the lock ring 4 and the stop disk.
300083-10
– Pull both transmission shafts 5 out of the bearing seats together.
Info
The stop disk of the countershaft usually sticks to the bearing.
– Take the O-ring off the countershaft 6.
