15 BRAKE SYSTEM 95

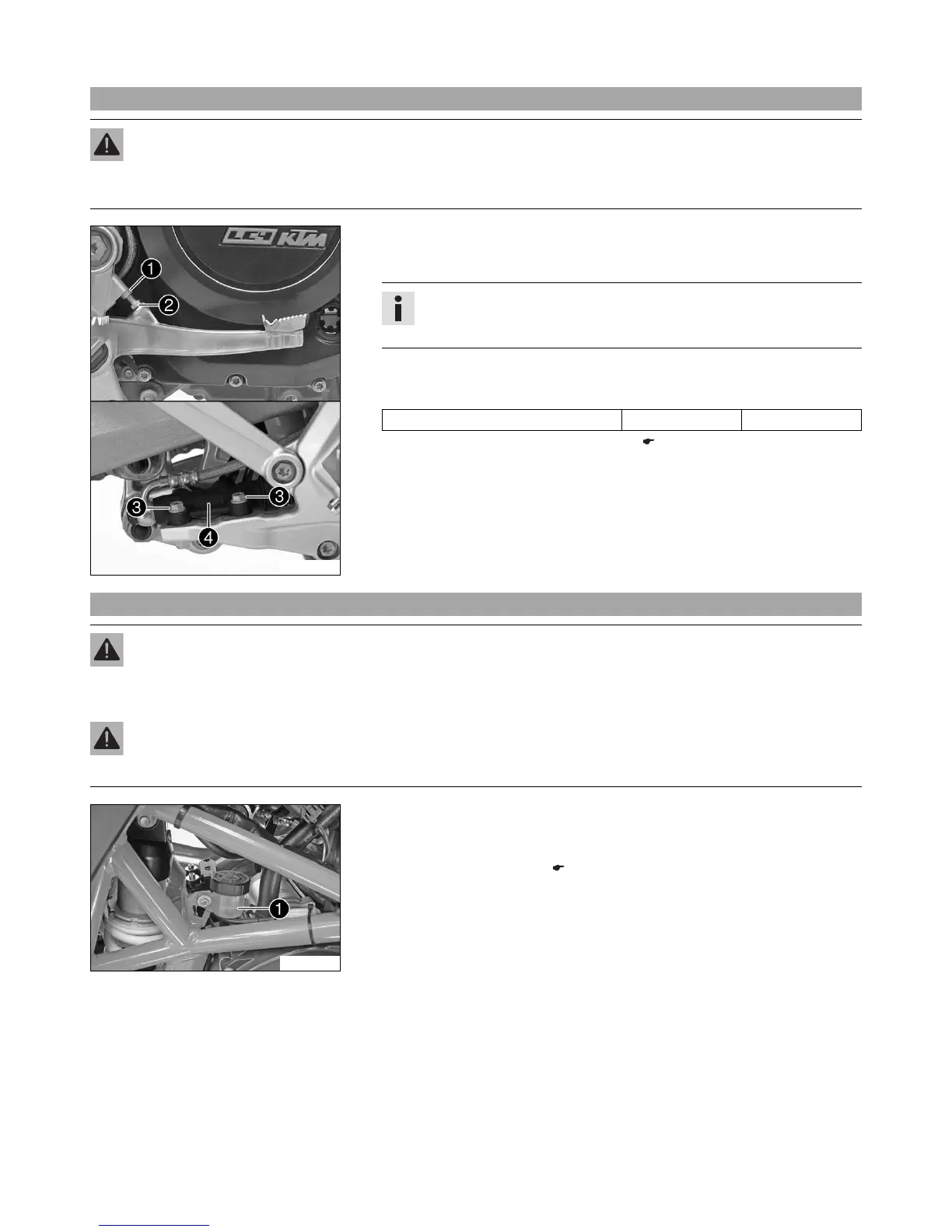

15.11 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
B01291-10
– Loosen fitting 3 on foot brake cylinder 4.
– To adjust the basic position of the foot brake lever individually, loosen nut 1 and
turn screw 2 accordingly.
Info
The range of adjustment is limited. The screw must be screwed into the
footrest bracket by at least four turns.
– Position foot brake cylinder 4 so that the foot brake lever has the necessary free
travel. Hold screws 3 in place and tighten the nuts.
Guideline
Screw connection, foot brake cylinder M6 10 Nm (7.4 lbf ft)
– Check the free travel of the foot brake lever. ( p. 94)
– Tighten nut 1.
15.12 Checking rear brake fluid level
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Check the brake system and do not continue riding.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule.
101058-10
– Stand the vehicle upright.
– Check the brake fluid level in the brake fluid reservoir.
» If the fluid level reaches the MIN marking 1:
– Add rear brake fluid. ( p. 96)
