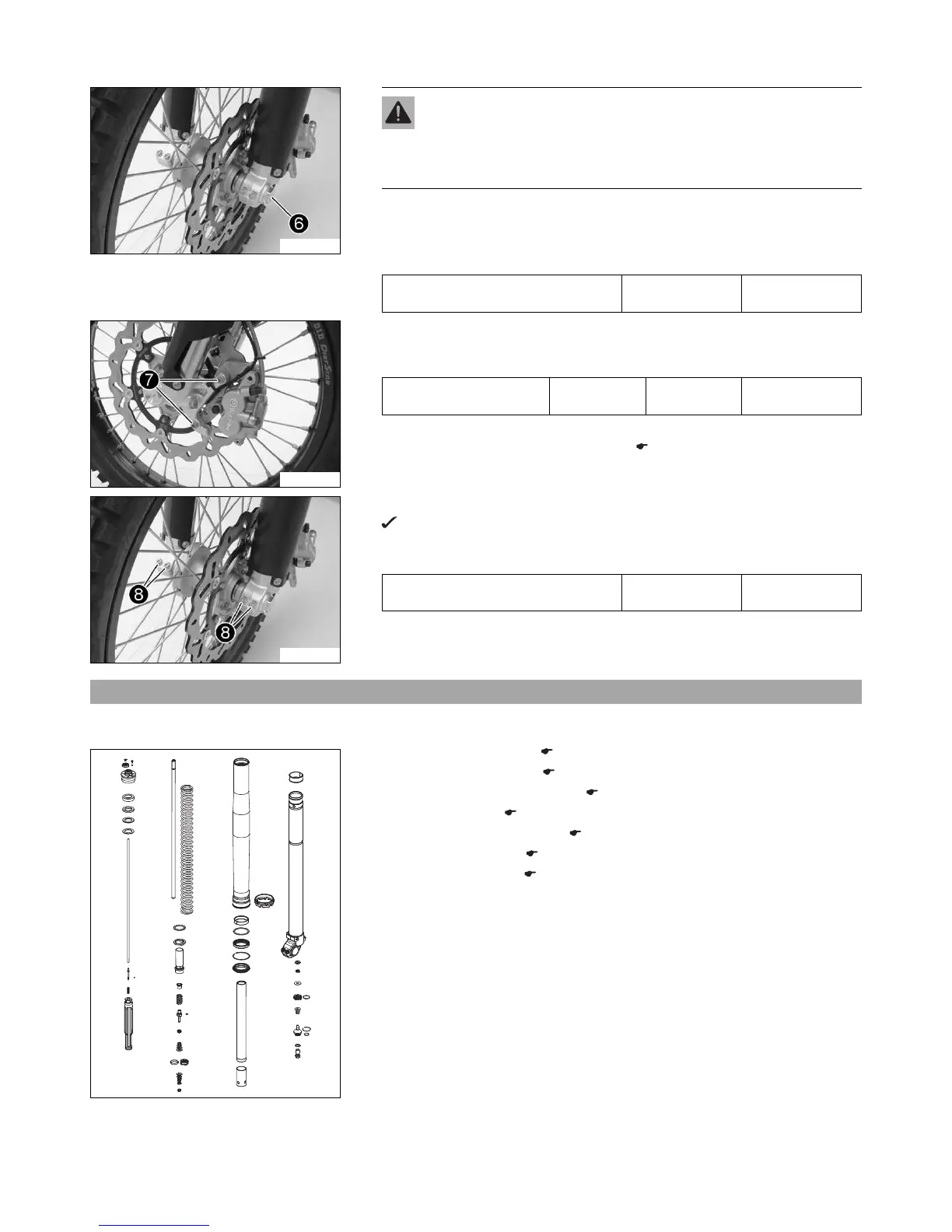

6 FORK, TRIPLE CLAMP 17
202023-11
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the
brake discs.
– Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
– Clean screw 6 and the wheel spindle.
– Lift the front wheel into the fork, position it, and insert the wheel spindle.
– Mount and tighten screw 6.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm
(33.2 lbf ft)
202022-11
– Position the brake caliper and check that the brake linings are seated correctly.
– Mount and tighten screws 7.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Release the rear of the vehicle.
– Remove the motorcycle from the lift stand. ( p. 10)
202023-12
– Pull the front brake and compress the fork forcefully a few times.
This aligns the fork legs.
– Tighten screws 8.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
6.9 Servicing the fork
Condition
The fork legs have been removed.
201488-01
– Disassemble the fork legs. ( p. 18)
– Disassemble the cartridge. ( p. 21)
– Disassemble the tap compression. ( p. 22)
– Check the fork legs. ( p. 23)
– Assemble the tap compression. ( p. 24)
– Assemble the cartridge. ( p. 25)
– Assemble the fork legs. ( p. 27)
