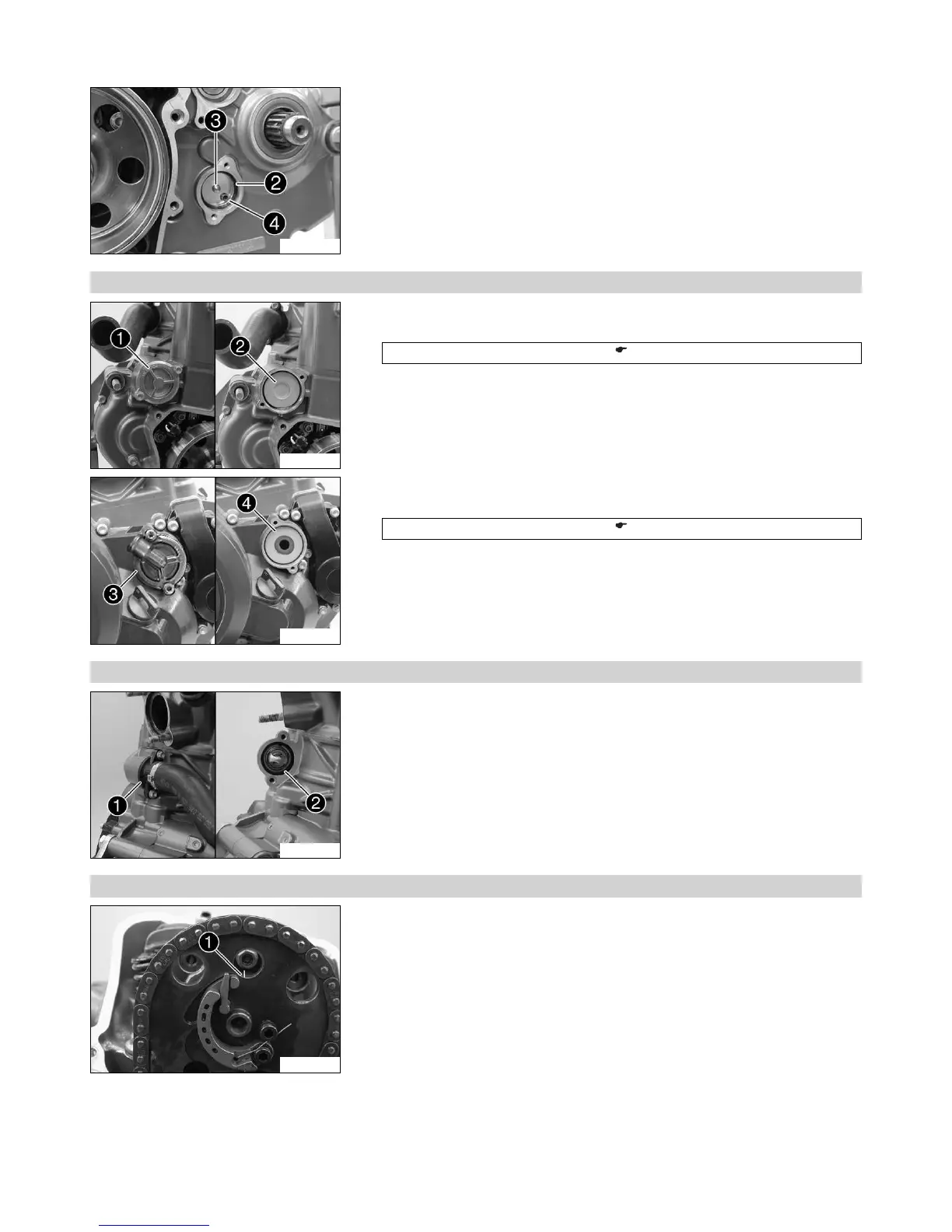

17 ENGINE 112
300007-10
– Remove O-ring 2.
– Remove contact pin 3 and the contact springs 4.
17.3.8 Removing oil filter
300009-10
– Remove screws. Remove the oil filter cover 1 with the O-ring.
– Pull oil filter 2 out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 215)
306801-10
– Remove screws. Remove the oil filter cover 3 with the O-ring.
– Pull oil filter 4 out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 215)
17.3.9 Removing thermostat
300010-10
– Remove screws. Take off the thermostat case 1 with the radiator hose.
– Pull out the thermostat 2.
17.3.10 Setting engine to ignition top dead center
300023-10
– Turn the crankshaft counterclockwise until markings 1 of the camshafts are flush
with the marks of the camshaft support plate.
