6 CHANGING THE LOCKING CYLINDER
14

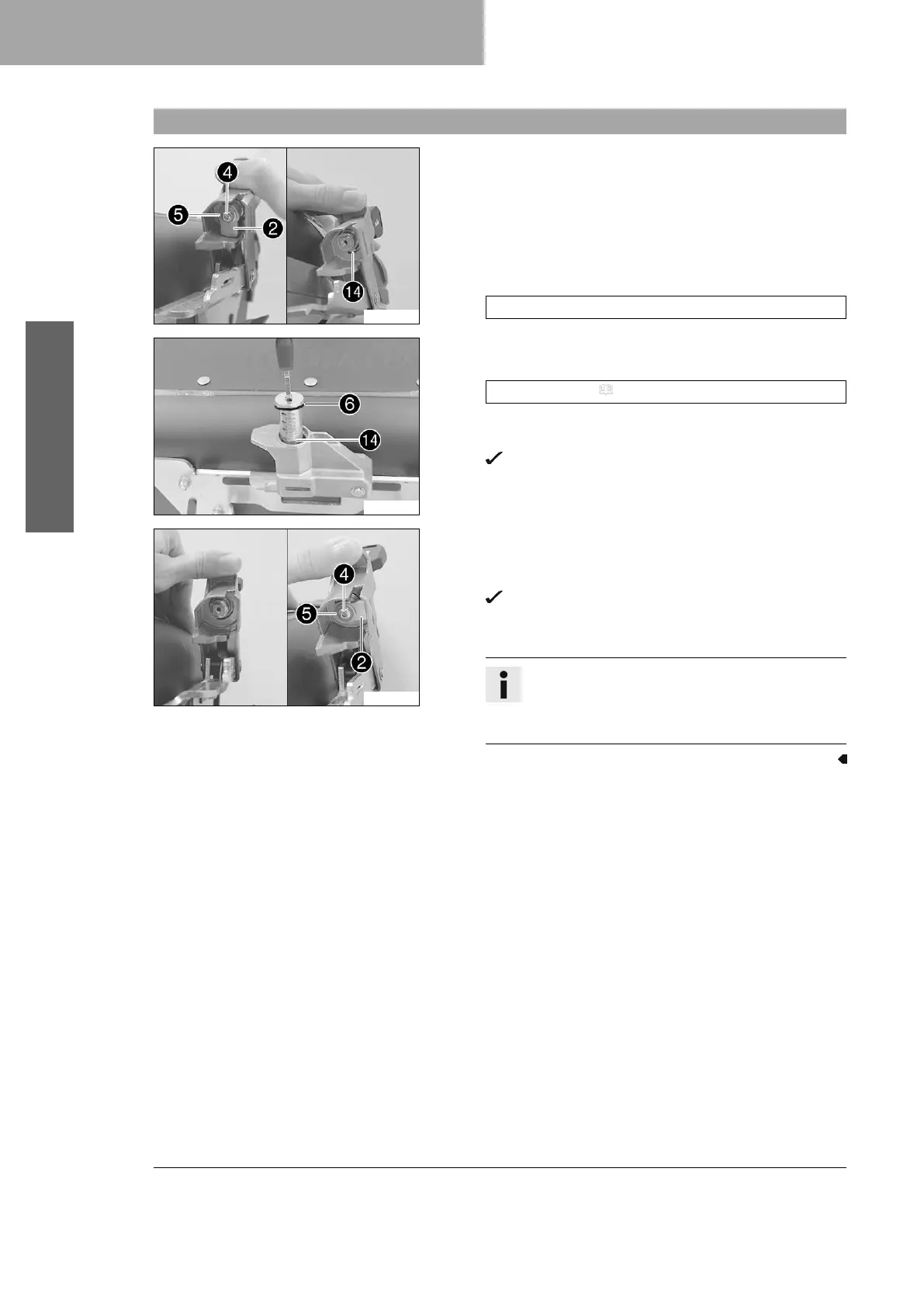

6.1 Changing the locking cylinder
500659-01
Removing the locking cylinder
– Key position 90° to the left.
– Pull up the locking lever.
–
Remove screw
4
with washer
5
and locking plate
2
.
–
Push engaging plate
bo
into the locking cylinder.
– Remove the locking cylinder.
Guideline
The ignition key remains in the locking cylinder.
500646-01
Installing the locking cylinder
–
Grease and mount the O-ring
6
(included).
Long-life grease ( p. 17)
– Position and insert the locking cylinder as shown (engaging
plate
bo
must be facing downward).
Engaging plate
bo
engages.
500647-01
– Pull up the locking lever.
–
Position locking plate
2
(included) on the locking cylin-
der as shown.
The plate faces to the right.
–
Mount and tighten screw
4
with washer
5
(both inclu-
ded).
Info
The locking plate with notch
3
(included) is nee-
ded for the cover’s optional lock installation, see
Section 7
