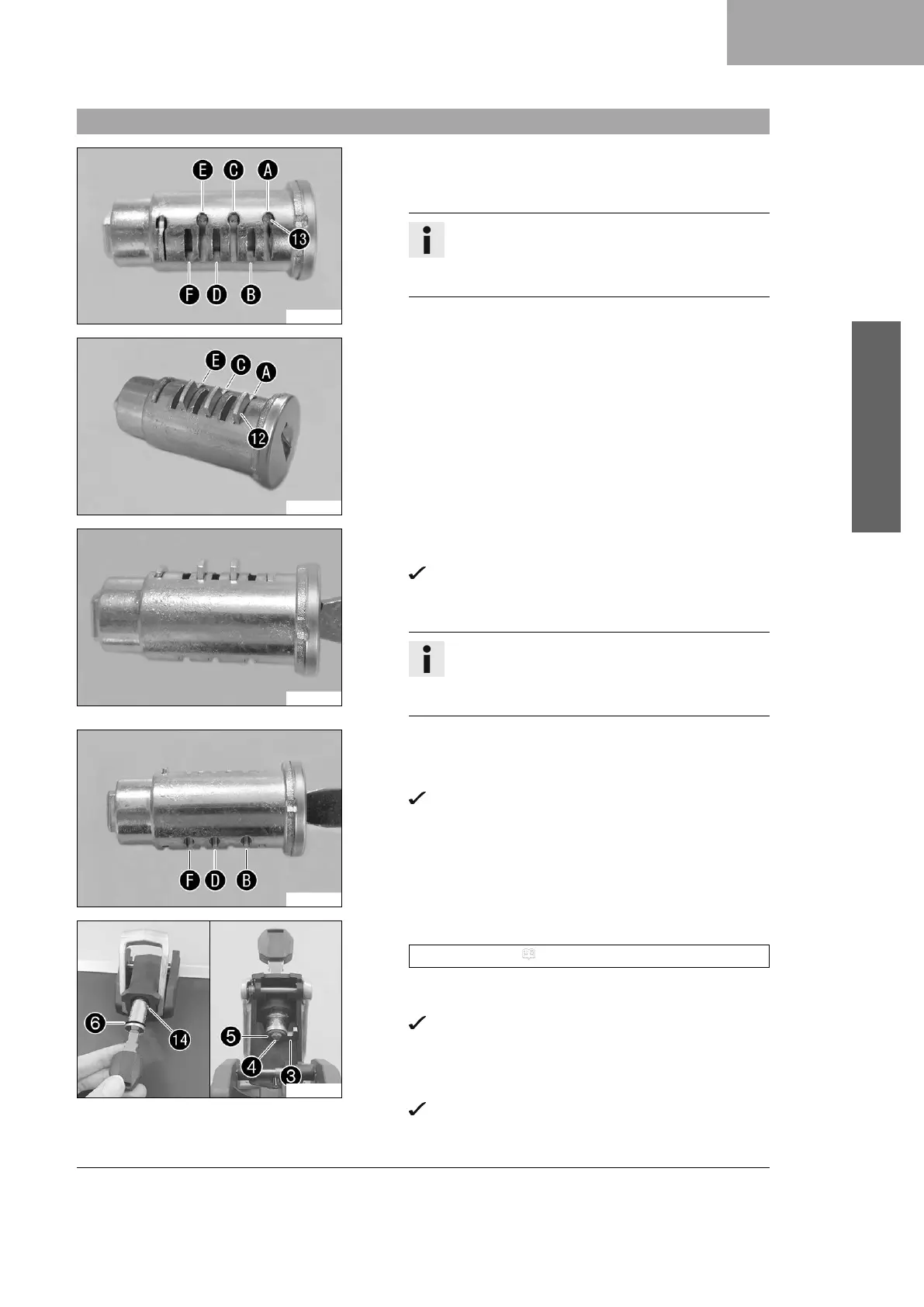

7.1 Optional locking cylinder for the cover lock
500644-01
Installing the locking cylinder
–
Insert springs
bn
(included) into chambers
A
,
C
, and
E
.
Info
The kit contains many small parts. It is recommen-
ded that you perform the assembly while seated at
a table.
500645-01
–
Insert tumblers
bm
(included) with the number 1 into
chambers
A
,
C
, and
E
.
500517-01
– Insert the ignition key and check whether the tumblers
with number 1 are correct.
All tumblers close flush with the locking cylinder.
– Replace the non-matching tumblers with ones that have
the matching number.
Tip
It is recommended that you note the numbers of
the matching tumblers so that the subsequent
locking cylinders can be equipped immediately.
500518-01
–
Repeat the steps for chambers
B
,
D
, and
F
until the
first six chambers are fitted with the correct tumblers.
– Insert the ignition key.
All tumblers close flush with the locking cylinder.
500660-01
–
Grease and mount O-ring
6
(included).
Long-life grease ( p. 17)
–
Position and insert the locking cylinder as shown (engaging
plate
bo
must point to the right).
Engaging plate
bo
engages.
– Pull up the locking device.
–
Position locking plate
3
(included with the topcase) on
the locking cylinder as shown.
The plate faces to the right and the opening to the
front.
