3-POINT HITCH & DRAWBAR48
BTelescopic Stabilizers
[B2650/B3350 only]

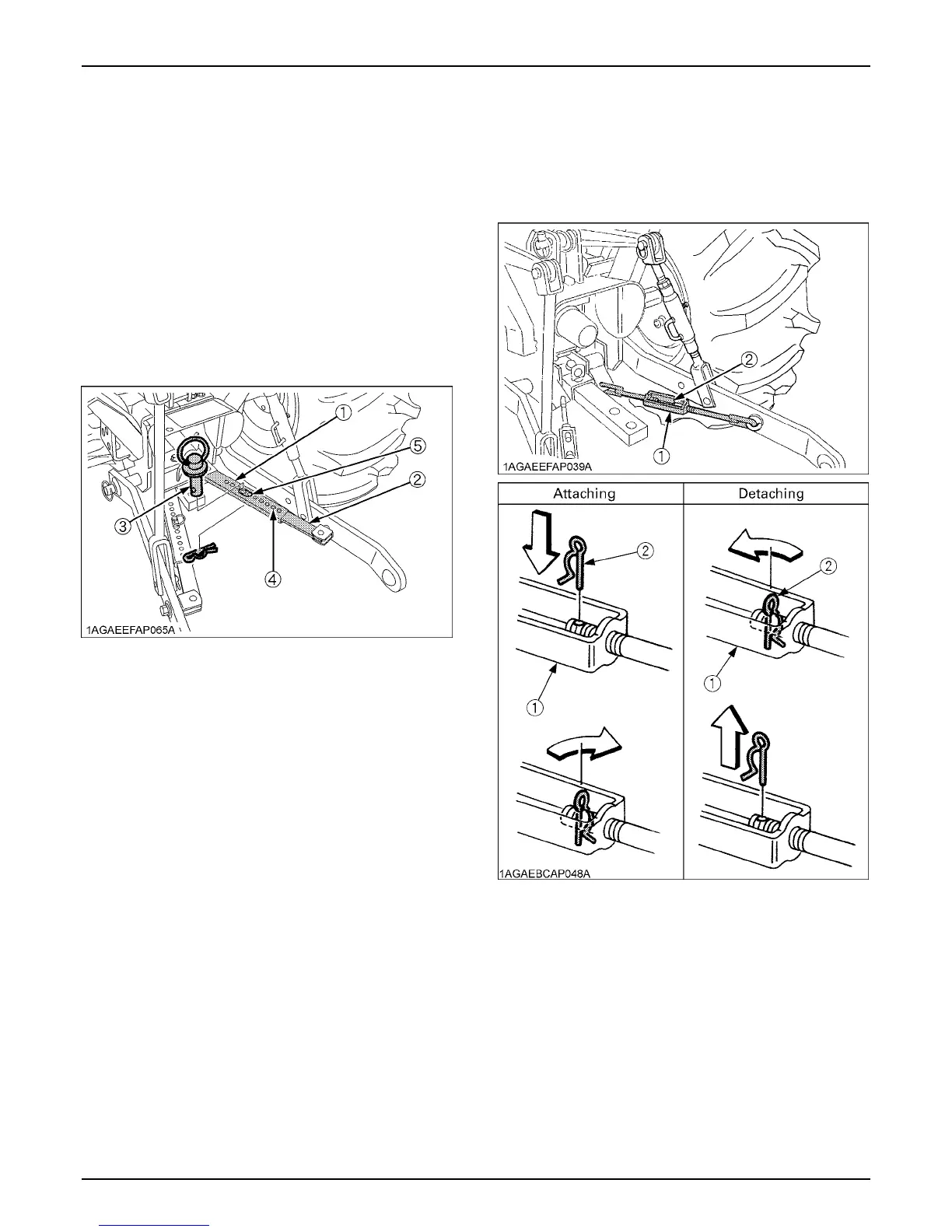

Adjust the telescopic stabilizers to control horizontal sway
of the implement. Select the proper set of holes by
referring to the "Hydraulic Control Unit Use Reference
Chart" in "AUXILIARY HYDRAULICS" in "HYDRAULIC
UNIT" section.
After aligning satisfactorily, insert the set-pin through any
one of the 8 holes on the outer tube that align with one of
the holes on the inner bar, both stabilizers will be locked.
If the set-pin is inserted through the slot to engage one of
the holes on the inner bar, a limited degree of sway will be
permitted.
BCheck Chains
[B3350SU only]
Remove the snap pin and adjust the turnbuckle to control
horizontal sway of the implement.
After adjustment, re-set the snap pin.
(1) Outer tube
(2) Inner bar
(3) Set-pin
(4) Hole
(5) Slot
(1) Turnbuckle
(2) Snap pin
