51HYDRAULIC UNIT
B3-point Hitch Lowering Speed
To avoid personal injury or death:
A Fast lowering speed may cause damage or
injury. Lowering speed of implement should be
adjusted to 2 or more seconds.
The lowering speed of the 3-point hitch can be controlled
by adjusting the 3-point hitch lowering speed knob.
AUXILIARY HYDRAULICS
Hydraulic outlet (rear) is provided on the tractor.
BHydraulic Block Type Outlet
Hydraulic block type outlet is useful when adding
hydraulically operated equipment such as front end
loader, front blade, etc.
When an implement is attached
1. Remove the block cover.
2. Attach the block outlet cover. (option)
[Rear outlet]
Hydraulic outlets are provided on the tractor.

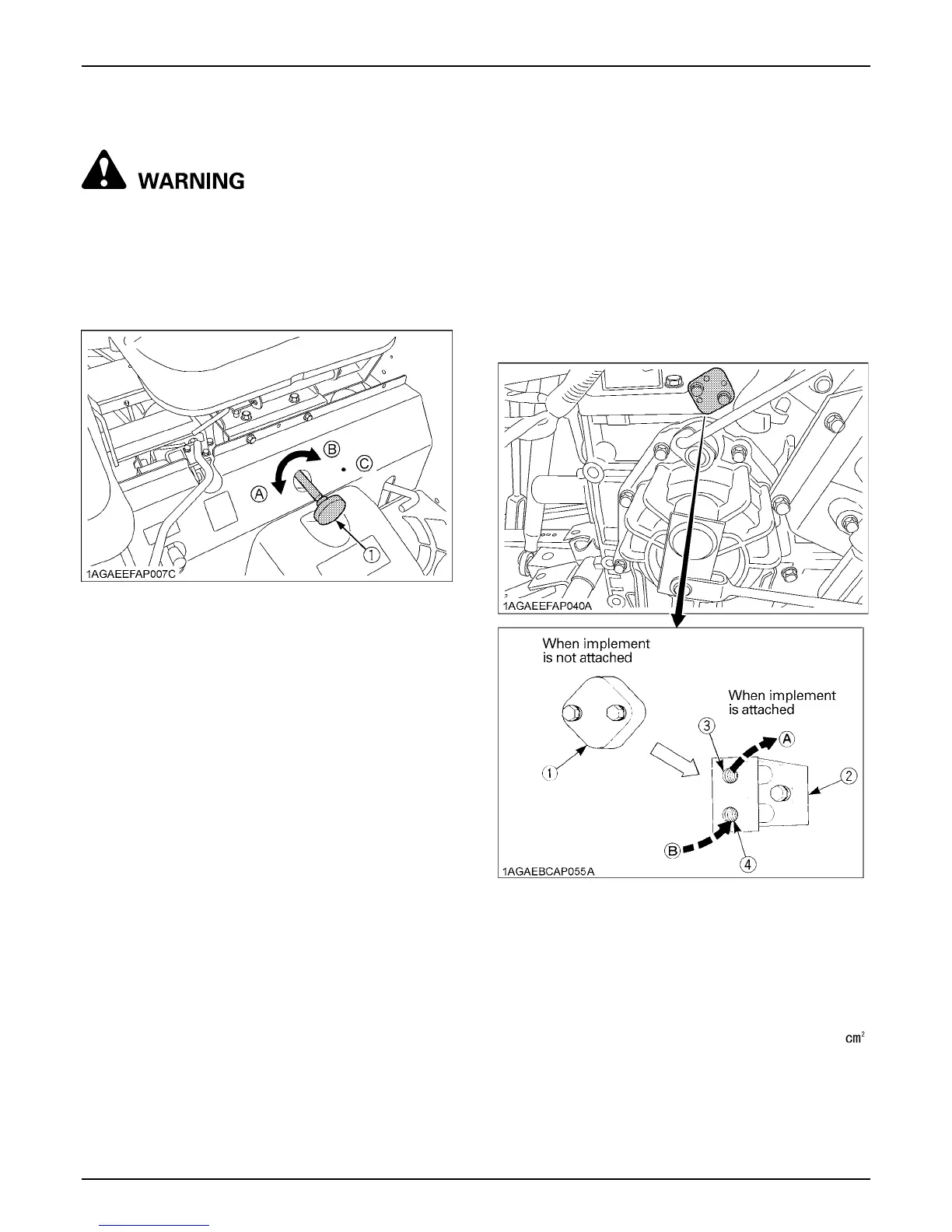

(1) 3-Point hitch lowering speed knob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
(1) Block cover
(2) Block outlet cover (option)
(3) Outlet
(4) Inlet
(A) To implement inlet
Max. flow
[B2650]: 20.1 L/min
(5.3 U.S.gals./min)
[B3350/B3350SU]:
18.9 L/min
(5.0 U.S.gals./min)
Max. pressure
15.8 to 16.6 MPa
(161 to 169 kgf/ )
(2292 to 2408 psi)
(B) from implement outlet
