PERIODIC SERVICE74

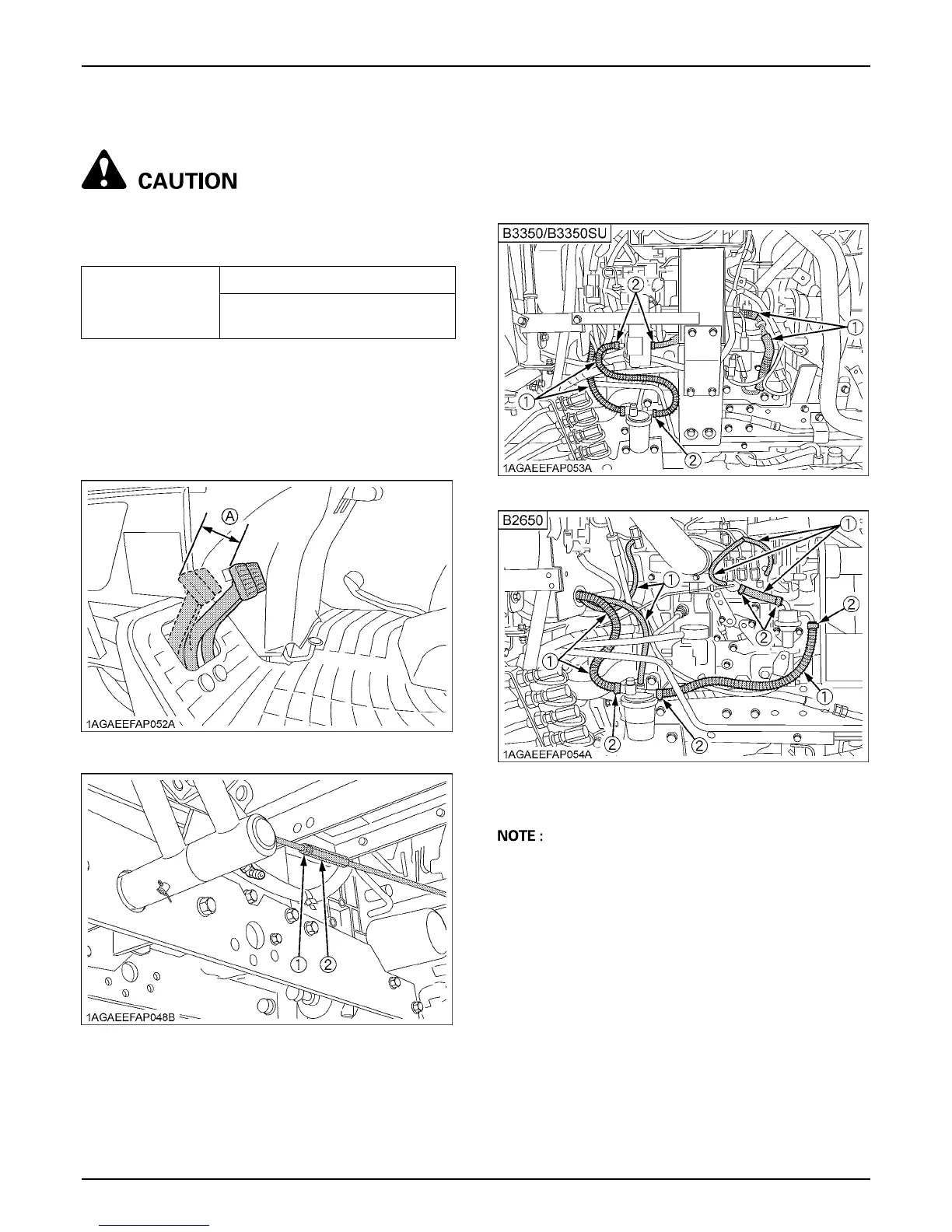

BAdjusting Brake Pedal
To avoid personal injury:
A Stop the engine and chock the wheels before
checking brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free
travel at the top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
BChecking Fuel Line
1. Check to see that all lines and hose clamps are tight
and not damaged.
2. If hoses and clamps are found worn or damaged,
replace or repair them at once.
A If the fuel line is removed, be sure to properly bleed the
fuel system.
(See "Bleeding Fuel System" in "SERVICE AS
REQUIRED" in "PERIODIC SERVICE" section.)
Proper brake pedal
free travel
30 to 40 mm on the pedal
Keep the free travel in the right
and left brake pedals equal.
(A) Free travel
(1) Lock nut
(2) Turnbuckle
(1) Fuel lines
(2) Clamp bands
