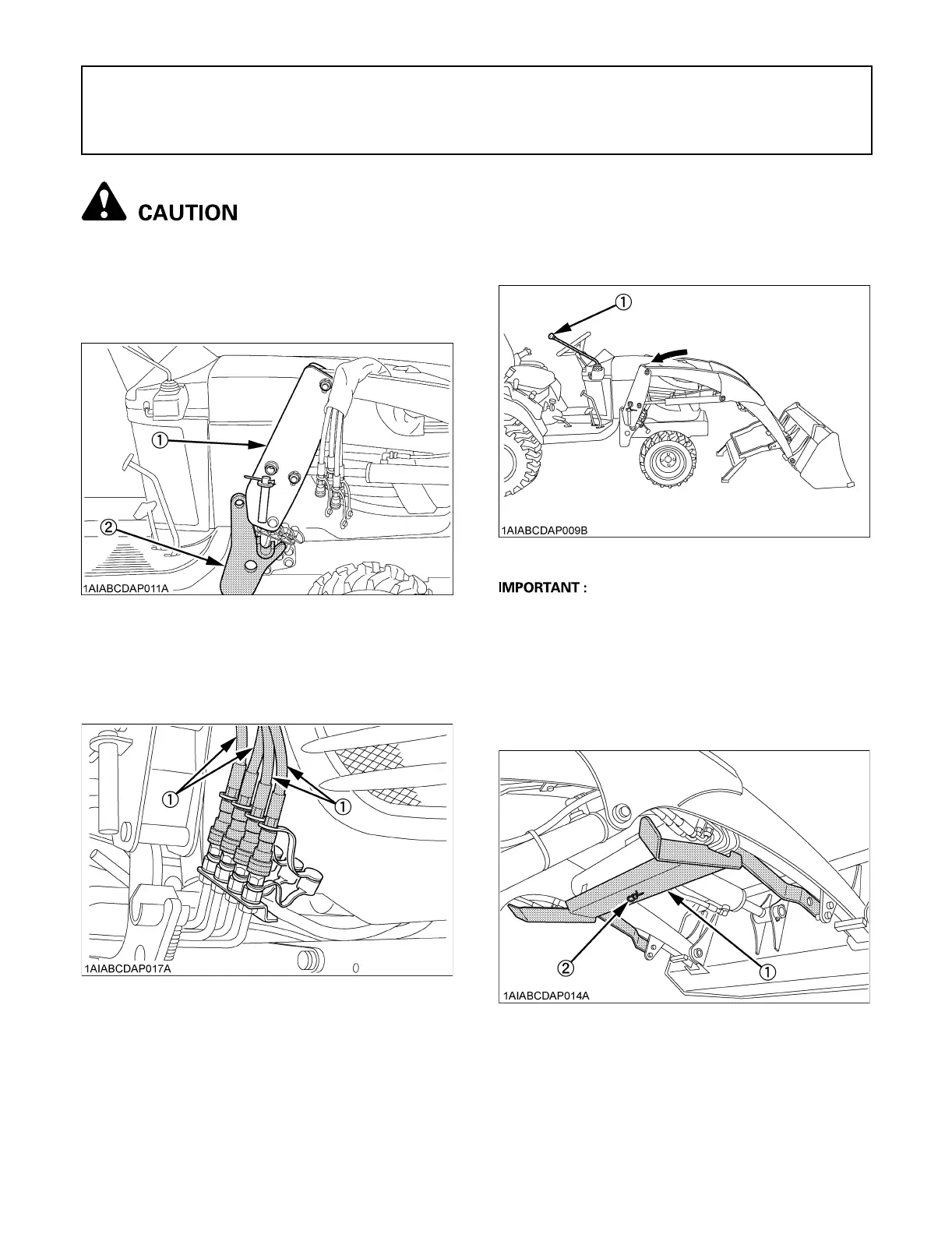

94 REINSTALLING THE LOADER
REINSTALLING THE LOADER
To avoid personal injury:
A When starting the engine and operating the
control lever, always sit in the operator's seat.
1. Slowly drive the tractor between the loader side
frames until the rear portion of both side frames
touches the main frames as shown.
2. Stop the engine.
3. Connect four hoses with couplers to the nipples on the
control valve as indicated with color marks. Then
connect the protective caps and plugs to each other.
4. Start the engine and run at idle.
5. Slowly move the loader control lever to dump position
to lower the side frames into the main frames and
engage the bosses of the main frames to the guide
bosses of the side frames. Then lift the front wheels
slightly with the loader.
A Do not attempt to lift the front wheels with the stand.
6. Stop the engine. Reinstall the mounting pins and
secure them with the locking rods.
7. Start the engine.
8. Raise the boom until the stand can be rotated.
9. Stop the engine.
10.Store the stand to their original positions and secure it
with the spring pin as shown.
11.Start the engine.
12.Lower the boom and level the bucket.
(1) Side frame
(2) Main frame
(1) Hoses
(1) Loader control lever
(1) Stand
(2) Spring pin
