BPTO Drive Shaft
1. When using a PTO drive shaft, read the operator's
manual of the implement before operating the
implement.
PTO drive shafts are designed for specific machines
and power requirement.
2. To adjust the length of the PTO drive shaft, refer to the
following instructions.
(1) To adjust the length, hold the half shafts next to
each other in the shortest working position and
mark them.
(2) Shorten inner and outer guard tubes equally.
(3) Shorten inner and outer sliding profiles tube by
the same length as the guard tubes.
(4) Round off all sharp edges and remove burrs.
Grease sliding profiles.
3. Ensure that the PTO drive shaft is securely connected
at both ends before operating.

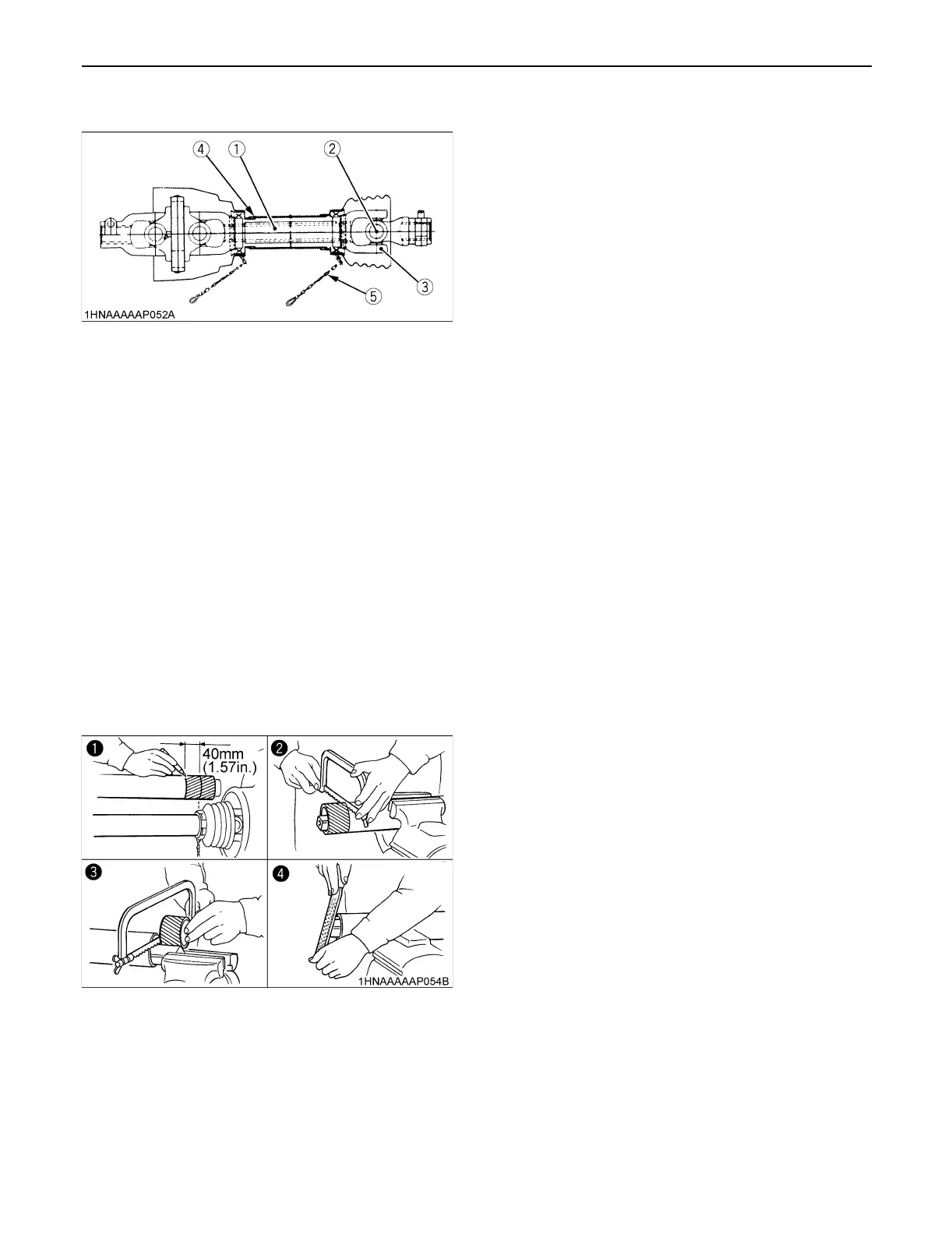

(1) Inner and outer sliding profile tubes
(2) Journal cross assy
(3) Fitting yoke
(4) Safety guard (In, Out)
(5) Chain
