3. Remove the oil filler cap (5), then remove
the drain plug/washer.
4. After the oil has completely drained,
reinstall the drain plug/washer.
5. Fill the gear case with the recommended
oil.
Remove the oil level check bolt/washer
(6).
Make sure the oil level reaches the oil
level check hole.
6. Install the oil filler cap and oil level check
bolt.
Tightening torque
Drain plug: 20 N-m (2 kgf-m, 15 lbf-ft)
114
Recommended oil : SAE 80
Oil quantity :
Periodic oil change
0.13 L (4.63 lmp oz, 4.33 US oz)
Tightening torque:
Oil filler cap: 14.7 N-m (1.5 kgf-m, 11 lbf-ft)
Oil level check bolt:
20 N-m (2 kgf-m, 15 lbf-ft)
Be sure no foreign material enters the gear
case.
CAUTION:
7. Install the skid plate.

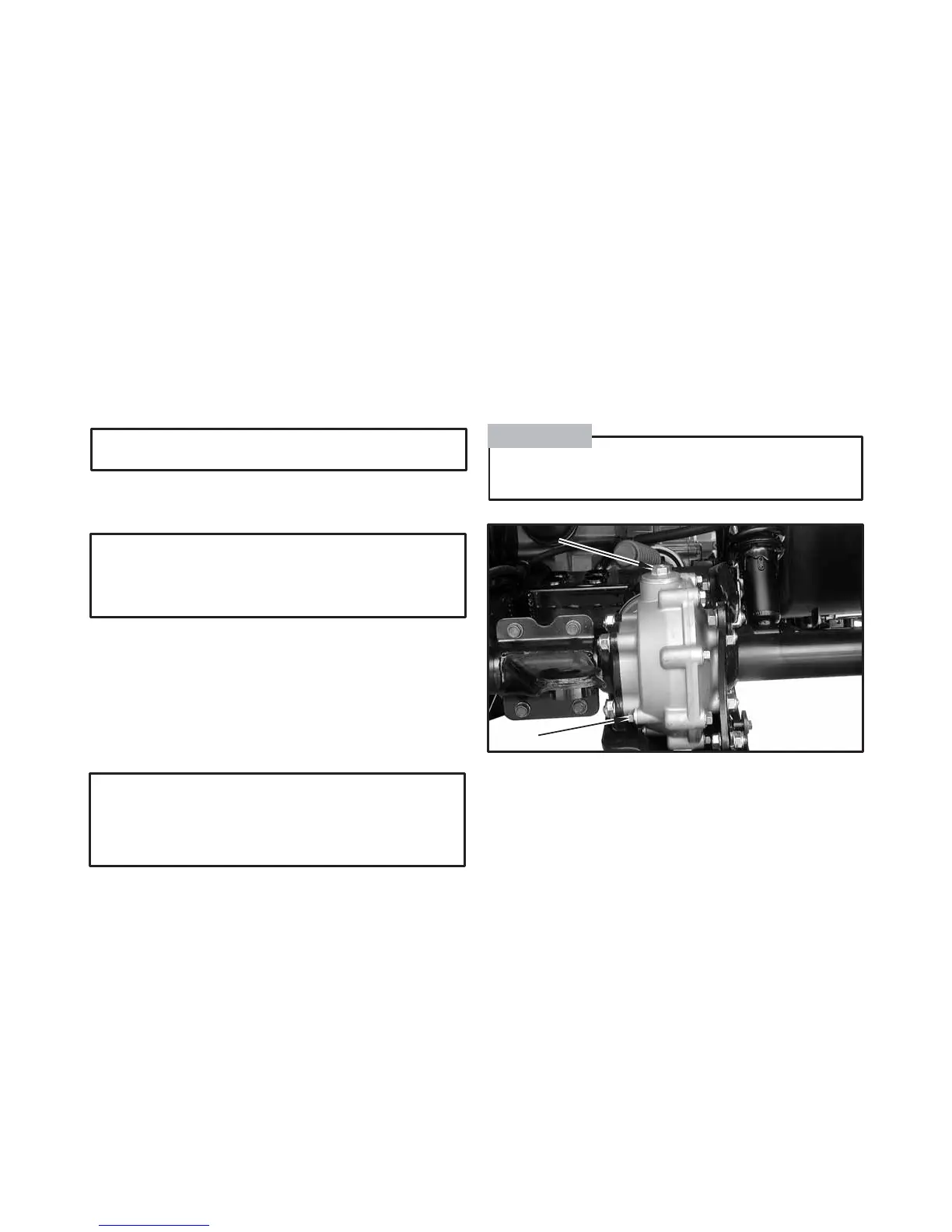

(5) Oil filler cap
(6) Oil level check bolt/washer
(5)
(6)
To Next Page
