15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-7
MXU 500

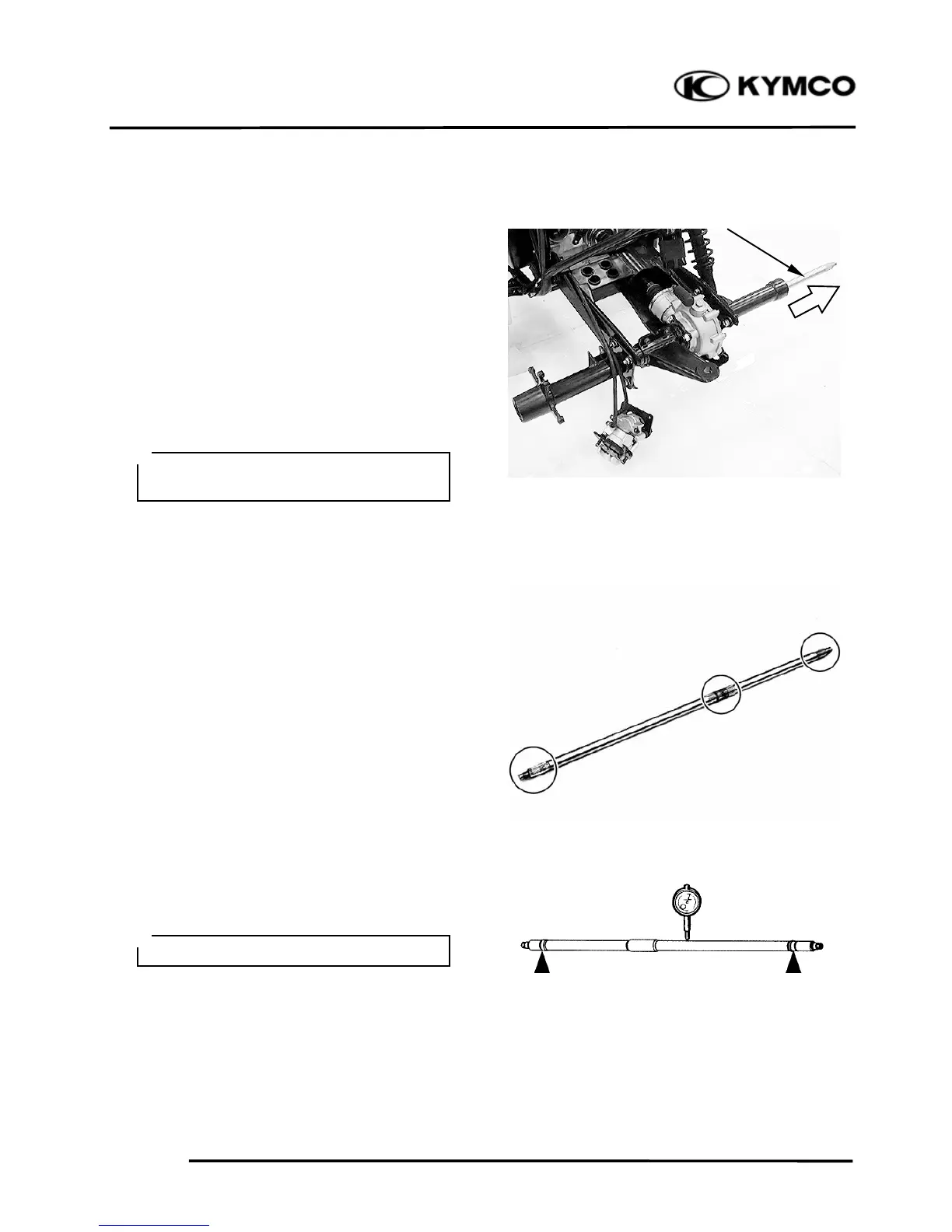

REAR AXLE
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the rear wheel hubs (refer to the
“REAR WHEEL HUB
REMOVAL/INSPECTION/
INSTALLATION” section in this chapter).
Remove the rear axle from axle housing
right side.
INSPECTION
Check the axle splines for wear or damage.
Set the axle in V-blocks and measure the
runout with a dial indicator.
Axle runout is 1/2 the total indicator
reading.
Service limit: 3 mm (0.12 in)
INSTALLATION
Apply lightweight lithium-soap base grease
to the rear axle splines, then install the rear
axle into the housing from right.
Tap the axle and with a rubber hammer,
this will avoid damage the axle thread.
＊
Rear Axle
Do not attempt to straighten a bent axle.
＊
