14. FRONT WHEEL/FRONT SUSPENSION
STEERING SYSTEM
14-11
MXU 500
INSTALLATION
Apply lightweight lithium-soap base grease
to the bearings of the steering knuckle and
lips of the dust seal before install the
steering knuckle.

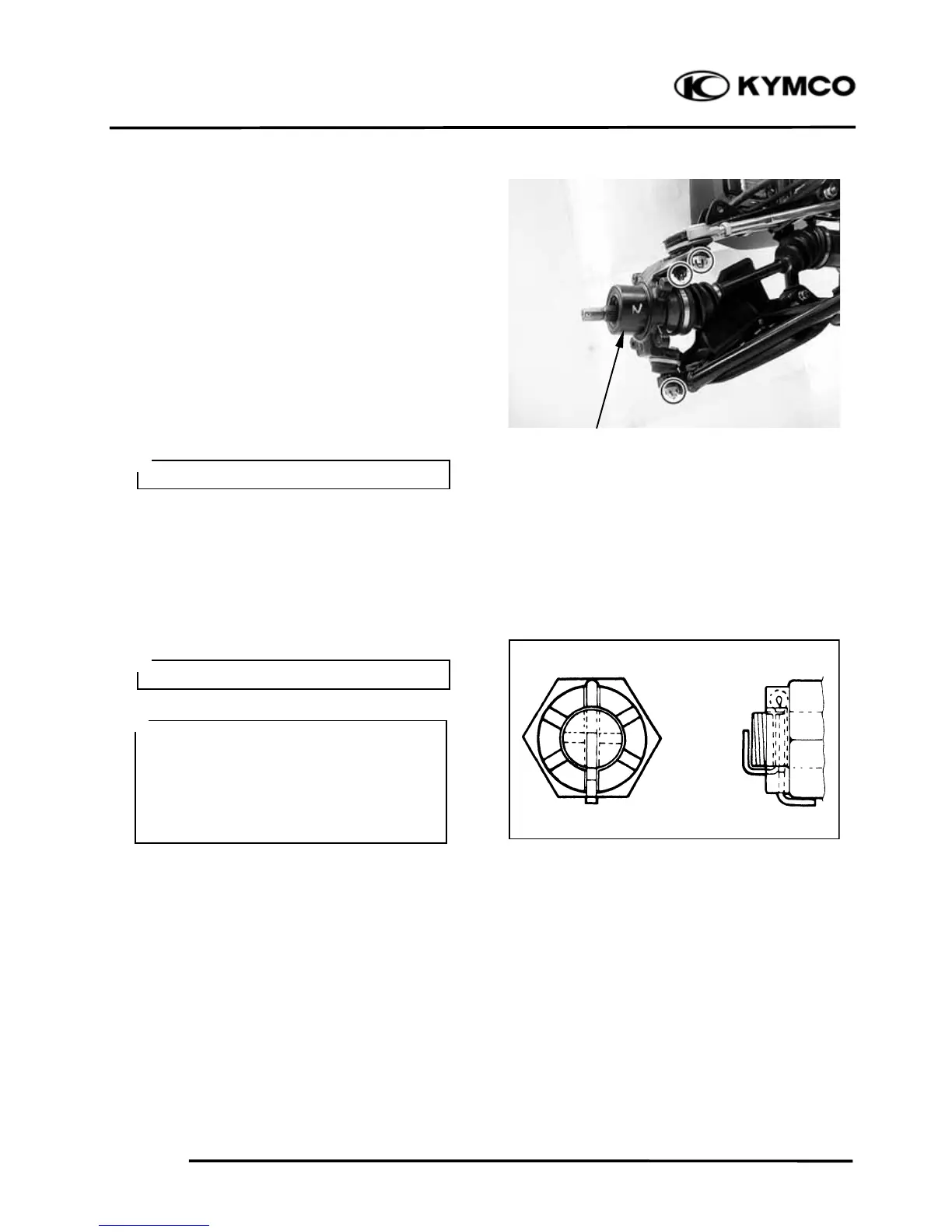

Install the steering knuckle onto the upper
and lower front arms and tighten the nuts to
the specified torque.
Torque: 3 kgf-m (30 N-m, 22 lbf-ft)
Install the all cotter pins and band ends of
cotter pins.
Install the tie-rod onto the steering knuckle
and tighten the nut to the specified torque.
Torque: 2.1 kgf-m (21 N-m, 16 lbf-ft)
Install the cotter pin and band end of cotter
pin.
Always use a new cotter pin.
＊
Always use a new cotter pin.
＊
Æ” Do not apply oil to the seat of the nuts.
Æ” Do not loosen the nuts after torque
tightening. If the nuts groove is not
aligned with the cotter pins hole, align
groove with the hole by tightening up
on the nuts.
＊
Steering Knuckle
To Next Page
