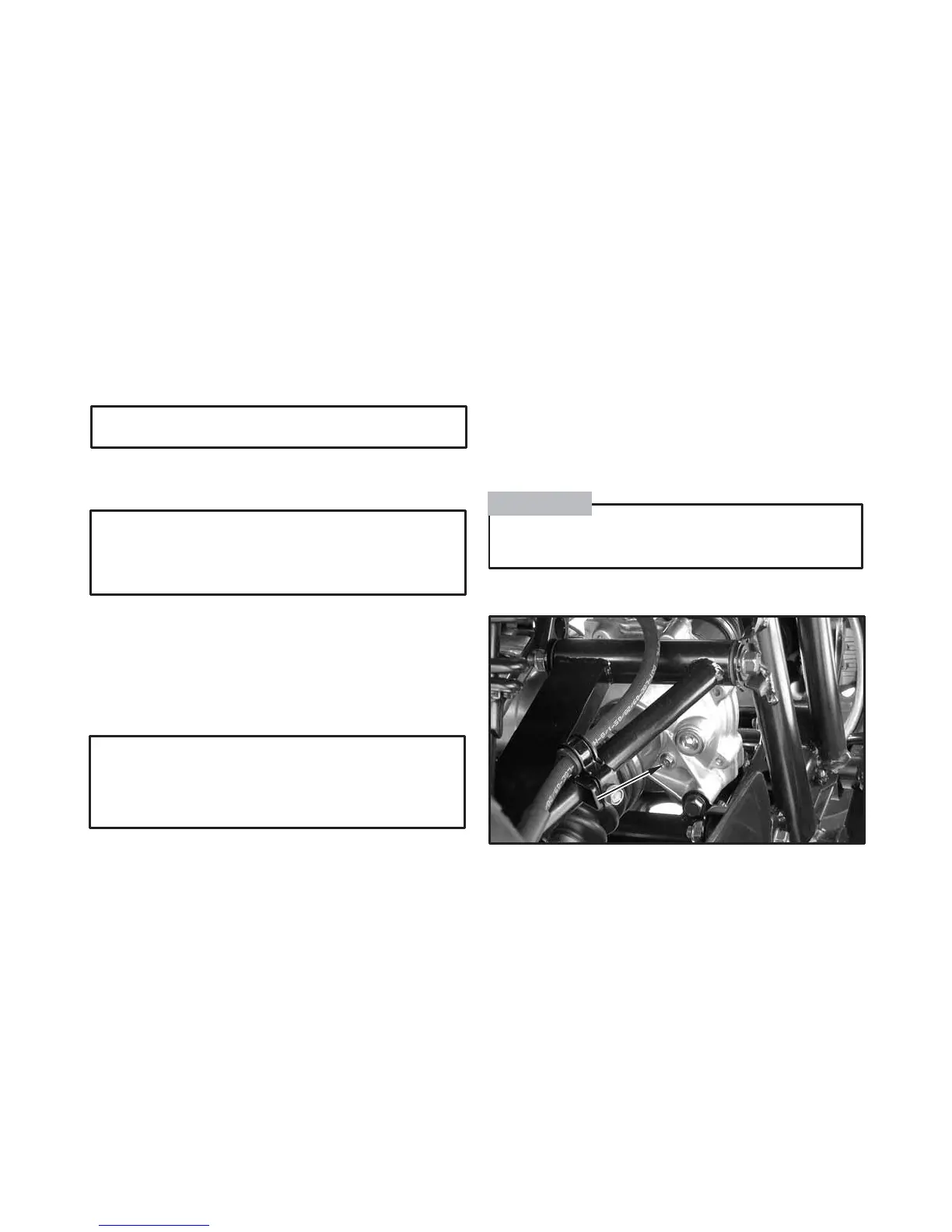

3. Remove the drain plug.
4. After the oil has completely drained,
reinstall the drain plug/washer.
5. Fill the gear case with the recommended
oil.
Remove the oil level check bolt/washer
(3).
Make sure the oil level reaches the oil
level check hole.
6. Install the oil filler bolt/washer and oil
level check bolt/washer.
Tightening torque
Drain plug: 32 N-m (3.2 kgf-m, 23 lbf-ft)
116
Recommended oil : SAE 90
Oil quantity :
Periodic oil change
0.3L(10.6lmpoz,10.1USoz)
Tightening torque:
Oil filler bolt: 35 N-m (3.5 kgf-m, 25.5 lbf-ft)
Oil level check bolt:
10 N-m (1 kgf-m, 7.2 lbf-ft)
Be sure no foreign material enters the gear
case.
CAUTION:
(2) Oil level check bolt
(3)
