5. FUEL SYSTEM
5-5
MXU 500

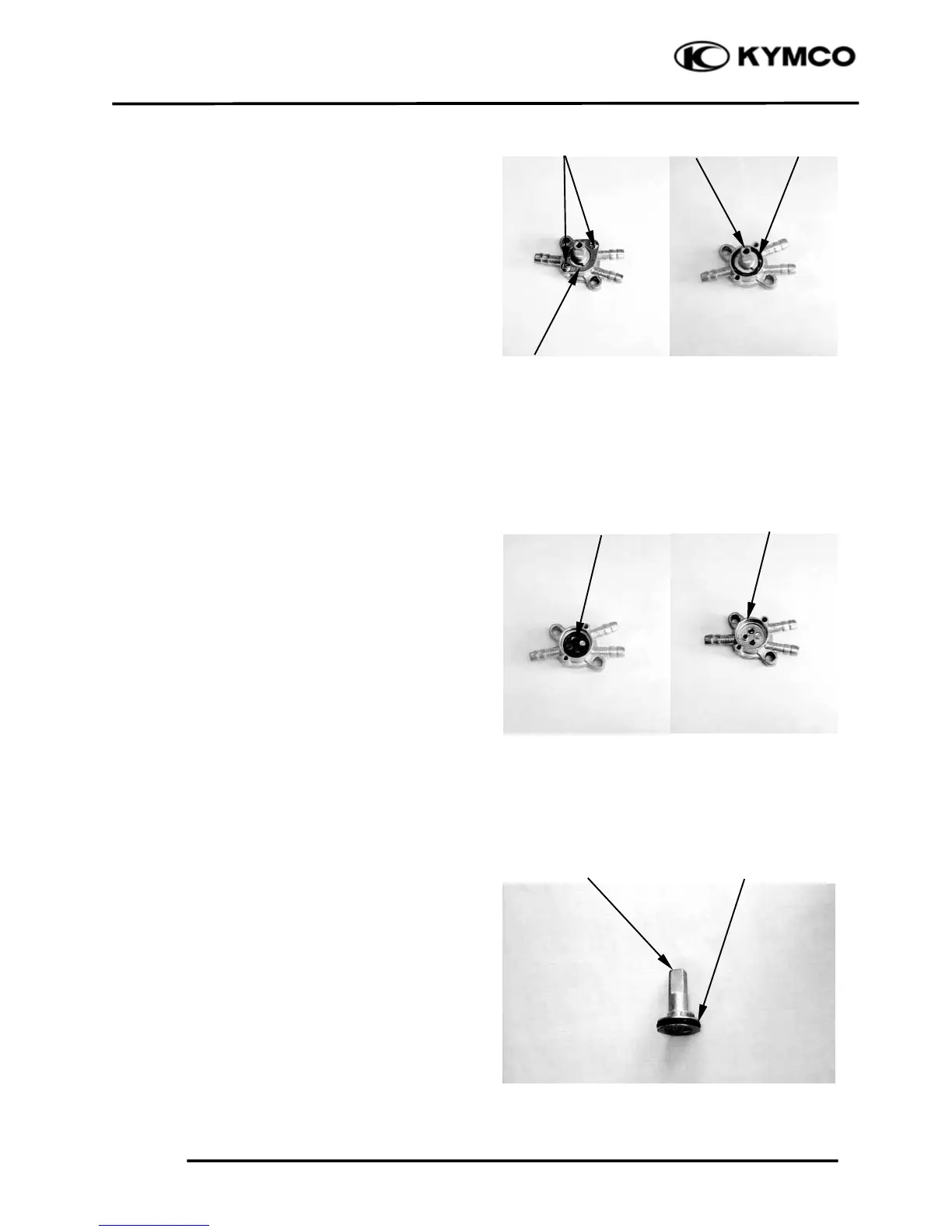

DISASSEMBLY
Remove the two screws on the retaining ring
and then remove retaining ring.
Remove the washer and control shaft.
Remove the rubber gasket from the fuel
valve body.
INSPECTION
Inspect the fuel valve body for dirt and clog.
Clean if necessary.
Replace the rubber gasket with new ones if
they are damaged or deteriorated.
Replace the O-ring with a new one if they
are damaged or deteriorated.
Fuel Valve Body
Control Shaf
t
Rubber Gaske
t
Retaining Ring
Washe
r
Screws
Control Shaf
t
O-ring
