11.FINAL REDUCTION/
TRANSMISSION SYSTEM
11-11
MXU 500

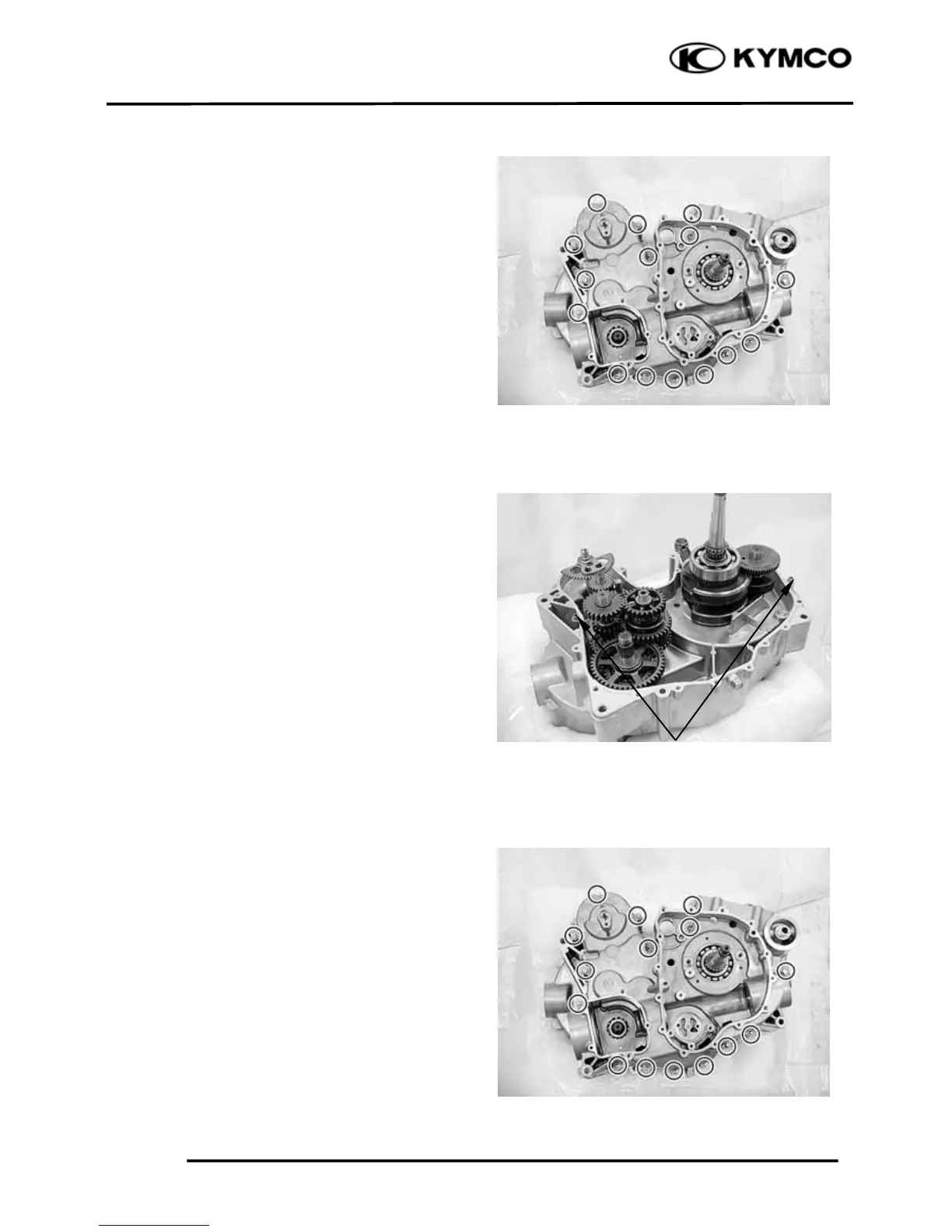

Remove the fifteen bolts from right
crankcase.
Remove the two dowel pins.
INSTALLATION
Apply a light but through coating of liquid
gasket (Threebond 1215 or equivalent) to all
crankcase mating surfaces except the oil
passage area.
Install the right crankcase and tighten the
bolts in a crisscross pattern in 2 or 3 steps.
Torque:
1.2 kgf-m (12 N-m, 8.6 lbf-ft) Apply oil
Dowel Pins
