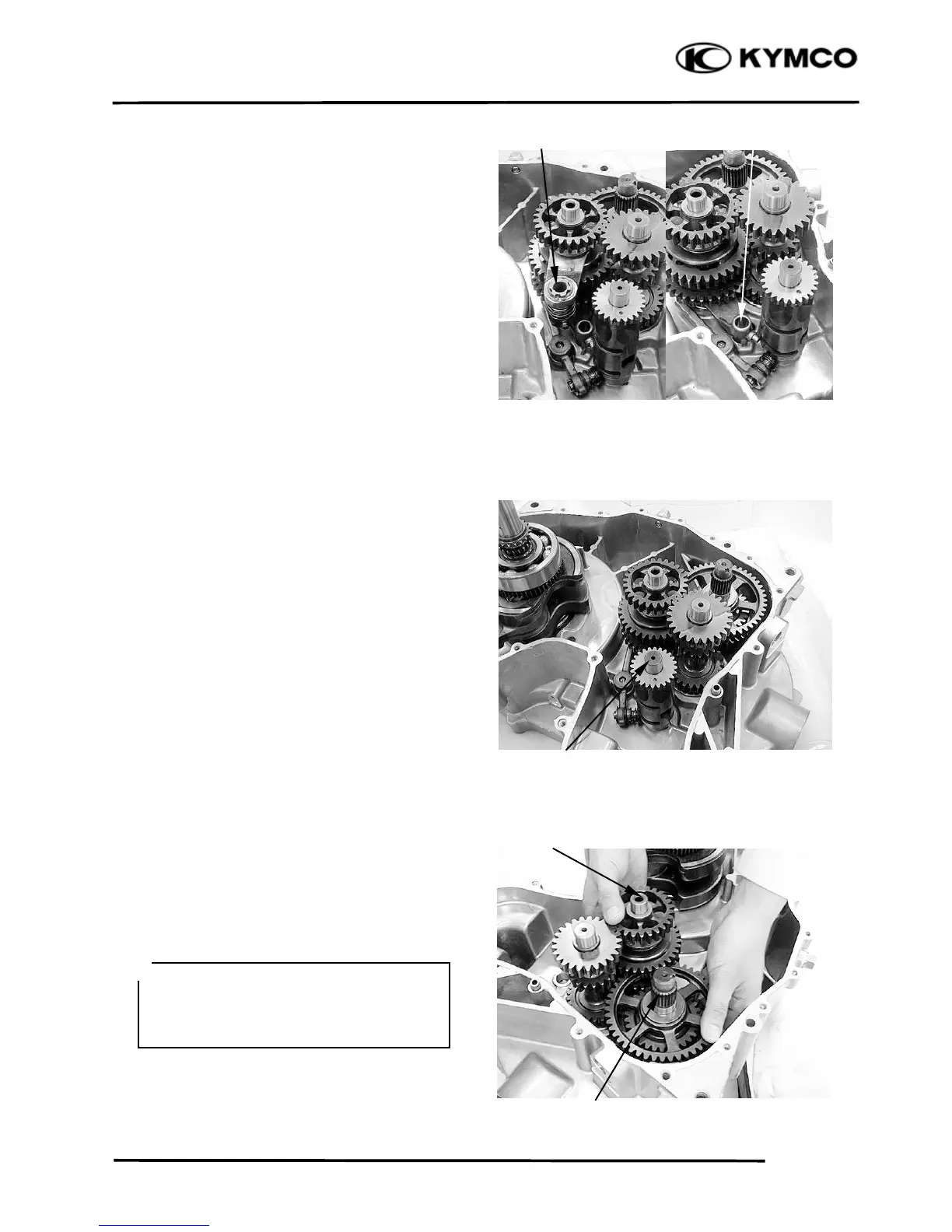

Remove the upper shift fork.
Remove the lower shift fork.
Remove the shift cam.
Remove the countershaft and driveshaft as an
assembly.
Disassemble the countershaft and the
driveshaft.
Driveshaft Assembly
Countershaft Assembly
Upper Shift Fork Lower Shift Fork
Shift Ca
m
Keep track of the disassembled parts
(gears, washer and clip) by stacking
them on a tool or slipping them onto a
piece of wire.
＊
