15. REAR WHEEL/AXLE/SHOCK
ABSORBER/SWING ARM
15-5
MXU 500

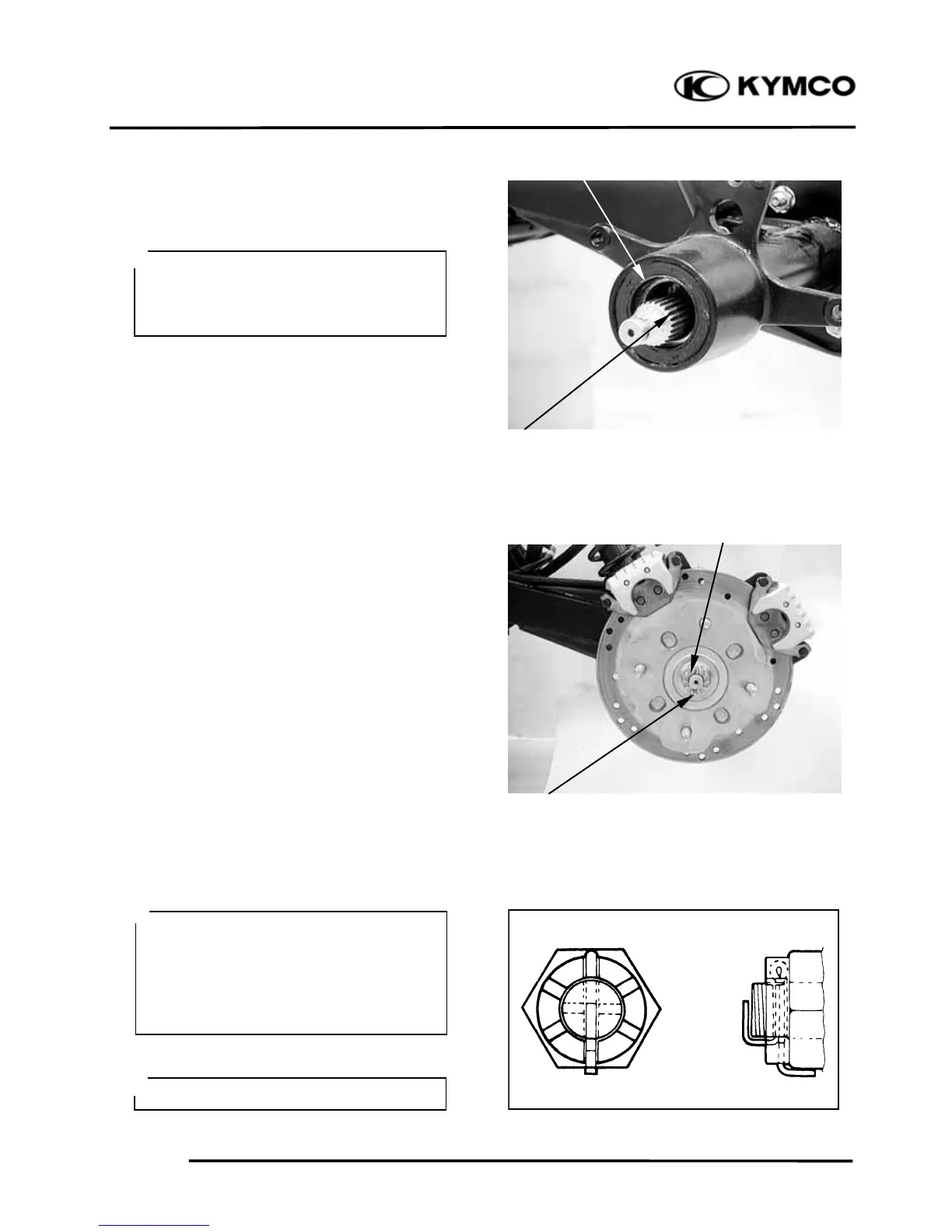

INSTALLATION
Install the wheel hub and nut.
Apply the front brake and then tighten the
nut to the specified torque.
Torque: 10 kgf-m (100 N-m, 72 lbf-ft)
Install the cotter pin and band ends of cotter
pin.
Apply lightweight lithium-soap base
grease onto the wheel hub splines, rear
axle splines and dust seal lips of the axle
housing.
＊
Apply grease
Apply grease
Always use a new cotter pin.
＊
Æ” Do not apply oil to the seat of the nut.
Æ” Do not loosen the wheel hub nut after
torque tightening. If the wheel hub nut
groove is not aligned with the cotter
pin hole, align groove with the hole by
tightening up on the wheel hub nut.
＊
Nu
