16. BRAKE SYSTEM
16-38
MXU 500

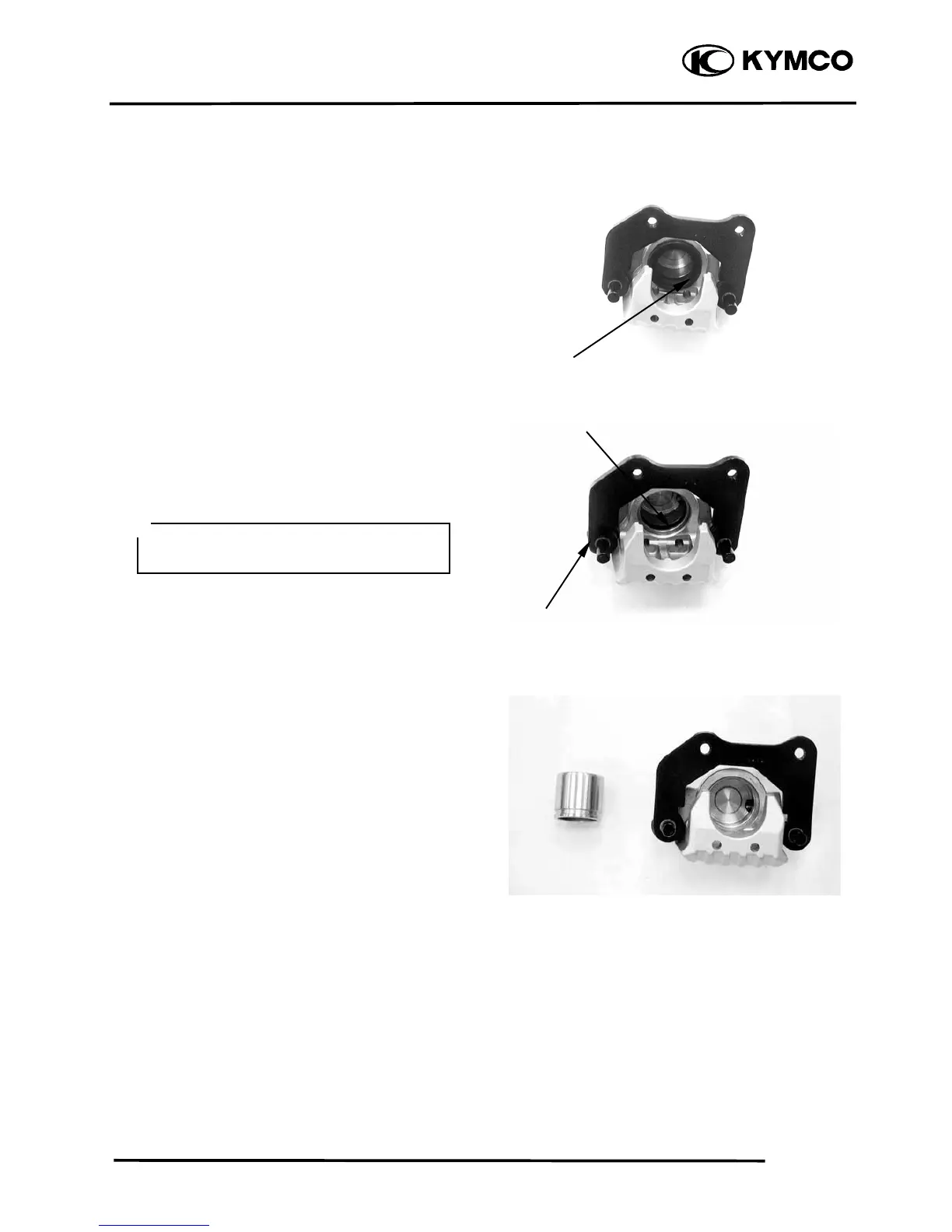

Push the piston dust seal inward to remove.
Pushing the piston oil seal outward to
remove it.
Clean the seals groove with brake fluid.
Remove the caliper bracket.
INSPECTION
Inspect the caliper cylinder wall and piston
surface for scratch, corrosion or other
damages.
If any abnormal condition is noted, replace
the caliper.
Inspect the dust boots for deterioration or
damage.
If any damages are found, replace them with
a new ones.
Inner Oil Seal
Dust Seal
Caliper Bracke
