76
4 CMS Components
4.8.3 Functional Description
The GUI6xx models are HMIs for the configuration and monitoring of a burner.
The following models are available:
• GUI 607 with 7" screen diagonal
• GUI 610 with 10" screen diagonal
• GUI 615 with 15" screen diagonal
4.8.4 Connection Diagram

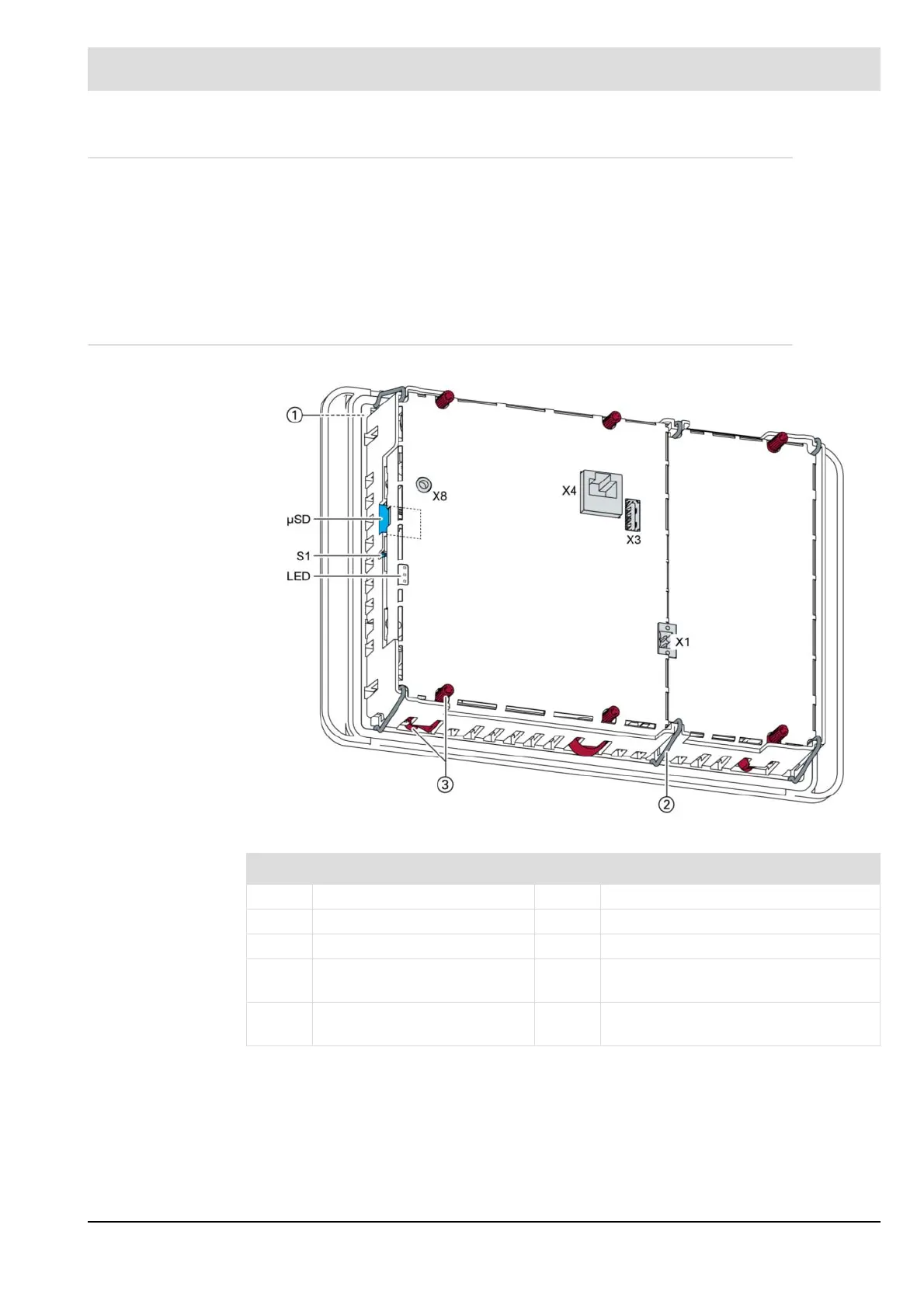

Fig. 4-44 Connection assignments GUI607
No. Description No. Description
1 Display 7 " X1 Power supply
2 Mounting clamp (3 pcs.) X3 USB 2.0
3 Turning bolt (6 pcs.) for IP 65 X4 Ethernet
S1 Function key (reset and run/
stop)
X8 Do not use
LED LEDs: PWR, run/stop, error SD Connection for microSD card (for fur-
ther options)
