13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 112

Query Port

The query port (0x77FE) is used for the automatic discovery of the device by the DeviceInstaller

utility. Only 0x77FE discover messages from DeviceInstaller are supported. For more information

on DeviceInstaller, see Using DeviceInstaller (on page 33).

To configure the query port server:

1. Select Query Port on the menu bar. The Query Port page opens to display the current

configuration.

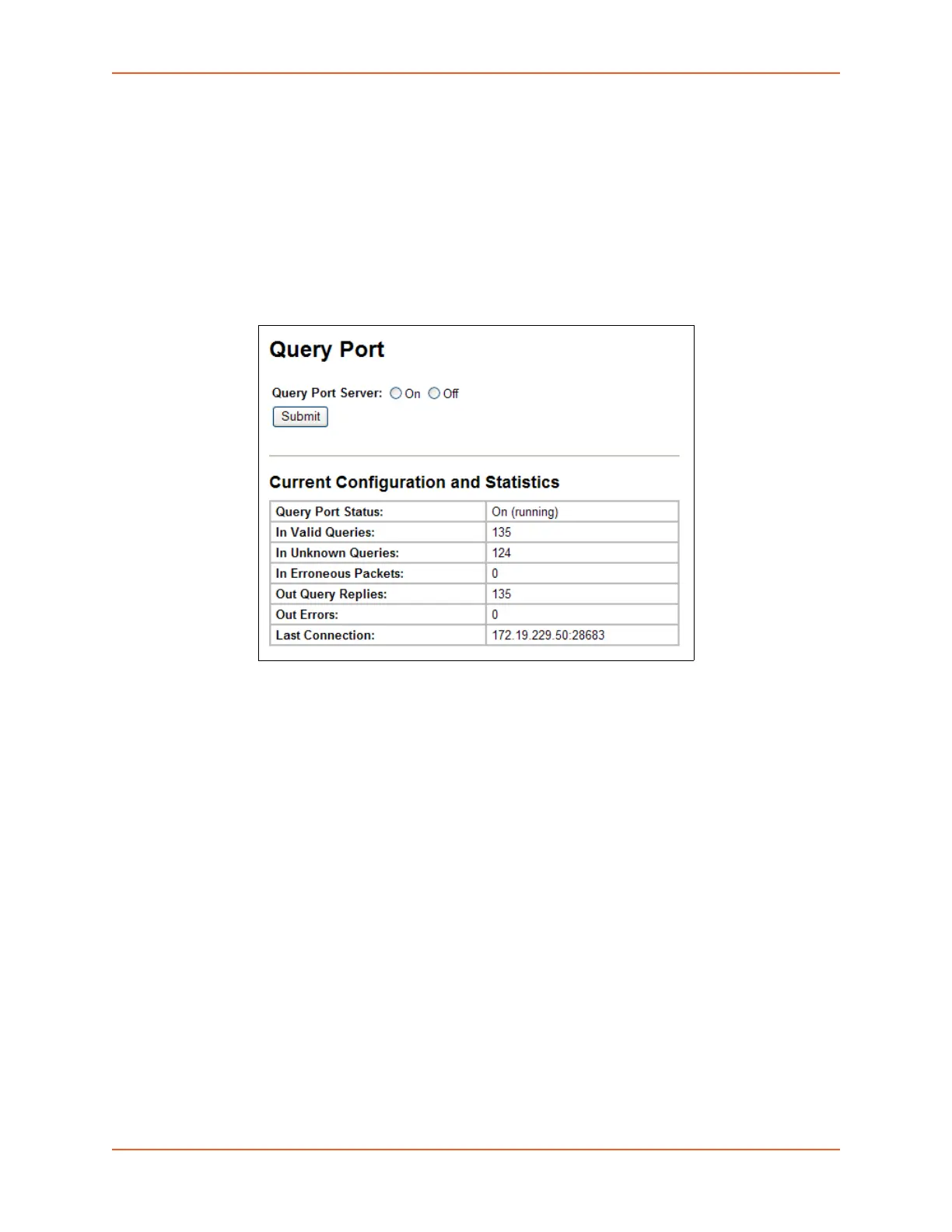

Figure 13-16 Query Port Configuration

2. Select On to enable the query port server.

3. Click Submit.
