Lantronix EDS1100 User Manual

3: Installation of EDS1100
EDS1100/2100 Device Server User Guide 23
Hardware Components
The EDS1100 has a female DB25 serial port that supports RS-232, RS-422, and RS-485 serial
devices. The default serial port settings are 9600 baud, 8 bits, no parity, 1 stop bit, no flow control.

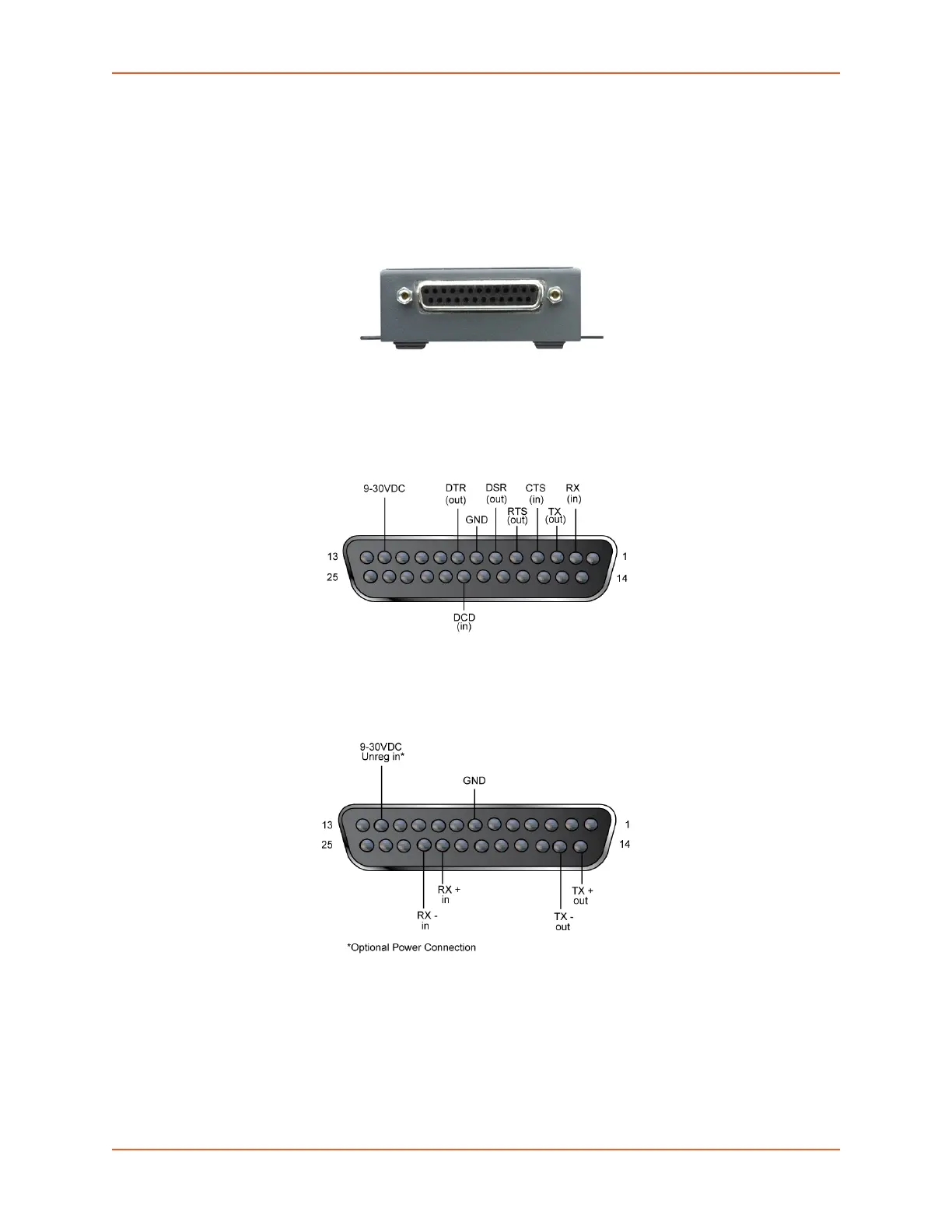

Figure 3-1 shows the front panel.
Figure 3-1 EDS1100 DB25 (Female) Serial Port
Figure 3-2 shows the RS-232 pinout configuration.
Figure 3-2 EDS1100 RS-232 Pinouts
Figure 3-3 shows the RS-422 (4-wire) pinout configuration.
Figure 3-3 EDS1100 RS-422 (4-wire) Pinouts
Figure 3-4 shows the RS-485 (2-wire) pinout configuration.
