4: Installation of EDS2100
EDS1100/2100 Device Server User Guide 29

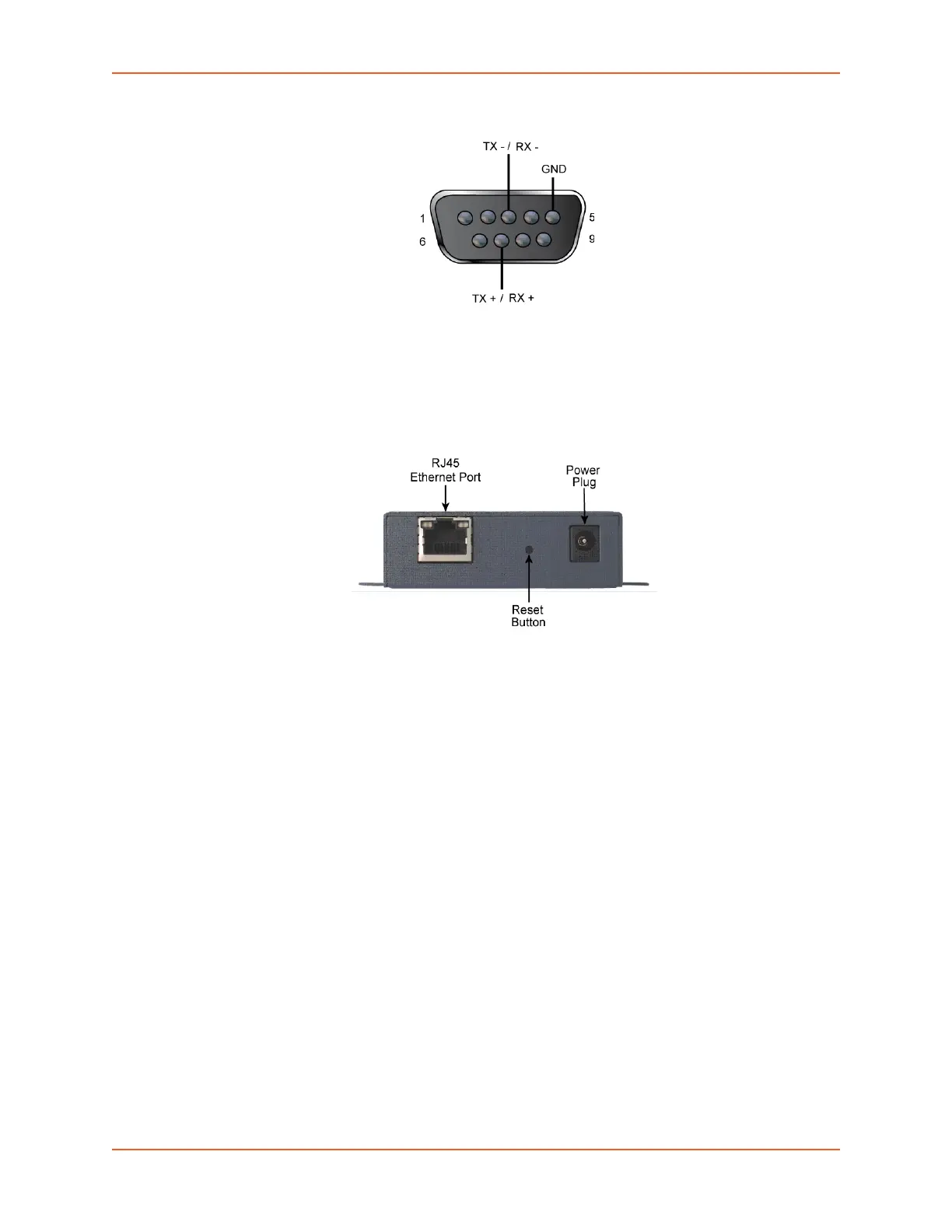

Figure 4-4 EDS2100 Pinout Configuration for RS-485 (2-wire)
Back Panel
On the EDS2100 back panel, there is a power plug, reset button, and an RJ45 (10/100) Ethernet
port as shown in Figure 4-5.
Figure 4-5 EDS2100 Ethernet RJ45 Port, Reset Button, and Power Plug
The Ethernet port has two LEDs that indicate the status of the connection as follows:
Left LED
- Green ON 100Mbps Link
- Green Blink 100Mbps Activity
- Orange ON 10Mbps Link
- Orange Blink 10Mbps Activity.
Right LED
- Green ON Full Duplex.
- OFF Half Duplex
The Ethernet port can connect to an Ethernet (10 Mbps) or Fast Ethernet (100 Mbps) network.
Reset Button
You can reset the EDS2100 to factory defaults, including clearing the network settings. The IP
address, gateway, and netmask are set to 00s. To reset the unit to factory defaults, perform the
following steps.
1. Place the end of a paper clip or similar object into the reset opening and press for a minimum
of 3 seconds.
2. Remove the paper clip to release the button. The firmware restores factory default settings to
the configuration and reboots the unit.
