EDS1100/2100 Device Server User Guide 139

16: Updating Firmware

Obtaining Firmware

Obtain up-to-date firmware and release notes for the unit from the Lantronix web site (http://

www.lantronix.com/support/downloads) or by using anonymous FTP (ftp://ftp.lantronix.com/).

Loading New Firmware

Reload the firmware using the device web manager Filesystem page.

To upload new firmware:

1. Select System in the menu bar. The System page appears.

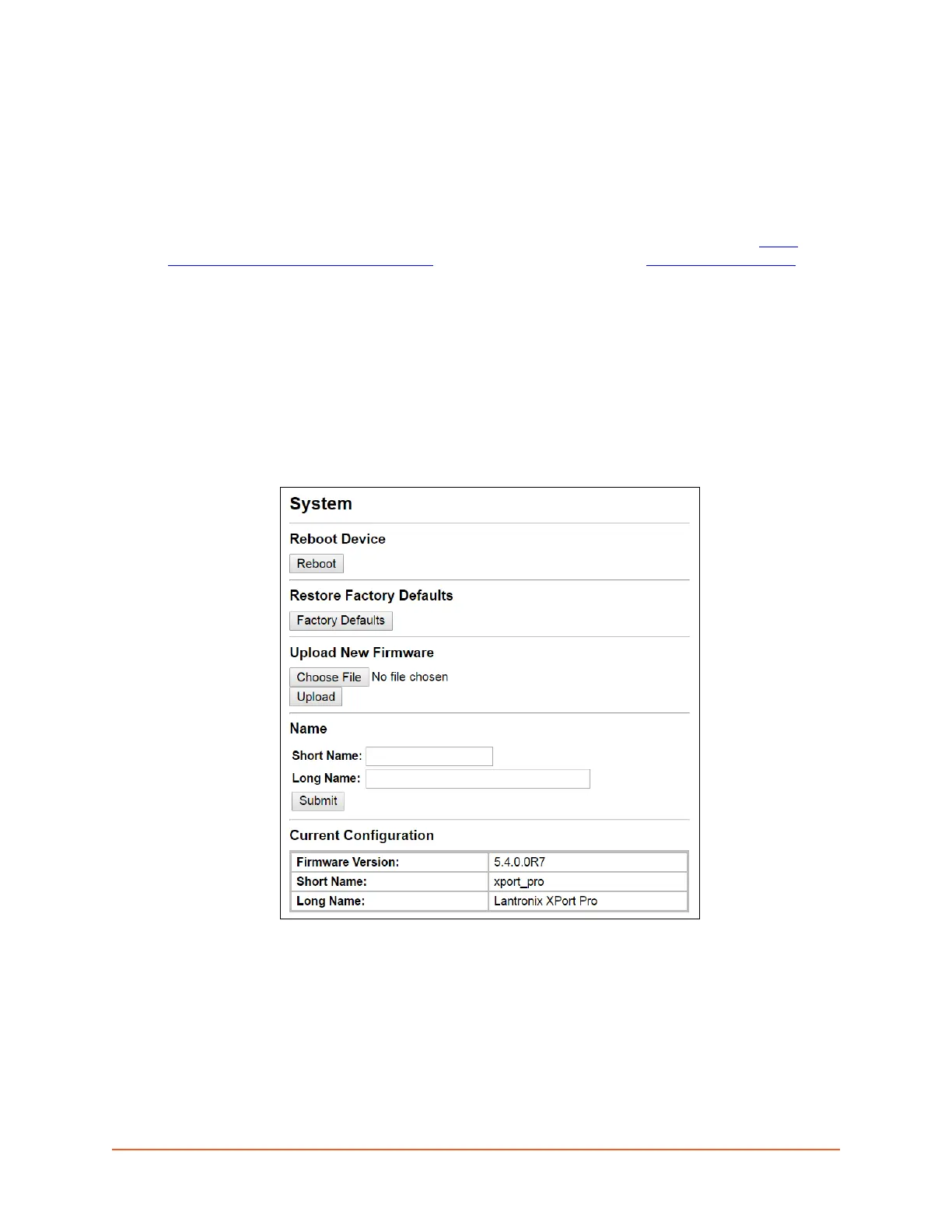

Figure 16-1 Update Firmware

2. Click Choose File to browse to the firmware file.

3. Highlight the file and click Open.

4. Click Upload to install the firmware on the EDS1100/2100 device server. The device

automatically reboots on the installation of new firmware.

5. Close and reopen the web manager Internet browser to view the device’s updated web pages.

Note: Alternatively, firmware may be updated by sending the file to the EDS1100/2100

device server over a FTP or TFTP connection.
