10: Service Settings
EDS1100/2100 Device Server User Guide 72
Address as its gateway, and the static route in the remote device must use the network
interface IP Address of the EDS1100/2100 device server as its gateway.
The following section describes the steps to configure PPP 1 (PPP on serial line 1); these steps
also apply to any line instance of the device. Since the EDS1100/2100 unit does not support NAPT
(Network Address and Port Translation), static routing table entries must be added to both the
serial-side and network-side devices (both of which are external to the EDS1100/2100 device
server).
To configure PPP:
1. Select PPP on the menu bar. The PPP web page appears.
2. Select a line number at the top of the page. The PPP Configuration page for the selected line
number appears.

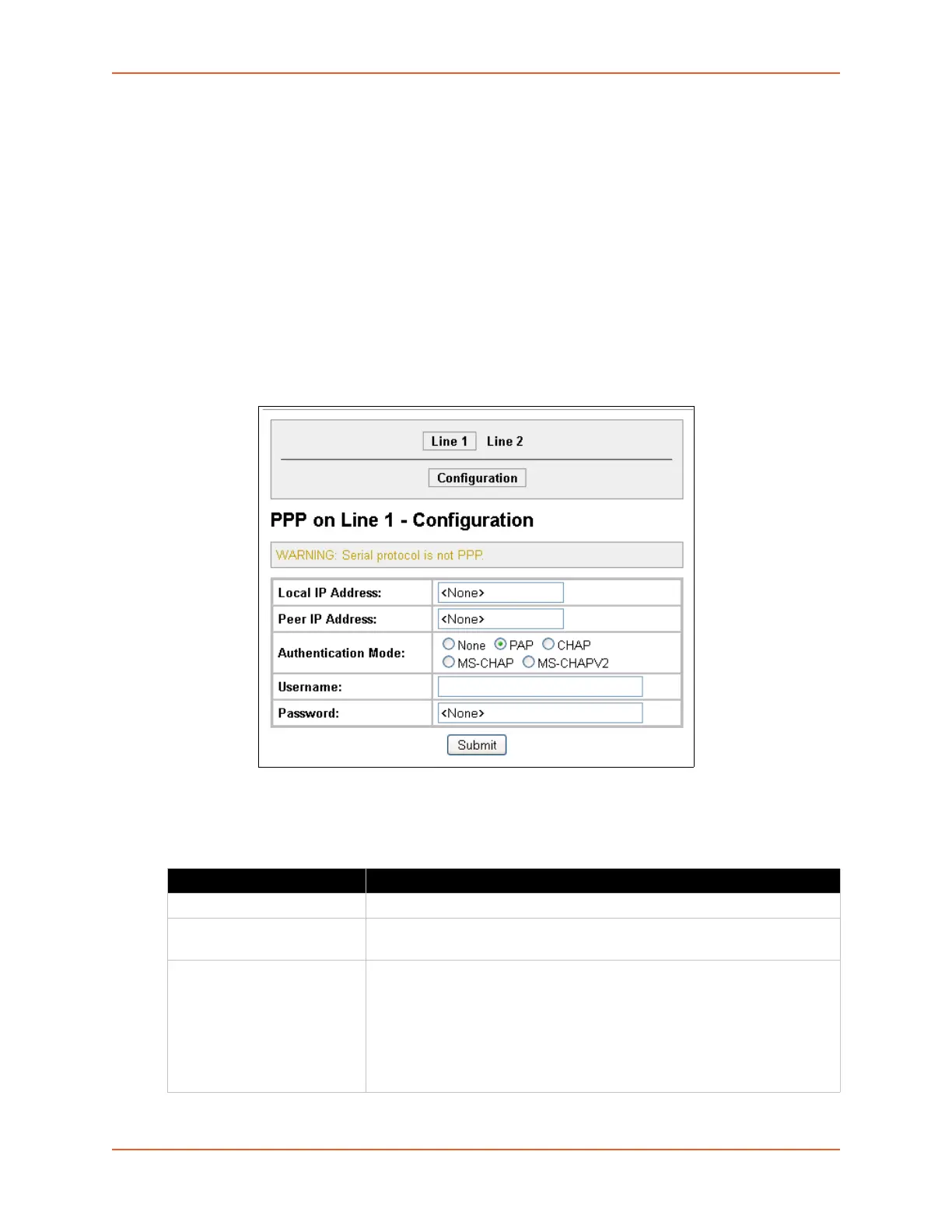

Figure 10-2 PPP Configuration Settings
3. Enter or modify the following settings:
Table 10-3 PPP Configuration
PPP Configuration Settings Description
Local IP Address Enter the IP address assigned to the device’s PPP interface.
Peer IP Address Enter the IP address assigned to the peer (when requested during
negotiation).
Authentication Mode Choose the authentication mode:
None = no authentication is required
PAP = Password Authentication Protocol
CHAP = Challenge Handshake Authentication Protocol
MS-CHAP = Microsoft Challenge-Handshake Authentication Protocol
MS-CHAPV2 = Microsoft Challenge-Handshake Authentication Protocol
Version 2
