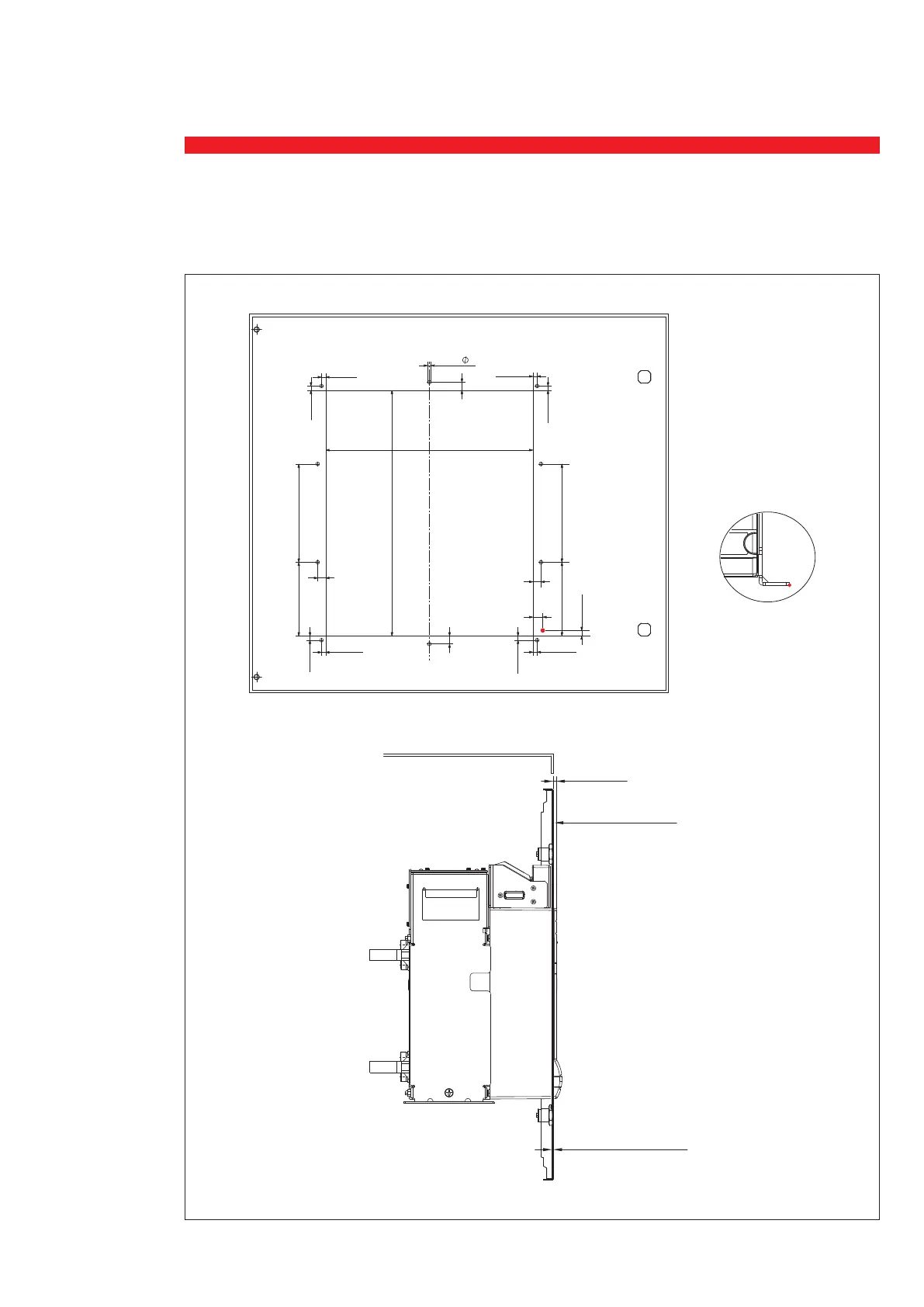

10.3. Découpe et perçage du plastron pour version fixe
Détails de montage.
0÷5mm
PLASTRON
Épaisseur du plastron:
MIN 1.2mm -
MAX 2.5mm
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
9
9
9
9
110
82.5
275
232
110
82.5
11
5.25
410
Coin du disjoncteur
