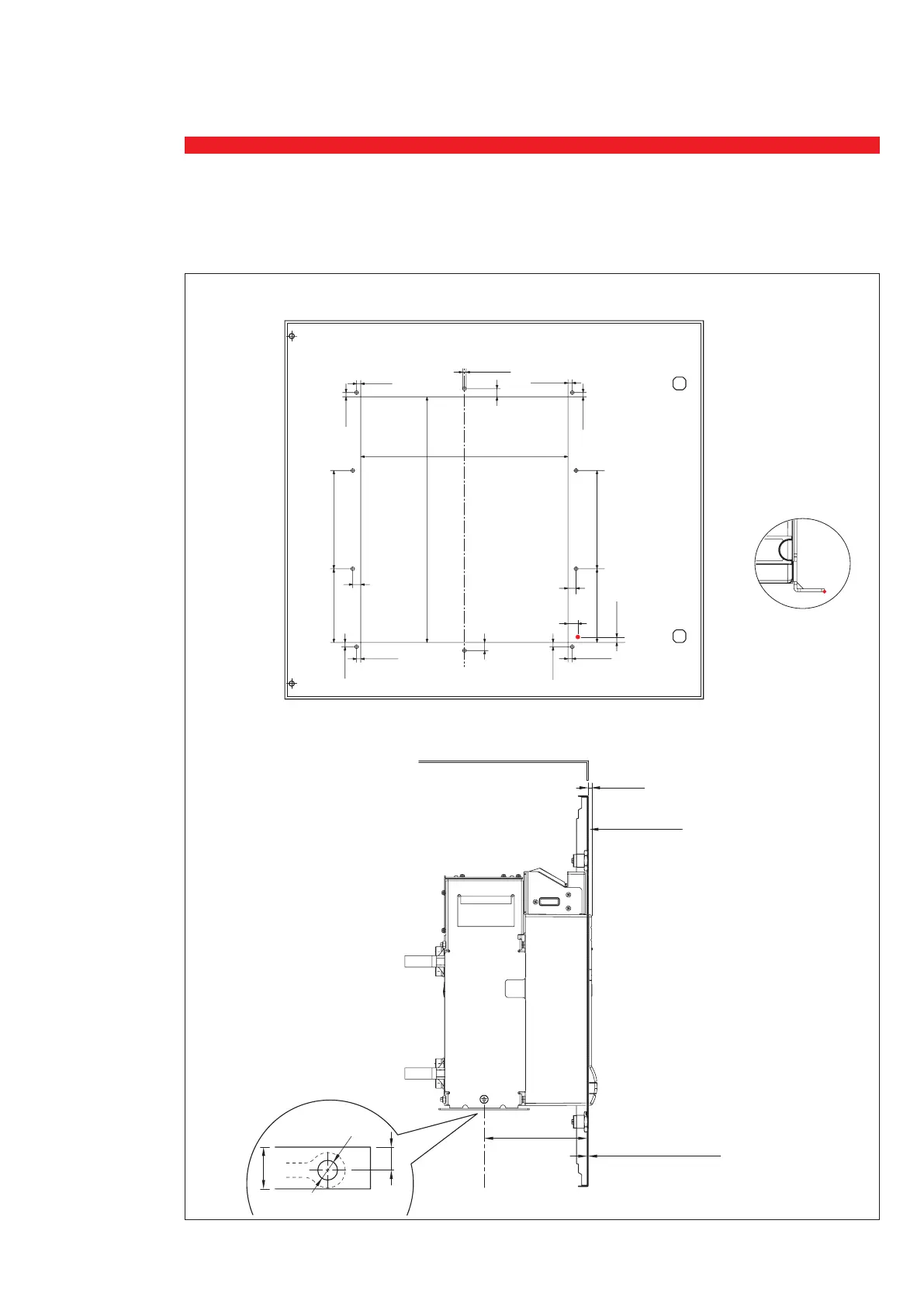

10.3. Door cut-out for fixed version
Mounting details.
0÷5mm
PANEL DOOR
Thickness of the panel:
Corner of the breaker
MIN 1.2mm -
MAX 2.5mm
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
9
9
9
9
11 0
82.5
275
232
11 0
82.5
11
5.25
ø410
19
10,5
ø9
135
