84
DMX
3

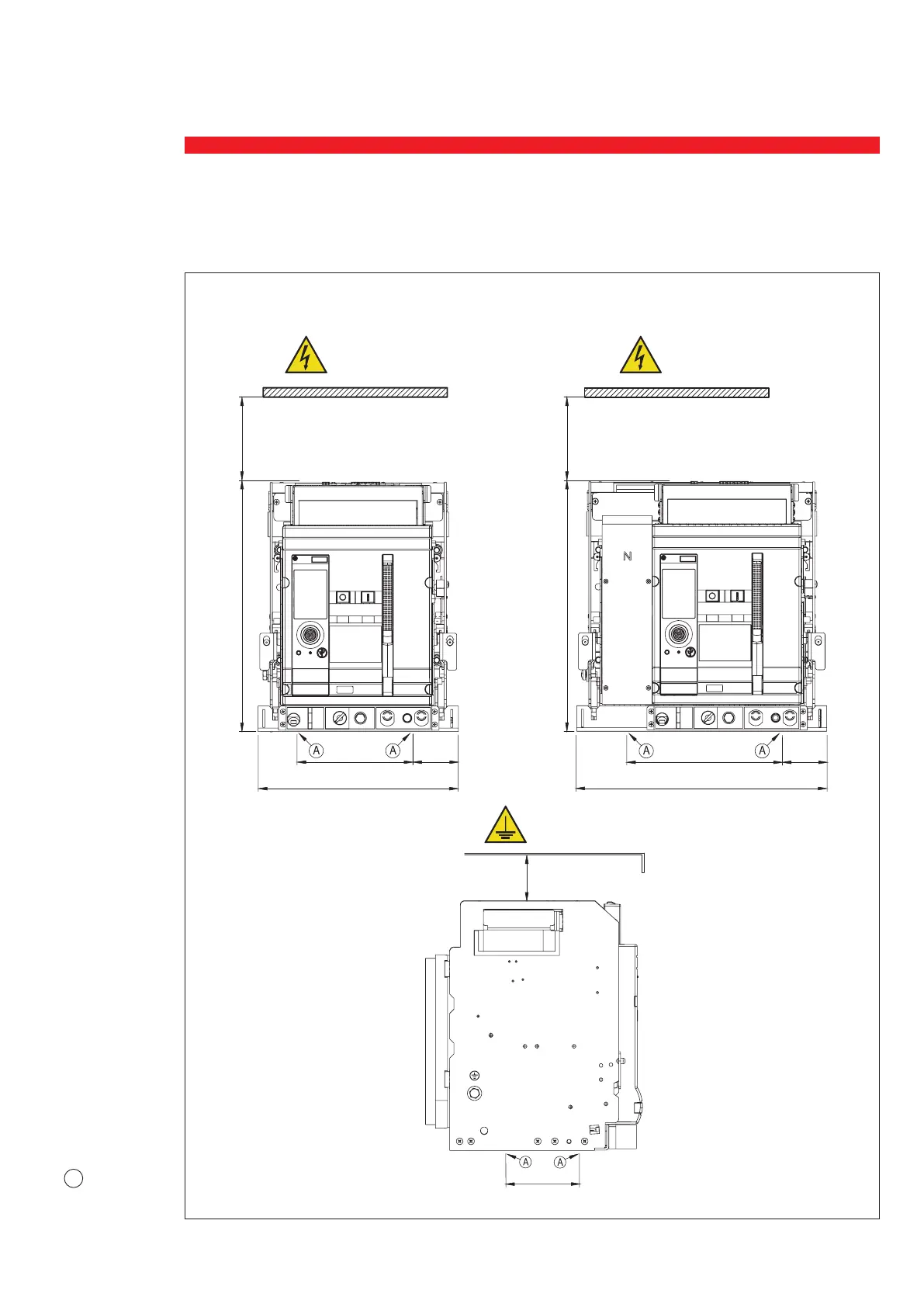

10.4. Installation of breaker DMX
3
draw-out + base version
Mounting details
A = Fixing
point on plate
of enclosure
MIN 66
15 0
282
63
352
63
220
352
MIN 115
MIN 115
352
95
ACTIVE POLE ACTIVE POLE
3P version
Draw-out + base version
4P version
