99
DMX
3

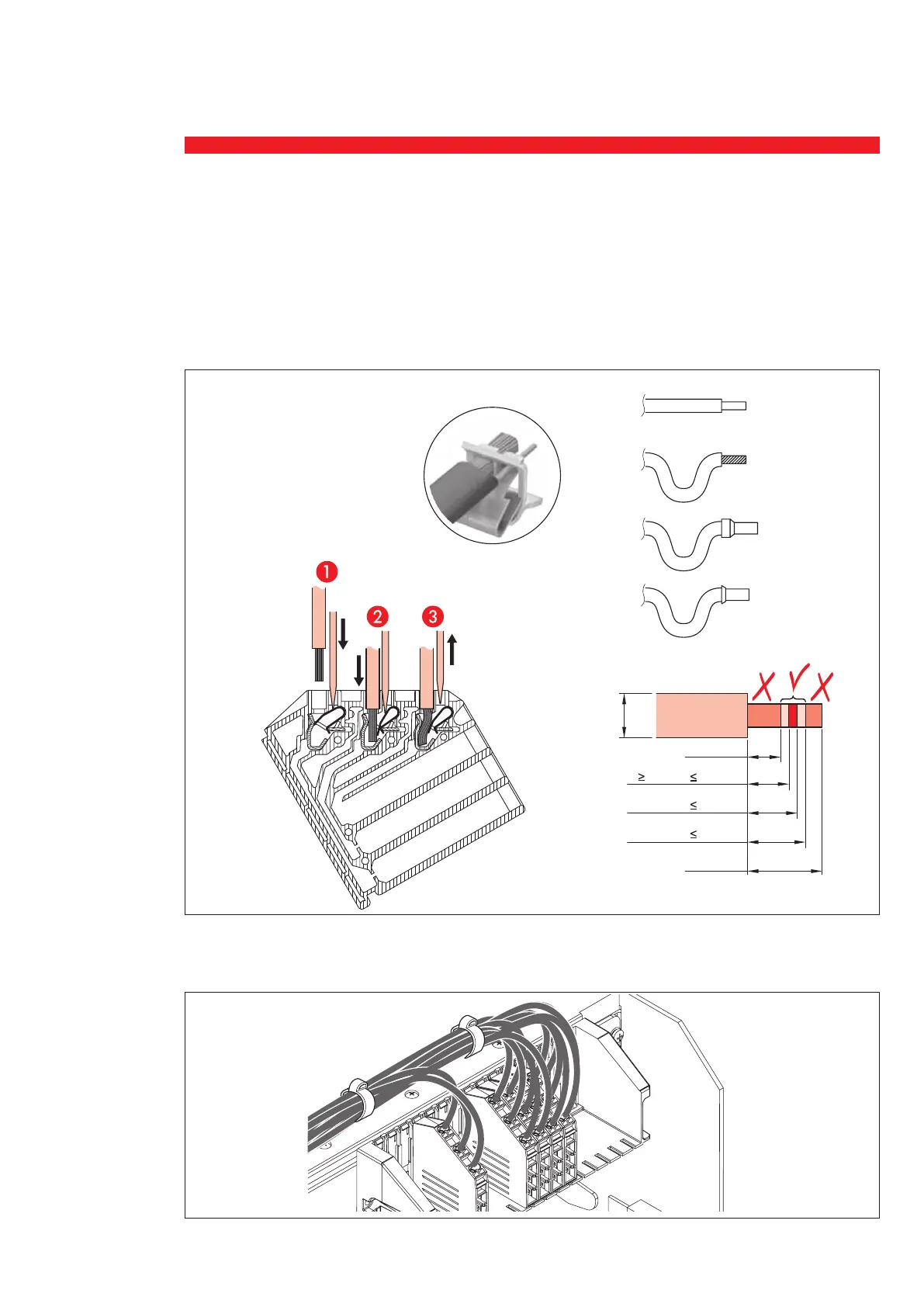

18. New cabling system
New automatic “Cage Clamps”.
Constant press on cable guarantee maximum
contact during time.
Shape form of spring avoid the problem of incision
of insulation.
1. Put the screwdriver: the clamp open.
2. Put the cable.
3. Extract the screwdriver: clamp automatically lock the
cable.
Detail: Electrical contact is guaranteed with max
flexible cable diameter up to 2,5 mm
2
, also with
two cable of different sections.
< 8 mm
8 mm
10 mm
12 mm
>10 mm
14 mm
>12 mm
>14 mm
1÷2,5 mm²
1÷2,5 mm²
1÷1,5 mm²
2,5 mm²
Détails
To have a better order and safety when cabling
operations are done, the draw-out version of the
DMX
3
has several buttonholes useful to collect all
the cables with cable ties as shown.
