1120 PCI Express Mini Card for wireless LAN
For access, remove these FRUs in order:
v “1010 Battery pack” on page 80
v “1030 Optical drive or travel cover” on page 84
v “1110 Palm rest assembly with cables” on page 98

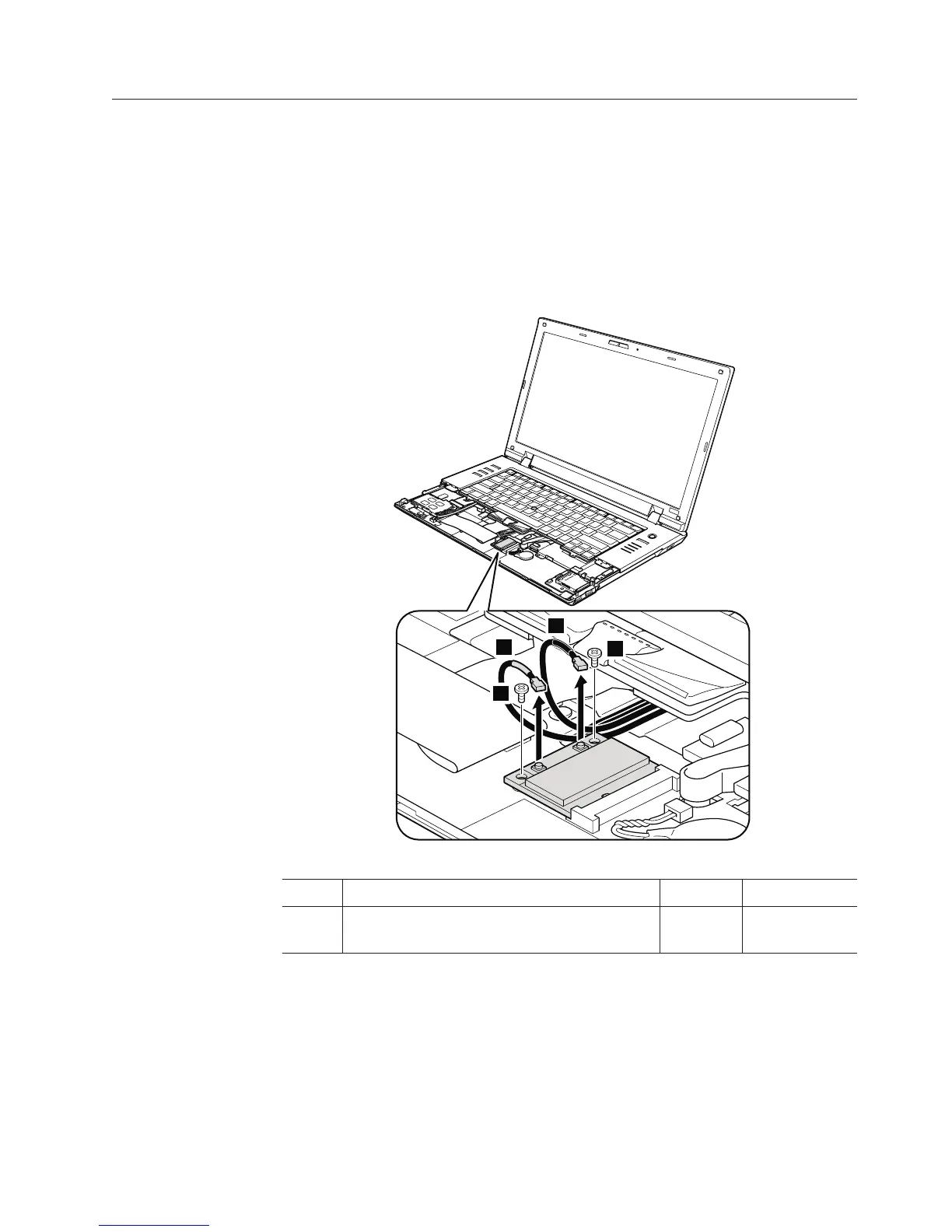

Table 21. Removal steps of PCI Express Mini Card for wireless LAN
In step 1a and 1b, unplug the jacks by using the removal tool antenna RF
connector (P/N: 08K7159) or pick the connectors with your fingers and gently
unplug them in direction of the arrow.
1a
1b
2
2
Step Screw (quantity) Color Torque
2 M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 101
