2030 Integrated camera
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 80
v “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 96
v “1110 Palm rest assembly with cables” on page 98
v “1120 PCI Express Mini Card for wireless LAN” on page 101
v “1160 Keyboard” on page 107
v “1170 Keyboard bezel” on page 110
v “1180 LCD unit” on page 112
v “2010 LCD front bezel” on page 136
v “2020 Speaker assembly” on page 137

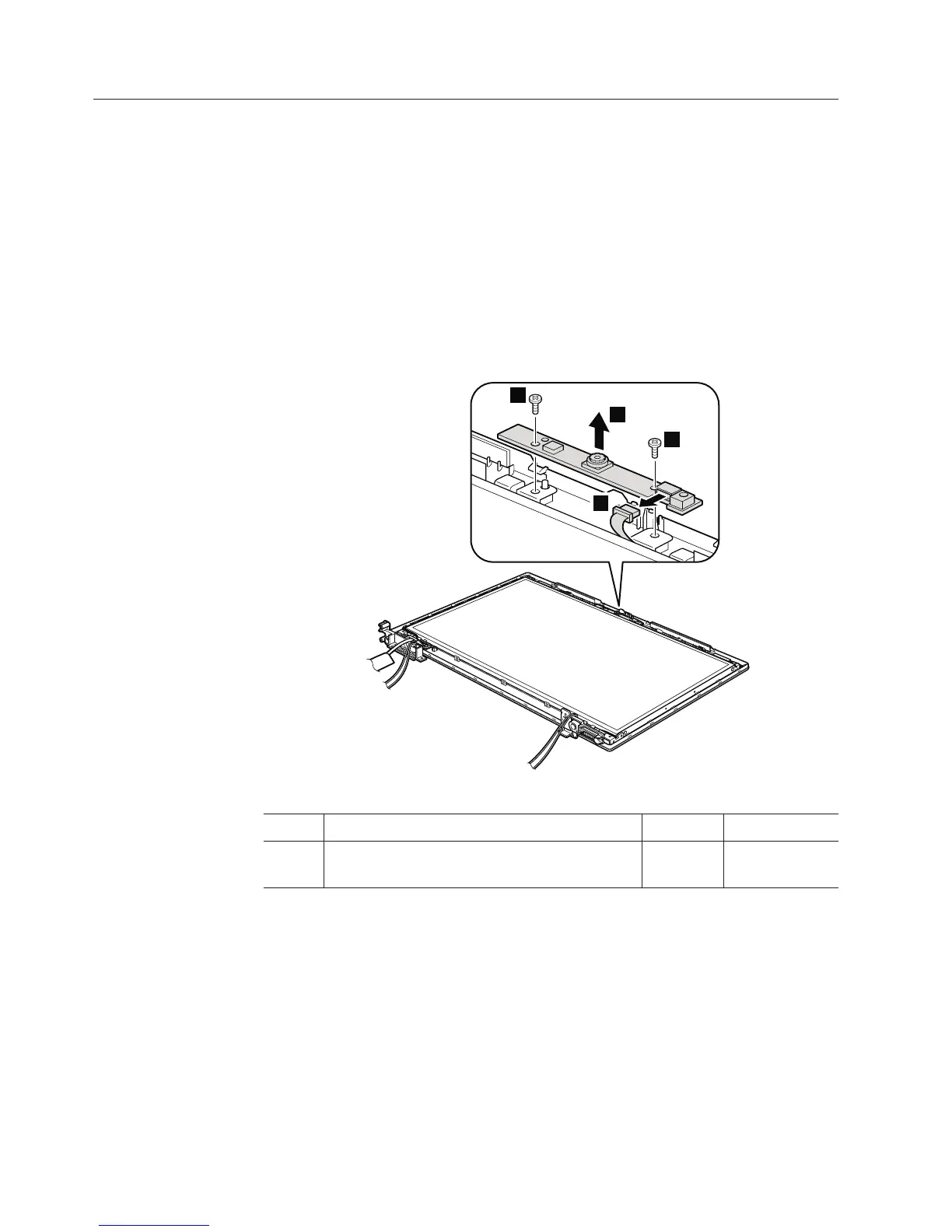

Table 37. Removal steps of integrated camera
1
1
2
3
Step Screw (quantity) Color Torque
1 M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
When installing: Make sure that the connector is attached firmly.
138 ThinkPad SL410, L410, L412, SL510, L510, and L512 Hardware Maintenance Manual
