ExpressCard
blank
bezel
and
Media
Card
blank
bezel
T
able
9.
Removal
steps
of
ExpressCard
blank
bezel

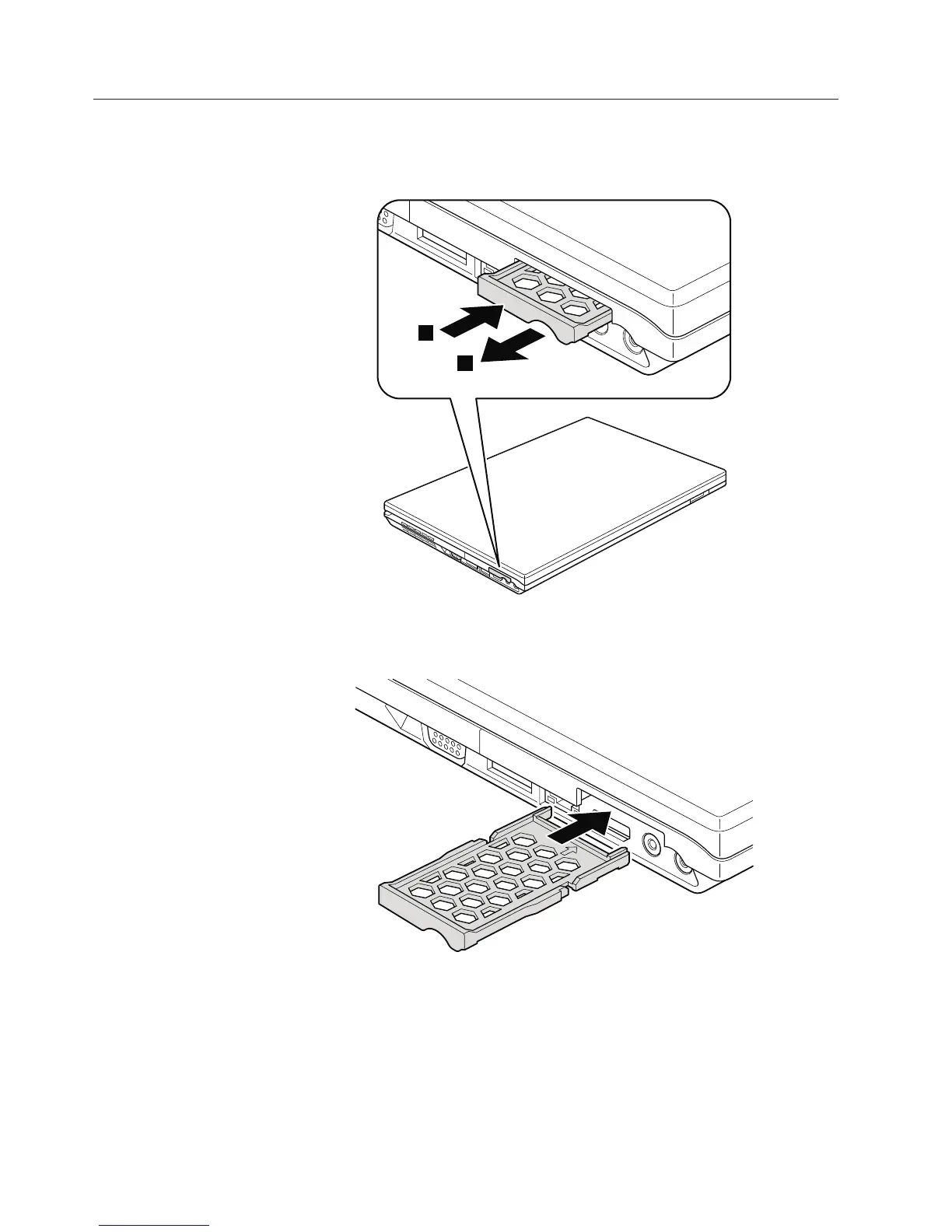

When
you
pr
ess
the
ExpressCar
d
blank
bezel
1
,
it
pops
out
2
.
1
2
When
installing:
Make
sure
that
the
bezel
is
correctly
oriented
as
shown
in
this
figure.
82
ThinkPad
SL410,
L410,
L412,
SL510,
L510,
and
L512
Hardware
Maintenance
Manual
89
