1150 Media Card Reader slot board and Media Card Reader cable
assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 80
v “1020 ExpressCard blank bezel and Media Card blank bezel” on page 82
v “1030 Optical drive or travel cover” on page 84
v “1090 SIM slot cover” on page 94
v “1110 Palm rest assembly with cables” on page 98

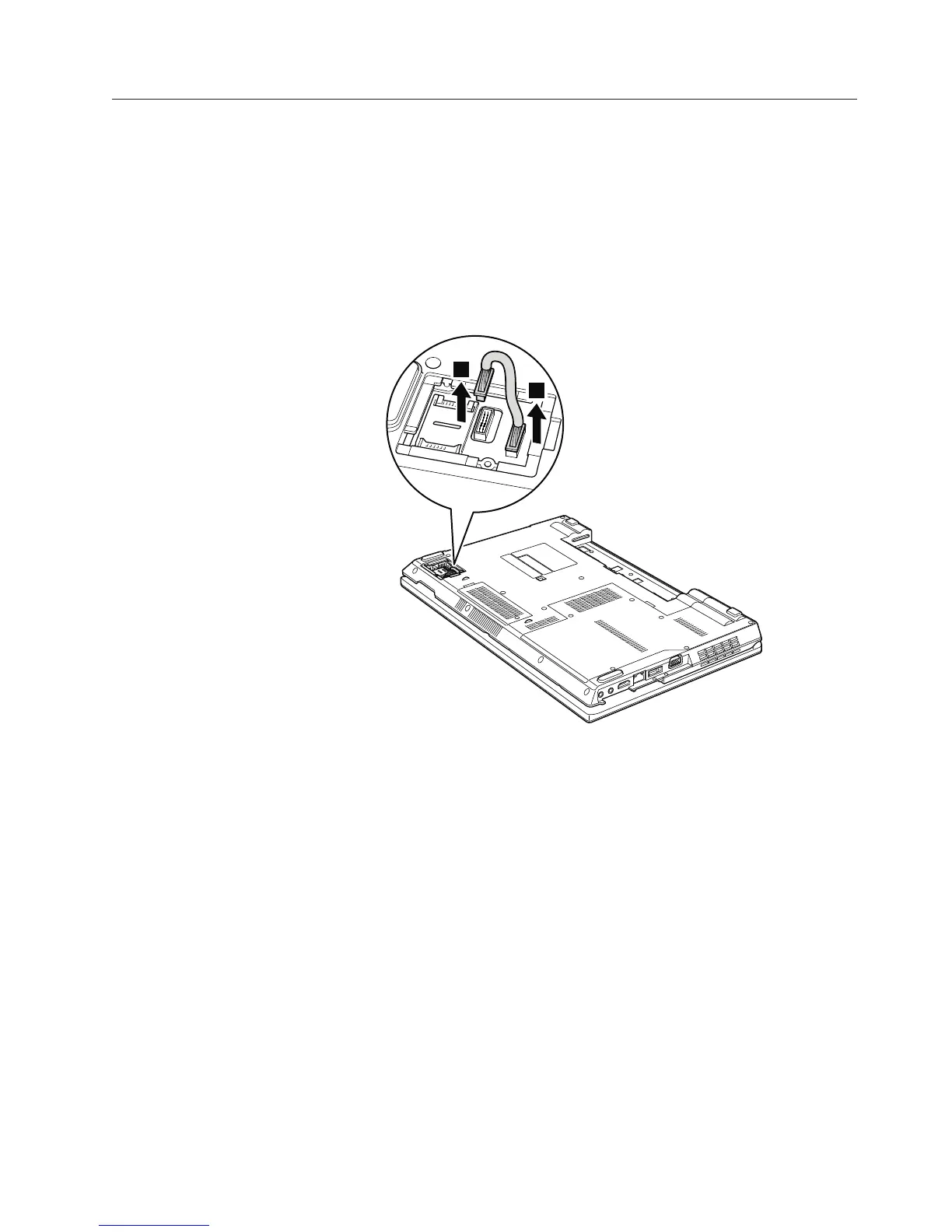

Table 24. Removal steps of Media Card Reader slot board and Media Card Reader cable
assembly
1
1
When installing: Make sure that the Media Card Reader cable assembly is
attached firmly to the system board and the Media Card Reader slot board.
Removing and replacing a FRU 105
