1170 Keyboard bezel
For access, remove these FRUs in order:
v “1010 Battery pack” on page 80
v “1030 Optical drive or travel cover” on page 84
v “1070 Fan assembly” on page 89
v “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 96
v “1110 Palm rest assembly with cables” on page 98
v “1120 PCI Express Mini Card for wireless LAN” on page 101
v “1160 Keyboard” on page 107

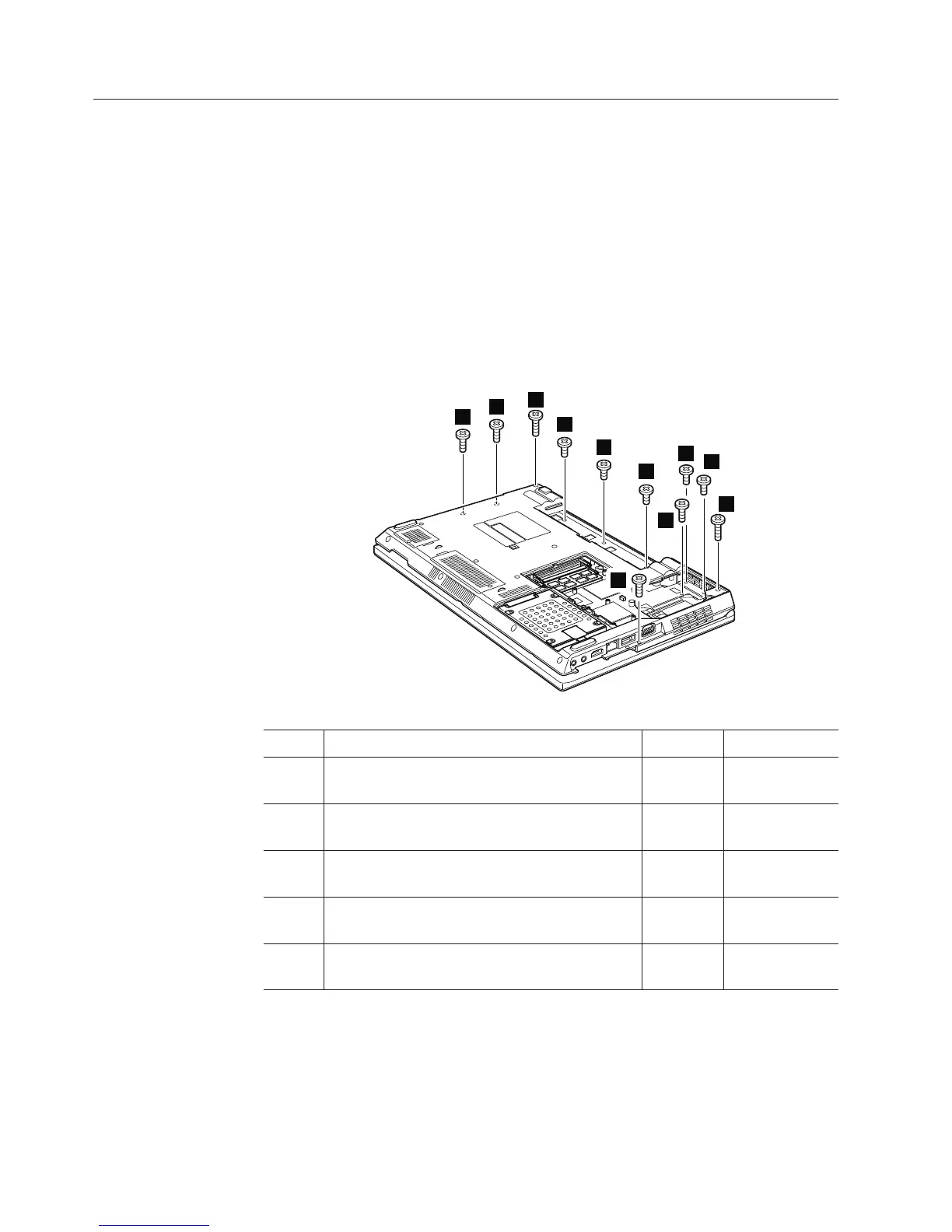

Table 27. Removal steps of keyboard bezel
Note: Steps 2a and 3a are only for ThinkPad SL510, L510, and L512. For
ThinkPad SL410, L410, and L412, skip steps 2a and 3a.
3
3
3
1
3a
1
2
2
2
2a
2a
Step Screw (quantity) Color Torque
1 M2.5 × 6.5 mm, wafer-head, nylon-coated
(2)
Black 0.392 Nm
(4 kgfcm)
2 M2 × 3 mm, wafer-head, nylon-coated (3) Black 0.181 Nm
(1.85 kgfcm)
2a M2 × 3 mm, wafer-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgfcm)
3 M2 × 5 mm, wafer-head, nylon-coated (3) Black 0.181 Nm
(1.85 kgfcm)
3a M2 × 5 mm, wafer-head, nylon-coated (1) Black 0.181 Nm
(1.85 kgfcm)
110 ThinkPad SL410, L410, L412, SL510, L510, and L512 Hardware Maintenance Manual
