1190 Top shielding assembly
For access, remove these FRUs in order:
v “1010 Battery pack” on page 80
v “1030 Optical drive or travel cover” on page 84
v “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 96
v “1110 Palm rest assembly with cables” on page 98
v “1120 PCI Express Mini Card for wireless LAN” on page 101
v “1160 Keyboard” on page 107
v “1170 Keyboard bezel” on page 110
v “1180 LCD unit” on page 112

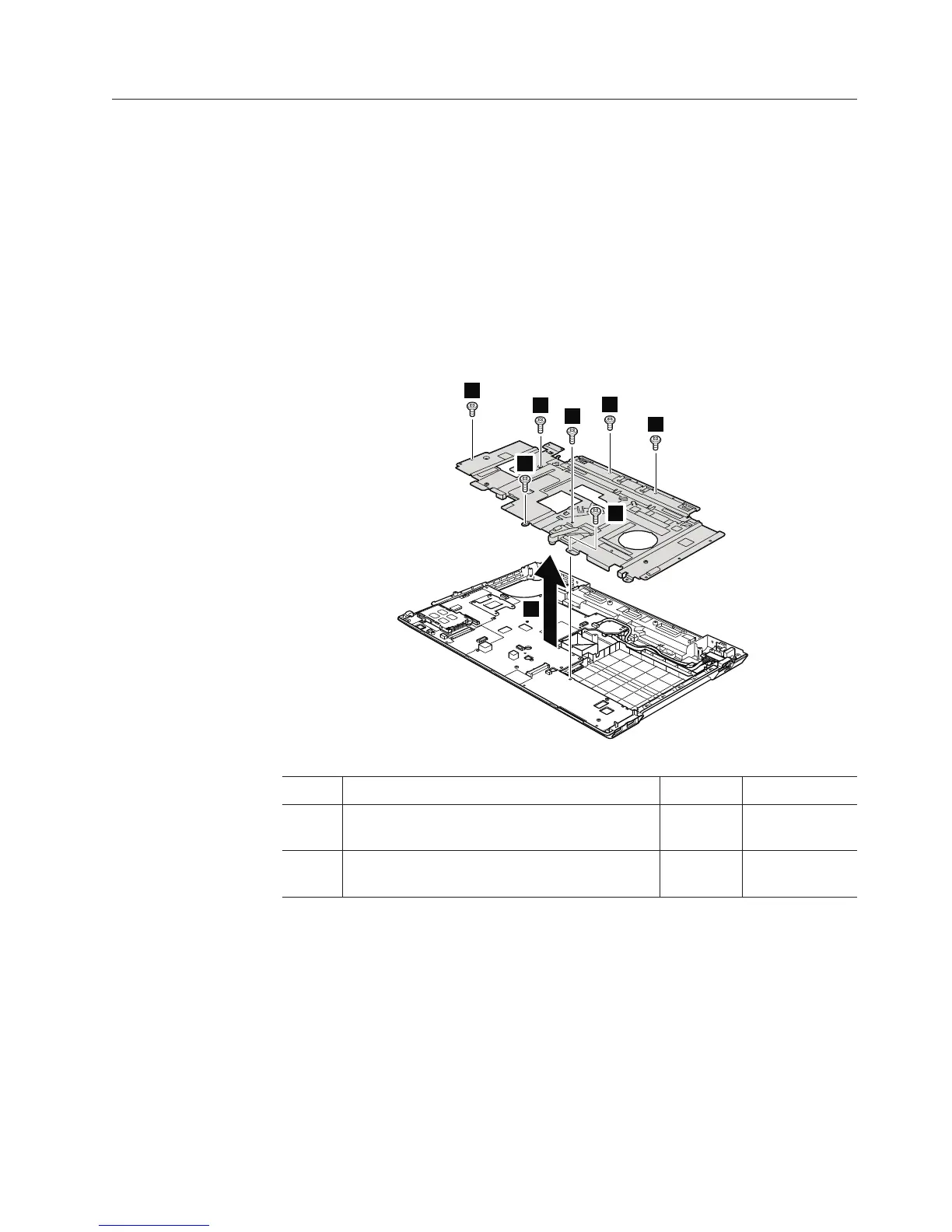

Table 29. Removal steps of top shielding assembly
For ThinkPad SL510 and L510:
3
1
1
1
2
2
2
2
Step Screw (quantity) Color Torque
1 M2 × 3 mm, wafer-head, nylon-coated (3) Black 0.181 Nm
(1.85 kgfcm)
2 M2 × 5 mm, wafer-head, nylon-coated (4) Black 0.181 Nm
(1.85 kgfcm)
Removing and replacing a FRU 117
