1180 LCD unit
For access, remove these FRUs in order:
v “1010 Battery pack” on page 80
v “1030 Optical drive or travel cover” on page 84
v “1100 Wireless WAN slot cover and PCI Express Mini Card for wireless WAN”
on page 96
v “1110 Palm rest assembly with cables” on page 98
v “1120 PCI Express Mini Card for wireless LAN” on page 101
v “1160 Keyboard” on page 107
v “1170 Keyboard bezel” on page 110

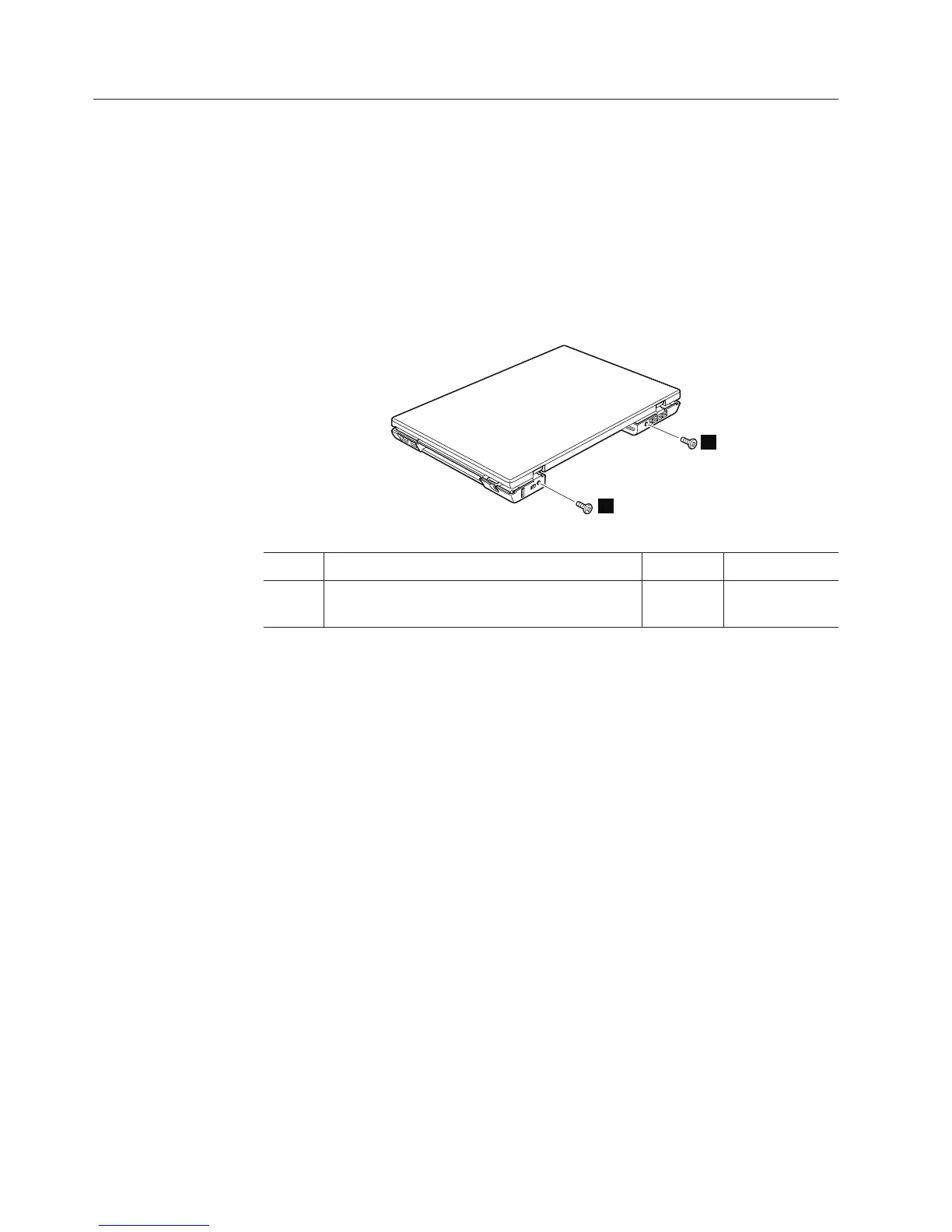

Table 28. Removal steps of LCD unit
1
1
Step Screw (quantity) Color Torque
1 M2.5 × 6.5 mm, wafter-head, nylon-coated
(2)
Black 0.392 Nm
(4 kgfcm)
112 ThinkPad SL410, L410, L412, SL510, L510, and L512 Hardware Maintenance Manual
