Lenovo ThinkPad T15 Gen 1 User Manual

2. Left-click button
Press to select or open an item.
3. Right-click button
Press to display a shortcut menu.
4. Middle button
Press and hold the dotted middle button while applying pressure to the pointing stick in the vertical or
horizontal direction. Then, you can scroll through the document, Web site, or apps.
Disable the TrackPoint pointing device
The TrackPoint pointing device is active by default. To disable the device:
1. Open the Start menu, and then click Settings ➙ Devices ➙ Mouse.
2. Follow the on-screen instructions to disable TrackPoint.

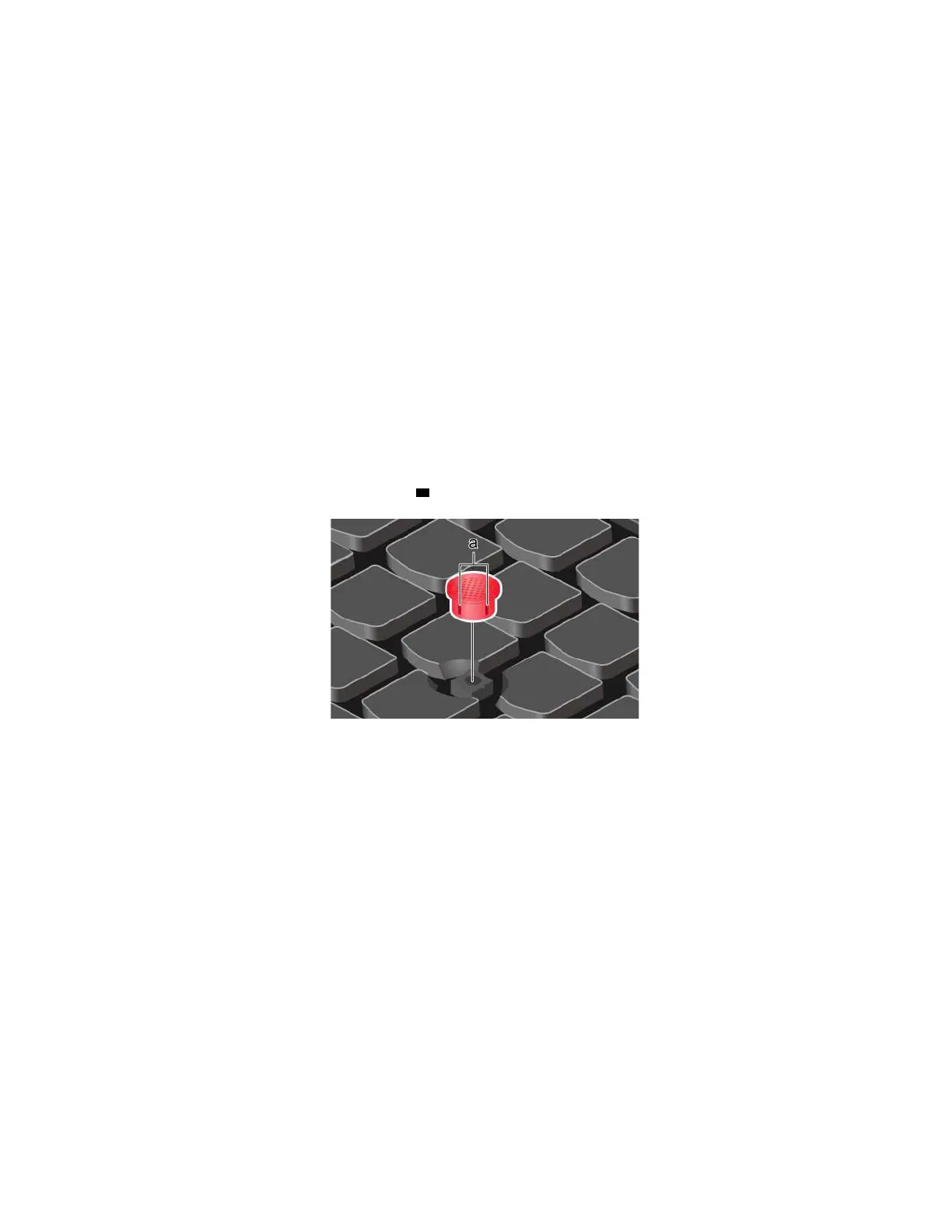

Replace the pointing-stick nonslip cap
Note: Ensure that the new cap has grooves
a .
Use the trackpad
The entire trackpad surface is sensitive to finger touch and movement. You can use the trackpad to perform
all the pointing, clicking, and scrolling functions of a traditional mouse.
Chapter 2. Get started with your computer 23

Lenovo ThinkPad T15 Gen 1 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polyphenylene sulfide (PPS)
Market positioning	Business
Numeric keypad	Yes
Keyboard layout	QWERTY
Pointing device	ThinkPad UltraNav
Keyboard language	Nordic
Display diagonal	15.6 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	250 cd/m²
Native aspect ratio	16:9
Operating system architecture	64-bit
Processor cache	6 MB
Processor cores	4
Processor family	Intel® Core™ i5
Configurable TDP-up	25 W
Processor frequency	1.6 GHz
Configurable TDP-down	10 W
Processor manufacturer	Intel
Processor boost frequency	4.2 GHz
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Motherboard chipset	Intel SoC
Memory slots	1x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory form factor	On-board + SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	40 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
SSD form factor	M.2
Total storage capacity	256 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Battery capacity	57 Wh
Battery life (max)	15.26 h
AC adapter power	65 W
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Cable lock slot type	Kensington
Password protection type	HDD, Power on, Supervisor
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Speaker power	2 W
Number of built-in speakers	2
Privacy type	Privacy shutter
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
WWAN	Installed
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN data rates	100, 1000 Mbit/s
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
HDMI version	1.4b
USB 2.0 ports quantity	0

Weight and Dimensions

Depth	248 mm
Width	365.8 mm
Height	19.1 mm
Weight	1810 g
