Always On USB and Charge in Battery Mode are enabled in UEFI BIOS of both computers, so that the
function works even when the computers are off or in hibernation mode. To enable Always On USB and
Charge in Battery Mode:
1. Enter the UEFI BIOS menu. See “Enter the UEFI BIOS menu” on page 49.
2. Click Config USB to enable Always On USB and Charge in Battery Mode.

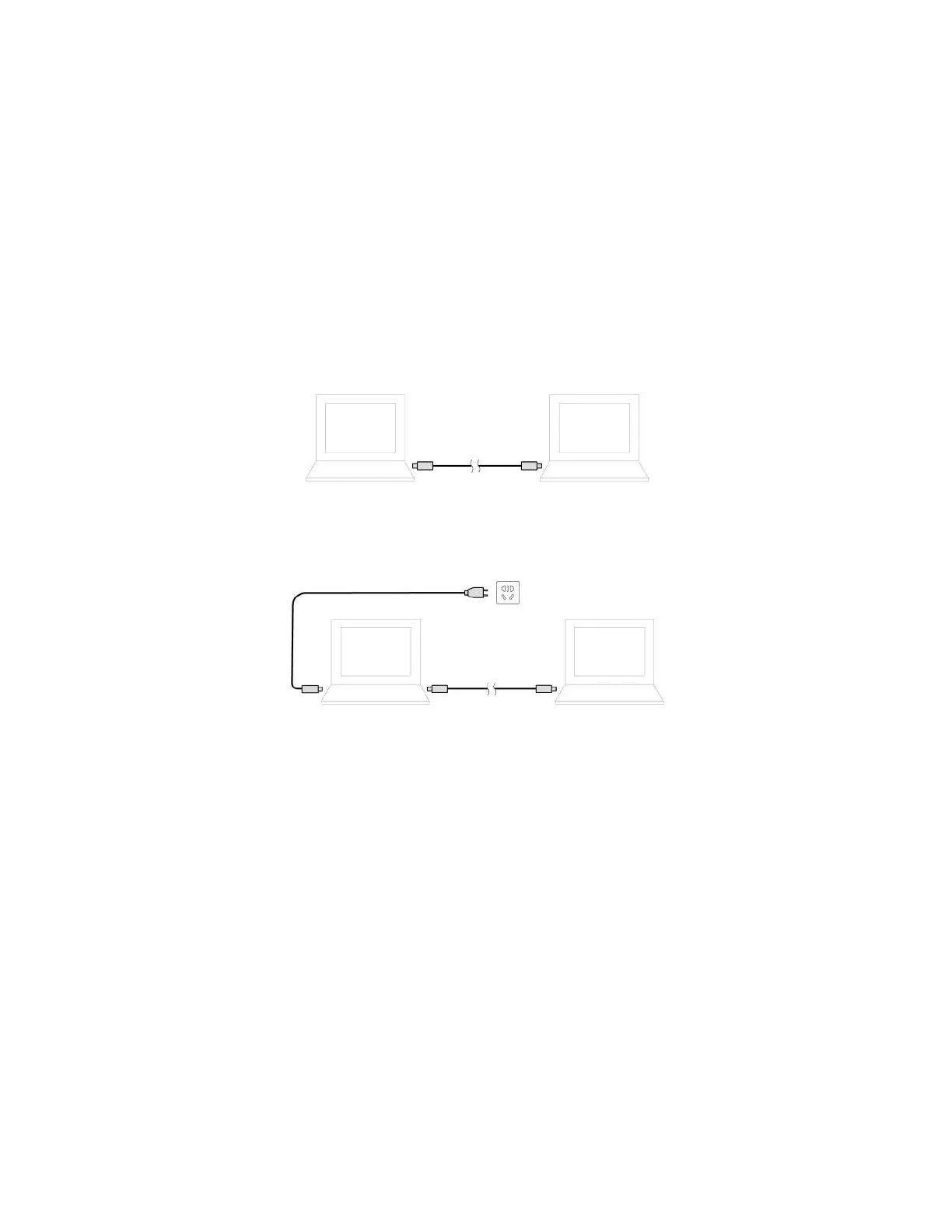

To use the function:
When no ac power is available:
The remaining battery power of computer A should be at least 30% and be 3% higher than that of
computer B. To check the battery status, see “Check the battery status and temperature” on page 31.
Connect the computers to each other with a USB-C to USB-C cable. In this situation, computer A works
as the power supply. Once the remaining battery power of computer A is lower than 30%, computer A
stops supplying power to computer B.
When ac power is available:
Connect the computers to each other with a USB-C to USB-C cable. Connect one computer to ac power.
In this situation, ac power works as the power supply and both computers get charged.
Note: The actual charging speed using the Lenovo-unique P-to-P 2.0 charging function varies depending on
many factors, such as the remaining battery power of the computers, the wattage of the ac power adapter,
and whether you are using the computers.
Maximize the battery life
Lower the brightness of the computer display.
Turn off the wireless features when not in use.
Use the battery until the charge is depleted.
Recharge the battery completely before using it.
Set power button behaviors
You can define what the power button does according to your preference. For example, by pressing the
power button, you can turn off the computer or put the computer to sleep or hibernation mode.
To change what the power button does:
1. Right-click the battery status icon in the Windows notification area.
2. Click Power Options Choose what the power buttons do.
32
T14 Gen 1, T15 Gen 1, P14s Gen 1, and P15s Gen 1 User Guide

Table of Contents

Other manuals for Lenovo ThinkPad T15 Gen 1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lenovo ThinkPad T15 Gen 1 and is the answer not in the manual?

Lenovo ThinkPad T15 Gen 1 Specifications

General IconGeneral
Form factorClamshell
Product typeLaptop
Product colorBlack
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polyphenylene sulfide (PPS)
Market positioningBusiness
Numeric keypadYes
Keyboard layoutQWERTY
Pointing deviceThinkPad UltraNav
Keyboard languageNordic
Display diagonal15.6 \
Anti-glare screenAlways gives an optimal view, even in direct sunlight.
Display brightness250 cd/m²
Native aspect ratio16:9
Operating system architecture64-bit
Processor cache6 MB
Processor cores4
Processor familyIntel® Core™ i5
Configurable TDP-up25 W
Processor frequency1.6 GHz
Configurable TDP-down10 W
Processor manufacturerIntel
Processor boost frequency4.2 GHz
Configurable TDP-up frequency2.1 GHz
Configurable TDP-down frequency0.8 GHz
Motherboard chipsetIntel SoC
Memory slots1x SO-DIMM
Internal memory8 GB
Memory channelsDual-channel
Memory form factorOn-board + SO-DIMM
Internal memory typeDDR4-SDRAM
Maximum internal memory40 GB
SSD capacityThe Solid State Drive's storage capacity in Gigabytes.
Storage mediaSSD
SSD form factorM.2
Total storage capacity256 GB
Compatible memory cardsMicroSD (TransFlash)
Number of SSDs installed1
Battery capacity57 Wh
Battery life (max)15.26 h
AC adapter power65 W
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics
Cable lock slot typeKensington
Password protection typeHDD, Power on, Supervisor
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC3287
Audio systemDolby Audio
Speaker power2 W
Number of built-in speakers2
Privacy typePrivacy shutter
Front camera HD typeHD
Front camera resolution1280 x 720 pixels
WWANInstalled
Bluetooth version5.2
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX201
Ethernet LAN data rates100, 1000 Mbit/s
Sustainability certificatesENERGY STAR, EPEAT Gold, RoHS, TCO
HDMI version1.4b
USB 2.0 ports quantity0
Weight and Dimensions IconWeight and Dimensions
Depth248 mm
Width365.8 mm
Height19.1 mm
Weight1810 g
