Lenovo ThinkPad T15 Gen 1 User Manual

Always On USB 3.2 connector Gen 1 board
Prerequisite
Before you start, read Appendix A “Important safety information” on page 87 and print the following
instructions.
Replacement procedure
1. Disable the built-in battery. See “Disable Fast Startup and the built-in battery” on page 55.
2. Turn off the computer and disconnect the computer from ac power and all connected cables. Then,
close the computer display.
3. Remove the nano-SIM-card tray if your computer comes with one. See “Connect to a cellular network
(for selected models)” on page 17.
4. Remove the base cover assembly. See “Base cover assembly (T14 Gen 1 and P14s Gen 1)” on page 56
or “Base cover assembly (T15 Gen 1 and P15s Gen 1)” on page 58.

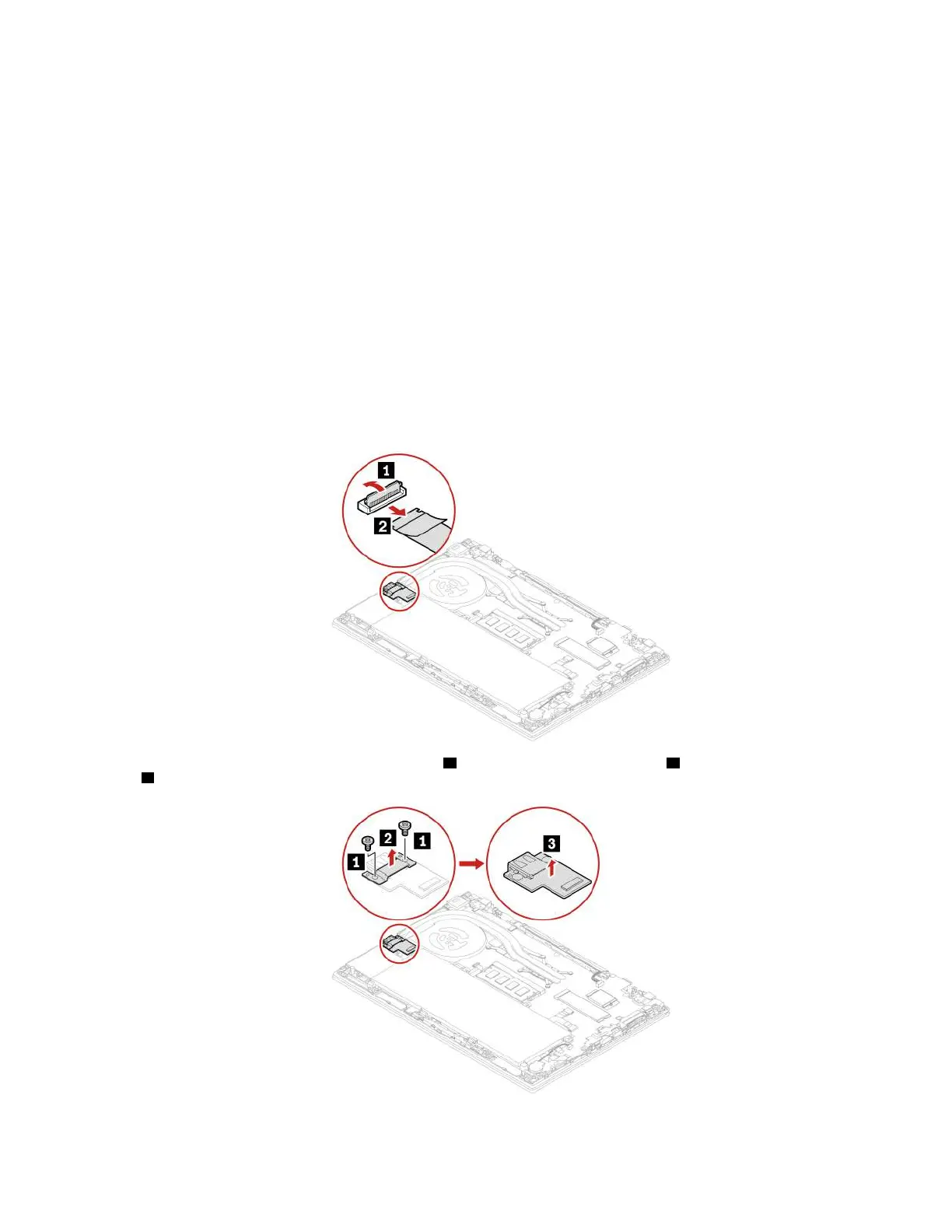

5. Detach the connector of the Always On USB 3.2 connector Gen 1 board (hereafter referred to as board).
6. Remove the screws that secure the bracket 1 , and then remove the bracket 2 . Then, remove the board
3 .
Chapter 7. CRU replacement 77

Lenovo ThinkPad T15 Gen 1 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polyphenylene sulfide (PPS)
Market positioning	Business
Numeric keypad	Yes
Keyboard layout	QWERTY
Pointing device	ThinkPad UltraNav
Keyboard language	Nordic
Display diagonal	15.6 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	250 cd/m²
Native aspect ratio	16:9
Operating system architecture	64-bit
Processor cache	6 MB
Processor cores	4
Processor family	Intel® Core™ i5
Configurable TDP-up	25 W
Processor frequency	1.6 GHz
Configurable TDP-down	10 W
Processor manufacturer	Intel
Processor boost frequency	4.2 GHz
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Motherboard chipset	Intel SoC
Memory slots	1x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory form factor	On-board + SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	40 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
SSD form factor	M.2
Total storage capacity	256 GB
Compatible memory cards	MicroSD (TransFlash)
Number of SSDs installed	1
Battery capacity	57 Wh
Battery life (max)	15.26 h
AC adapter power	65 W
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
Cable lock slot type	Kensington
Password protection type	HDD, Power on, Supervisor
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC3287
Audio system	Dolby Audio
Speaker power	2 W
Number of built-in speakers	2
Privacy type	Privacy shutter
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
WWAN	Installed
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN data rates	100, 1000 Mbit/s
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS, TCO
HDMI version	1.4b
USB 2.0 ports quantity	0

Weight and Dimensions

Depth	248 mm
Width	365.8 mm
Height	19.1 mm
Weight	1810 g
