Lenovo ThinkPad USB 3.0 Dock User Manual

2.Connectthedc-inconnectorofthepoweradaptertothedock.
3.Connectthepowerplugofthepowercordtoanelectricaloutlet.Pressthepowerbuttontoturnon
thedock.
Note:Besuretocorrectlyconnectthedocktothepowersupply.Ifthedockisnotpoweredon,
youwillnotbeabletousethedock.
4.ConnecttheUSBBplugoftheUSB3.0cabletotheUSB3.0upstreamconnectoronthedock.
5.ConnecttheUSBAplugoftheUSB3.0cabletoanavailableUSBconnectoronthenotebook
computer.

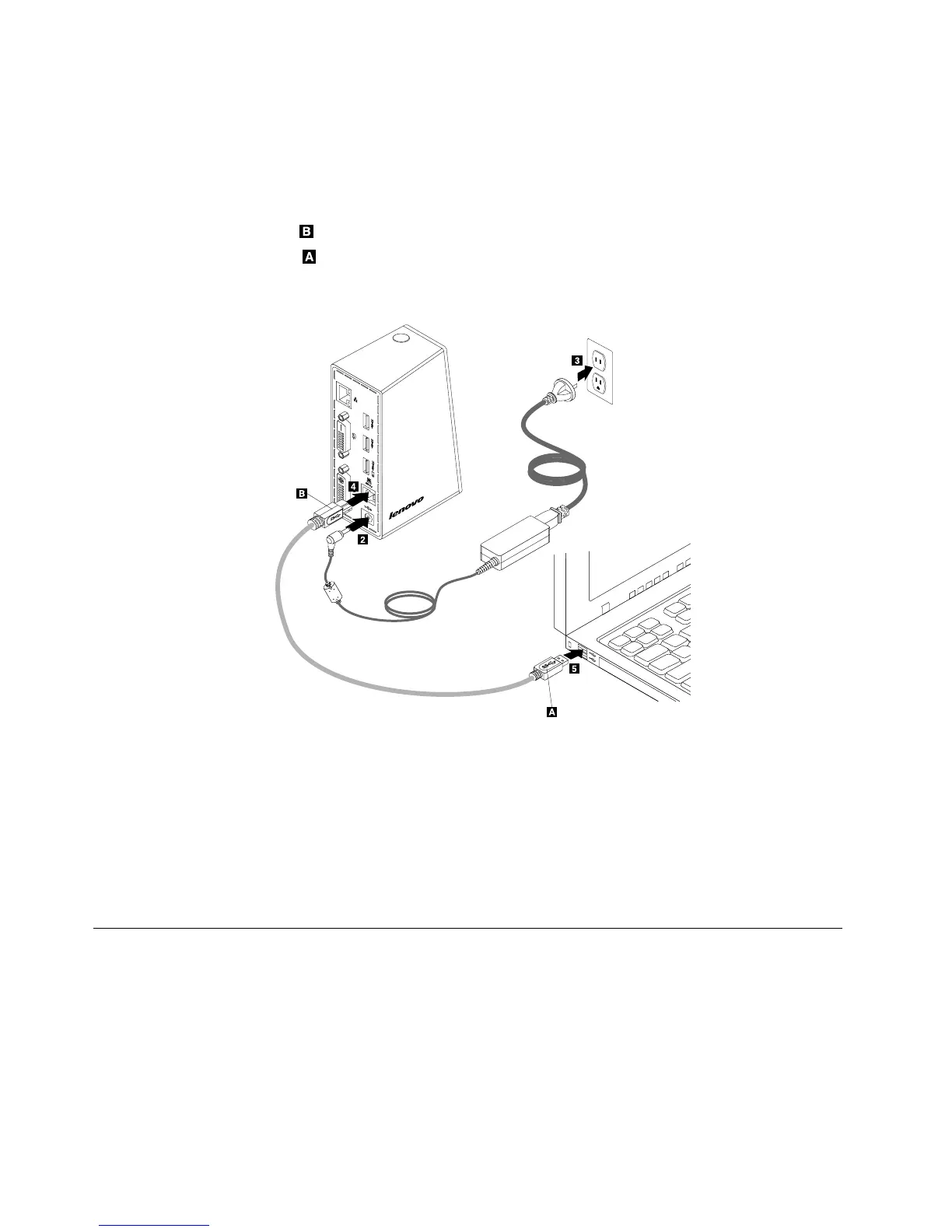

Figure3.Connectingthedocktothepowersupplyandnotebookcomputer
Notes:
•Thedockwillnotsupplypowertothenotebookcomputerduringthetimewhenitisconnectedtothe
notebookcomputer.
•ConnectingthedocktoanyconnectorotherthanaUSB3.0connectororusinganyUSBcableother
thanaUSB3.0cablemightimpactonthedockperformance,especiallythevideoplaybackandEthernet
performance.However,thesupportedmaximumresolutionwillnotbereduced.
InstallingthedevicedriveronWindowsoperatingsystems
Afteryouhaveconnectedthedocktoyournotebookcomputer,youcaninstallthedevicedriveronthe
SoftwareandUserGuideCD.
6UserGuide

Lenovo ThinkPad USB 3.0 Dock Specifications

General

Microphone in	Yes
DVI-I ports quantity	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Card reader integrated	No
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	91 mm
Width	48 mm
Height	126 mm
Weight	299 g
