Technical data
Mechanical data
EL 1xx CAN/PLC/MPI
4
21
LDCDS−EL100 EN 8.0

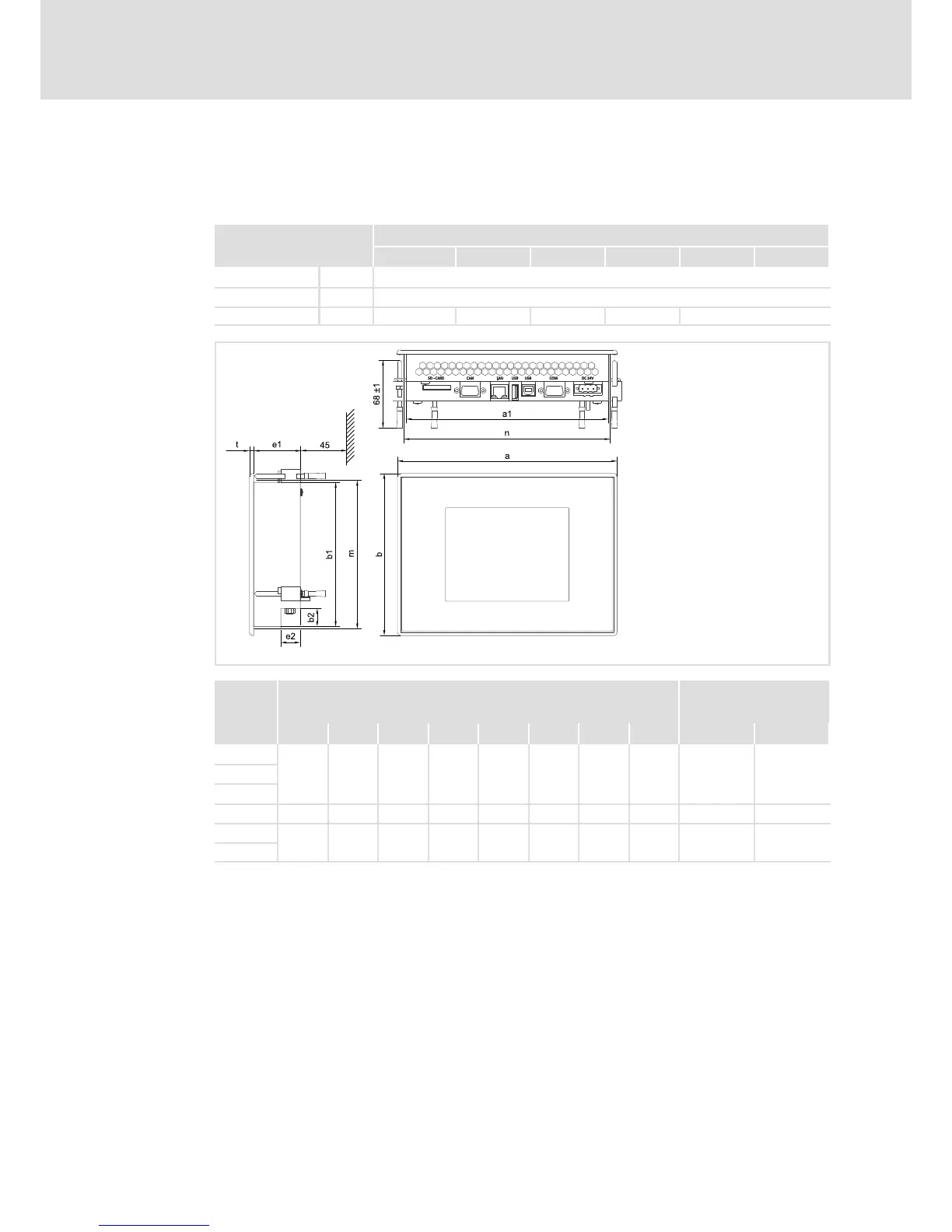

4.3 Mechanical data
4.3.1 EL 1xx CAN/PLC/MPI
Design and weight
Type EL xxx
105m 105 106 108 110 110s
Front Aluminium with polyester film to DIN 42115
Cover Sheet steel, galvanised
Weight [kg] 1.1 1.1 1.2 1.5 2.0
EL100−002
Type
Dimensions Mounting cutout
[mm] [mm]
a a1 b b1 b2 e1 e2 t n ±0.5 m ±0.5
EL 105
210
193 155 138 17.5 43.6 17.6 4 197 142
EL 105M
EL 106
EL 108 250 220 180 156.5 33.7 46 18 4 224 160.5
EL 110
275 257 220 201 75.5 46 18 4 261 205
EL 110s
