Mechanical installation

Dimensions

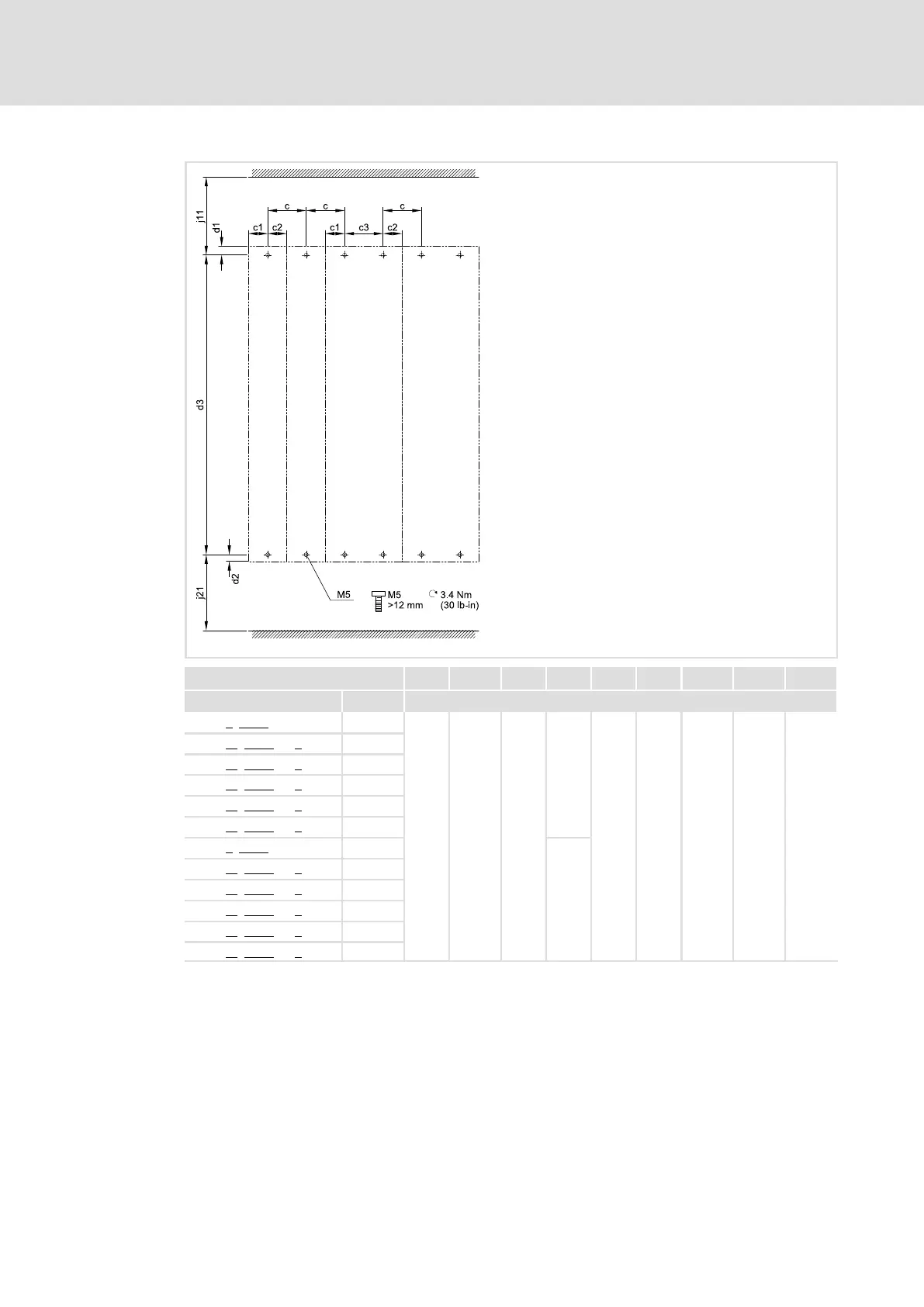

Mounting in "cold plate" technique

EDS700ACBA EN 5.1

i700S00x

c c1 c2 c3 d1 d2 d3 j11 j21

[A] [mm]

E70ACPSC0304x 30

50 25 25

−

10 10 390 90 70

E70ACMxC0054xx1xxx 5

E70ACMxC0104xx1xxx 10

E70ACMxC0204xx1xxx 20

E70ACMxC0054xx2xxx 2*5

E70ACMxC0104xx2xxx 2*10

E70ACPSC0604x 60

E70ACMxC0324xx1xxx 32

E70ACMxC0484xx1xxx 48

E70ACMxC0644xx1xxx 64

E70ACMxC0204xx2xxx 2*20

E70ACMxC0324xx2xxx 2*32
