Use this method for quicker anchor deployment, in an emergency involving loss of power or to save battery
power. Observe maritime anchor deployment safety rules.
WARNING! Isolate the wind-
lass using circuit breaker/
isolator.
For safety and performance Lewmar recommends the
use of matched Lewmar anchor rodes.
1. Remove cover.
2. Pull out control arm.
3. Feed anchor rope/chain into entry hole. Tie off to
suitable strong point.
4. Replace cover. Release control arm and wrap rope/
chain around gypsy.
5. Power load rest of anchor rope/chain.
Model V6 chain only
These models have the same loading procedure as
above but do not have a control arm.

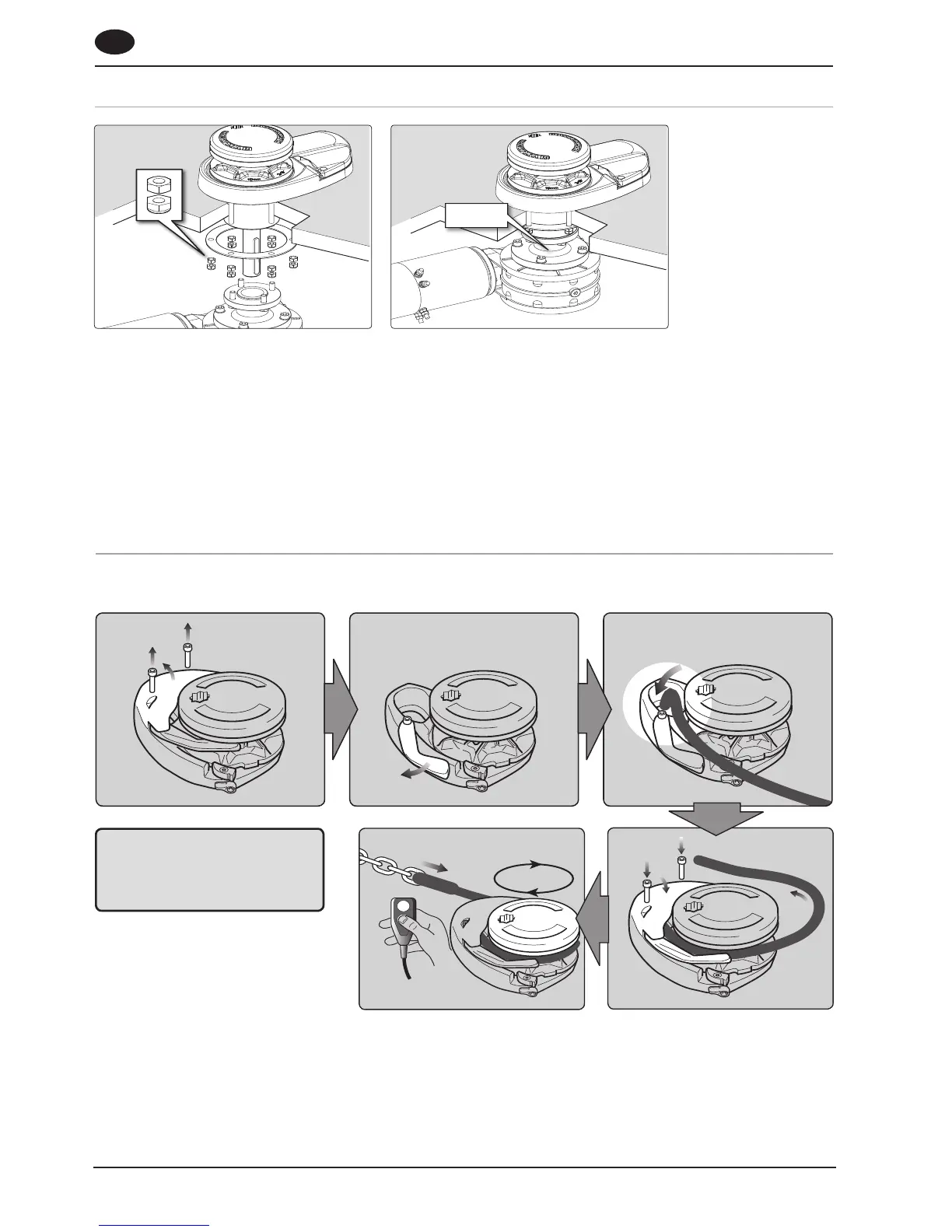

4.10 V6 Under deck fitting
Lightly grease all moving parts.
Slide the deck backing plate onto the windlass studs. Assemble the M10 nut first, secure with Loctite®
threadlock to 43 Nm torque. Lock tightened nut with spanner and then secure with the M10 Nyloc nut.
NOTE: If using silicone or other rubbery type sealant, it is advisable to allow curing of the sealant before final
tightening of the mounting nuts.
Ensure drive key is in place then gently slide the motor/gearbox up the drive sha until motor/gearbox mounting
plate meets the windlass downtube. Assemble the M10 bolts secure with Loctite® threadlock to 43 Nm torque.
NOTE: Position the motor/gearbox away from the rope/chain pipe fall.
4.11 V1-6 Loading rope/chain
