Lewmar V1 User Manual

Lewmar V1-6 Windlass ref 65001201 iss.8 | 7
V1-3 V4-6
300 mm
(12”)
±5°
300 mm
(12”)
±5°
4.6-1
4.6-2
4.6-3

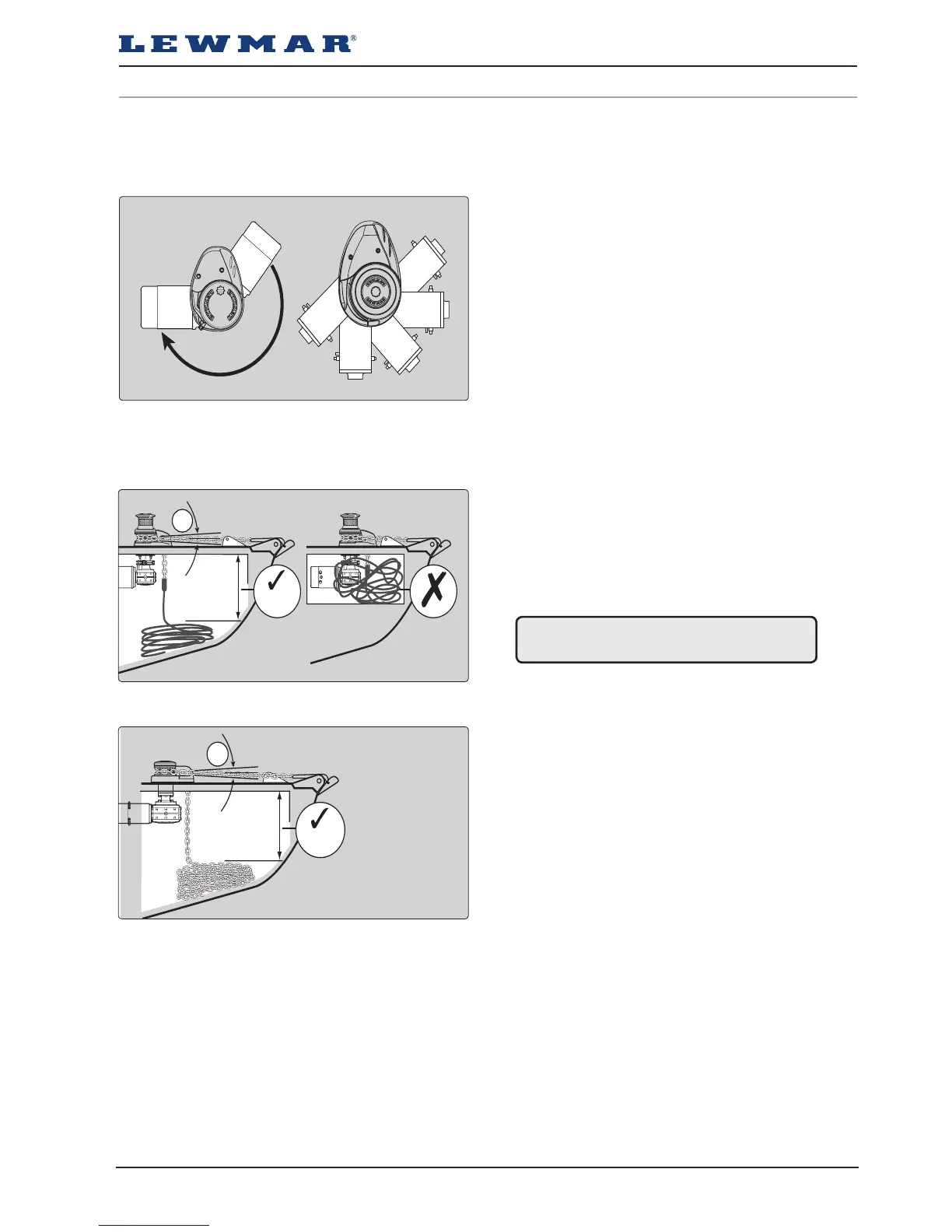

4.6 V1-6 Below deck preparation
IMPORTANT:
The positioning of the windlass must be checked prior to cutting for deck/hull and bulkhead clearance.
2. Models V1-5
Lead from the roller should be fed horizontally back
to the top of the gypsy and along its centre line within
±5˚. There must be sufficient vertical fall for the chain
or rope when hauling in.
3. Model V6 (Chain Only)
Chain from the roller should be fed horizontally back
to the top of the gypsy and along its centre line within
±5˚. There must be sufficient vertical fall for the chain
when hauling in.
1. Models V1-3
The motor/gearbox is connected by a fast fit clamp
enabling it to be rotated and fixed in any position 360
degrees.
Models V4-5
The motor/gearbox is bolted via the through deck
mounting bolts.
Models V6
The motor/gearbox is bolted directly to the base via a
down tube.
NOTE: In either case do not position motor/gearbox
below rode/chain pipe fall area.
 WARNING! Failure to provide minimum
vertical fall will cause jamming.
