4.3 Gypsy Suitability
Gypsies fitted to the V1-5 range of windlasses are ideally suited to handling our factory made Rope/Chain com-
bination rodes, which consist of rope spliced to a chain tail. The V6 range is chain only. See Specifications section
for details.
Ropes used must be windlass grade, medium lay nylon. Ropes from different manufacturers have wide variations
in stretch and consistency in diameter. Therefore, rope and chain from other manufacturers may require some
experimentation to determine the optimum size.
Should you have difficulty in matching a gypsy to your chain please consult your local agent or our international
network of distributors.

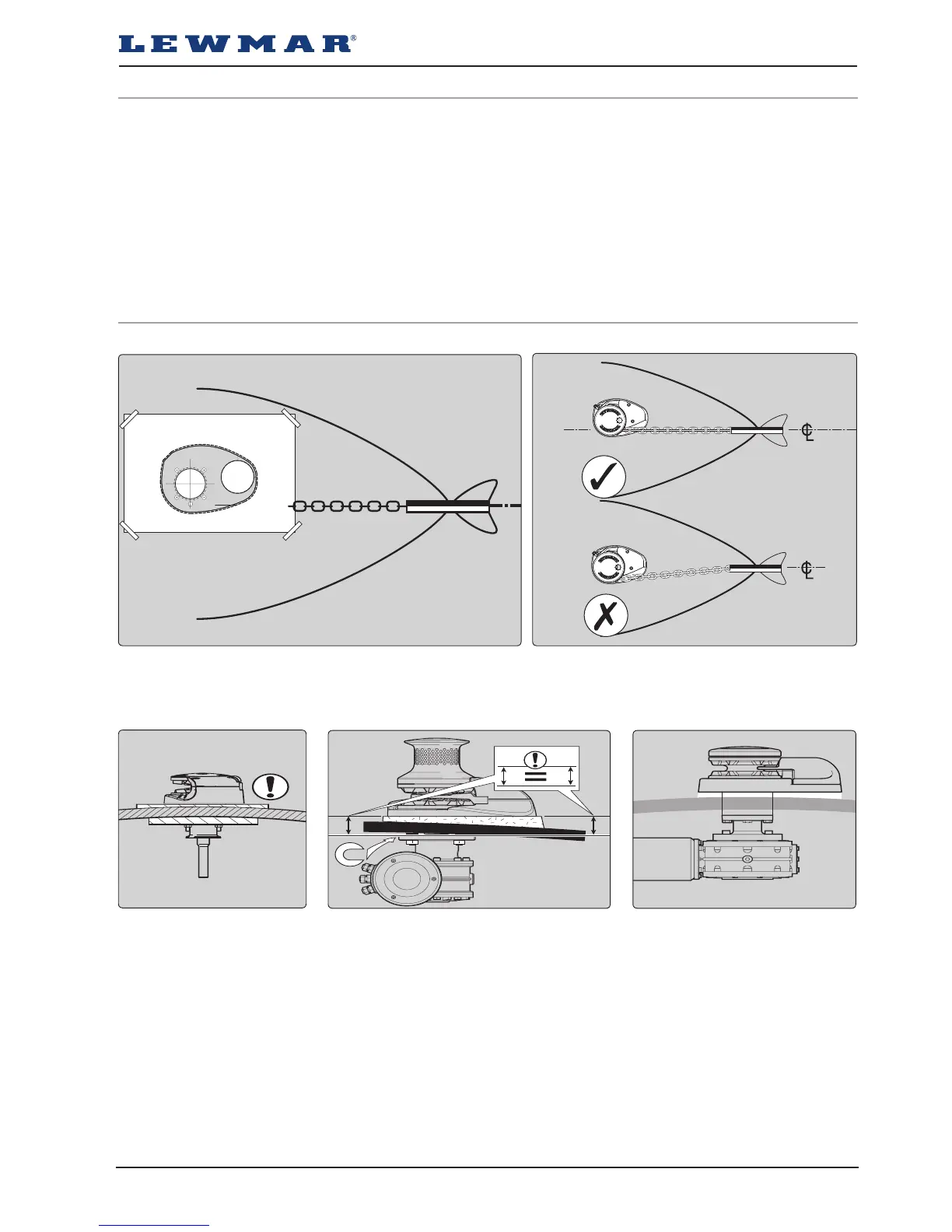

4.4 V1-6 Above deck preparation
IMPORTANT - Plan location carefully and allow for the following:
Notes
If in doubt about the suitable construction of the pad consult a qualified marine engineer.
Decks that are thin, or of foam or balsa laminate construction, will require reinforcement in order to spread the loads
that will be applied to the deck while the windlass is in use
2. Models V1-3
If the deck is not flat, a
suitable mounting pad
may be required to take
up camber or sheer.
3. Models V4-5
If a pad is required for these models,
care must be taken to ensure that the
windlass base is parallel to the motor/
gearbox mounting flange. Shims may
be used, before the motor/gearbox is
installed, to correct minor misalignment.
4. Model V6
If the deck is not flat, a suitable
mounting pad may be required
to take up camber or sheer.
1. Make an accurate drilling template using the product dimensions from the dimension template and decide
upon a position for it with reference to the vessel’s bow roller and the chain locker below and the rotation of
manual operating handle. If possible, select a flat area of deck.
To Next Page
