Lewmar V1 User Manual

4

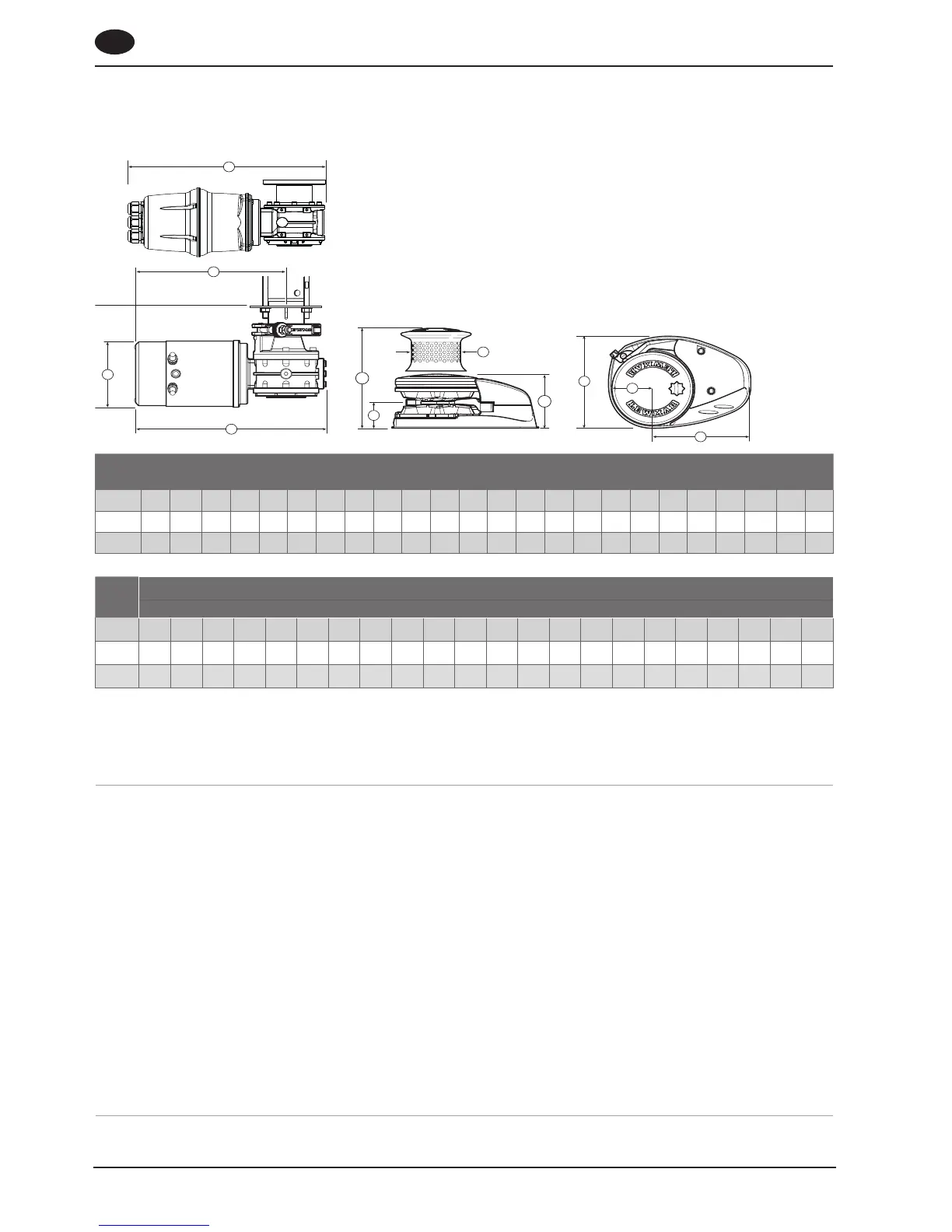

A
E
H2
K
J
H1
B
G
I
C
F
D
IP68
MODEL
A B C D E F G H1 H2 I J K
MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN
V1
42
11¹/₁₆
- - 161
6⁵/₁₆
348 13¾ 157
6³/₁₆
70 2¾ 237 9⅛ 92 3⅝ - - 114 4¼ 310
12³/₁₆
173
6¹³/₁₆
V2
42
11¹/₁₆
75 3 161
6⁵/₁₆
348 13¾ 157
6³/₁₆
70 2¾ 237 9⅛ 92 3⅝ 168 6⅝ 114 4¼ 310
12³/₁₆
173
6³/₁₆
V3
42
11¹/₁₆
75 3 161
6⁵/₁₆
348 13¾ 157
6³/₁₆
70 2¾ 237 9⅛ 92 3⅝ 168 6⅝ 114 4¼ 315 12⅜ 173
6³/₁₆
MODEL
A B C D E F G1 G2 H I J
MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN MM IN
V4
51 2 91
2 ⁷/₁₆
188
7 ⁷/₁₆
185 7¼ 89 3½ 277 10⅞ 107 4¼ 215
8⁷/₁₆
112
4 ⁷/₁₆
366
14⁷/₁₆
156
7⁵/₁₆
V5
51 2 91
2 ⁷/₁₆
188
7 ⁷/₁₆
185 7¼ 89 3 ½ 289 11⅜ 107 4¼ 215
8⁷/₁₆
125
4¹⁵/₁₆
378 14⅞ 174 6⅞
V6
77
3 ¹/₃₂
105 4 ⅛ 212
8 ¹¹/₃₂
326 12⅞ 82
3⁷/₃₂
366 14⅜ 145 5¾ 257 10⅛ 122
4¹³/₁₆
484 19 193 7⅝
GB
4. Installation
4.2 Accessories
Use only genuine Lewmar parts and accessories to ensure top performance and eliminate the risk of voiding
your warranty. For replacement parts, please visit your dealer or www.lewmar.com
4.1 Basic requirements
Each installation requires the following tools:
V1-3
 10 mm (
3
/
8
”) Drill
 14 mm (
9
/
16
”) Drill
 75 mm (3”) Hole Saw
V4-5
 12 mm (
7
/
16
”) Drill
 77 & 90 mm (3” & 4
1
/
2
”) Hole
Saw
V6
 5 mm (
3
/
16
”) Drill
 12 mm (
7
/
16
”) Drill
 115 mm (4
1
/
2
”) Hole Saw
Wiring Installation
 Crimping Pliers / Wire Stripper
 Suitable electrical cable and crimp terminals
Windlass Installation
An appropriate marine sealant and the following:
3. Specifications

Lewmar V1 Specifications

General

Brand	Lewmar
Model	V1
Category	Marine Equipment
Language	English
