3-16 Service Manual
5025-2xx, 4xx

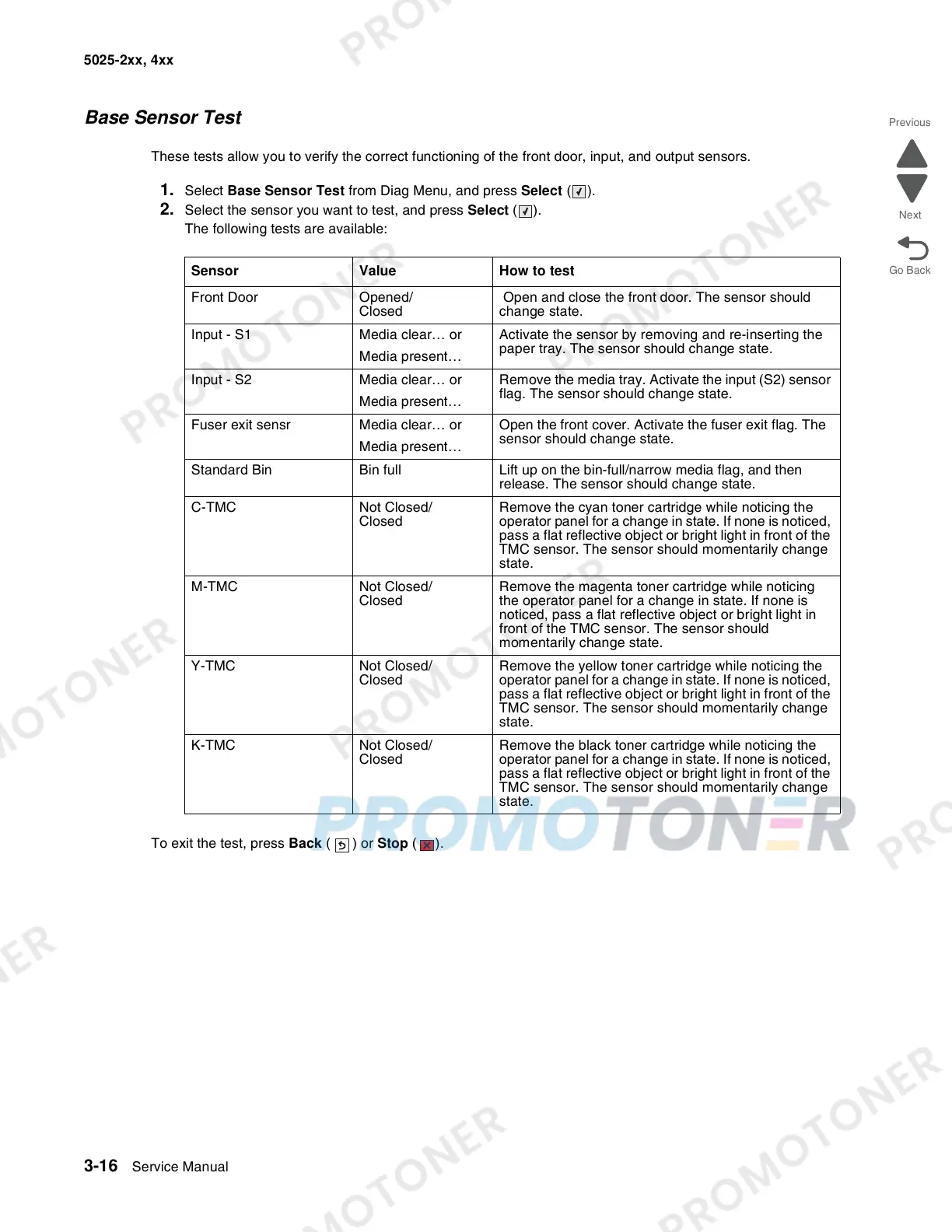

Base Sensor Test
These tests allow you to verify the correct functioning of the front door, input, and output sensors.
1. Select Base Sensor Test from Diag Menu, and press Select ().
2. Select the sensor you want to test, and press Select ().
The following tests are available:
To exit the test, press Back () or Stop ().
Sensor Value How to test
Front Door Opened/
Closed
Open and close the front door. The sensor should
change state.
Input - S1 Media clear… or
Media present…
Activate the sensor by removing and re-inserting the
paper tray. The sensor should change state.
Input - S2 Media clear… or
Media present…
Remove the media tray. Activate the input (S2) sensor
flag. The sensor should change state.
Fuser exit sensr Media clear… or
Media present…
Open the front cover. Activate the fuser exit flag. The
sensor should change state.
Standard Bin Bin full Lift up on the bin-full/narrow media flag, and then
release. The sensor should change state.
C-TMC Not Closed/
Closed
Remove the cyan toner cartridge while noticing the
operator panel for a change in state. If none is noticed,
pass a flat reflective object or bright light in front of the
TMC sensor. The sensor should momentarily change
state.
M-TMC Not Closed/
Closed
Remove the magenta toner cartridge while noticing
the operator panel for a change in state. If none is
noticed, pass a flat reflective object or bright light in
front of the TMC sensor. The sensor should
momentarily change state.
Y-TMC Not Closed/
Closed
Remove the yellow toner cartridge while noticing the
operator panel for a change in state. If none is noticed,
pass a flat reflective object or bright light in front of the
TMC sensor. The sensor should momentarily change
state.
K-TMC Not Closed/
Closed
Remove the black toner cartridge while noticing the
operator panel for a change in state. If none is noticed,
pass a flat reflective object or bright light in front of the
TMC sensor. The sensor should momentarily change
state.
