Diagnostic aids 3-21
5025-2xx, 4xx

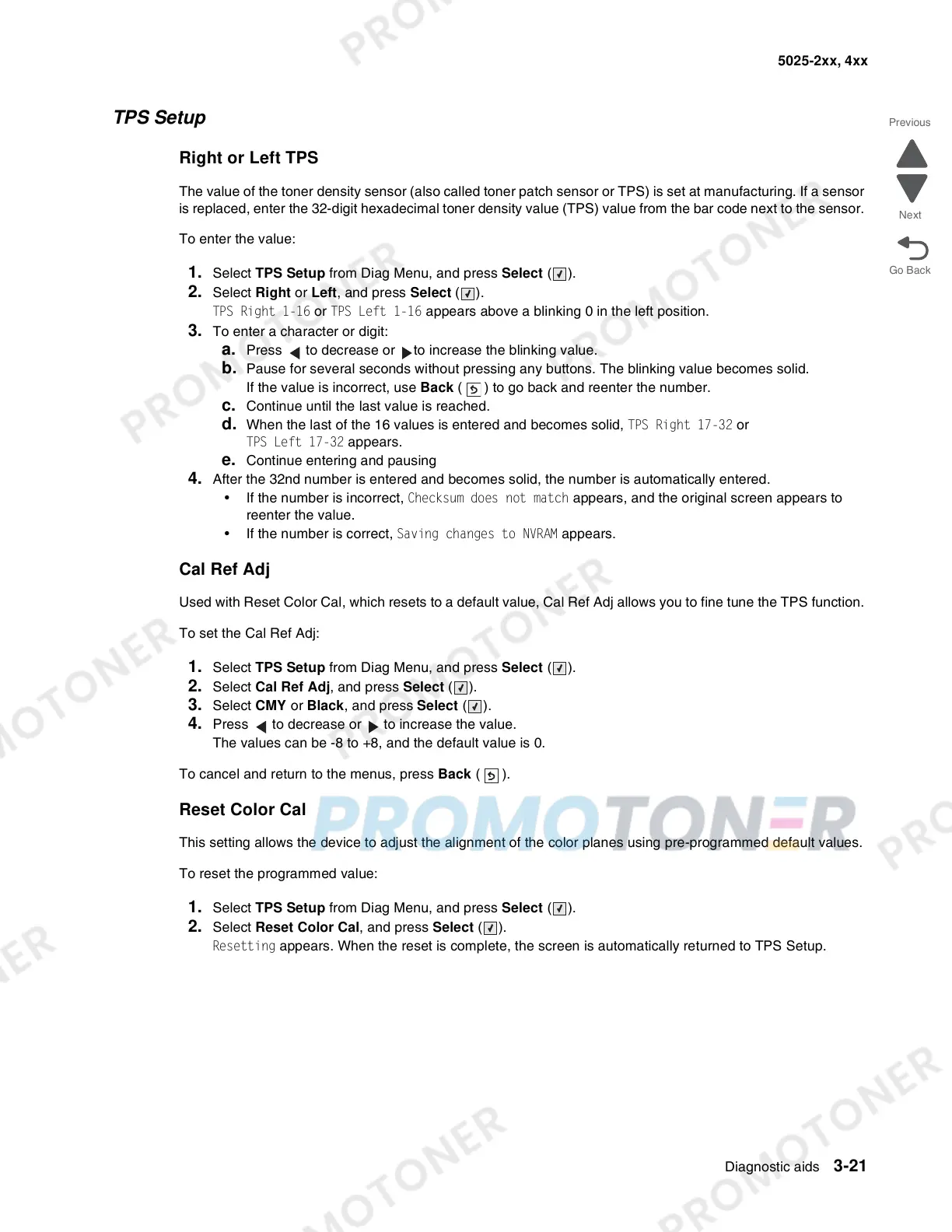

TPS Setup
Right or Left TPS
The value of the toner density sensor (also called toner patch sensor or TPS) is set at manufacturing. If a sensor
is replaced, enter the 32-digit hexadecimal toner density value (TPS) value from the bar code next to the sensor.
To enter the value:
1. Select TPS Setup from Diag Menu, and press Select ().
2. Select Right or Left, and press Select ().
TPS Right 1-16 or TPS Left 1-16 appears above a blinking 0 in the left position.
3. To enter a character or digit:
a. Press to decrease or to increase the blinking value.
b. Pause for several seconds without pressing any buttons. The blinking value becomes solid.
If the value is incorrect, use Back ( ) to go back and reenter the number.
c. Continue until the last value is reached.
d. When the last of the 16 values is entered and becomes solid, TPS Right 17-32 or
TPS Left 17-32 appears.
e. Continue entering and pausing
4. After the 32nd number is entered and becomes solid, the number is automatically entered.
• If the number is incorrect, Checksum does not match appears, and the original screen appears to
reenter the value.
• If the number is correct, Saving changes to NVRAM appears.
Cal Ref Adj
Used with Reset Color Cal, which resets to a default value, Cal Ref Adj allows you to fine tune the TPS function.
To set the Cal Ref Adj:
1. Select TPS Setup from Diag Menu, and press Select ().
2. Select Cal Ref Adj, and press Select ().
3. Select CMY or Black, and press Select ().
4. Press to decrease or to increase the value.
The values can be -8 to +8, and the default value is 0.
To cancel and return to the menus, press Back ().
Reset Color Cal
This setting allows the device to adjust the alignment of the color planes using pre-programmed default values.
To reset the programmed value:
1. Select TPS Setup from Diag Menu, and press Select ().
2. Select Reset Color Cal, and press Select ().
Resetting appears. When the reset is complete, the screen is automatically returned to TPS Setup.
